• Model NO.：GJYXCH-2B
• Certification：RoHS, CE, ISO9001
• Brand：OEM
• Sheath Material：LSZH,PVC
• Model：FTTH
• Jacket Material：LSZH
• Strength Member：Steel or FRP
• Transport Package：Drums
• Trademark：huaxin
• Origin：Zibo, China
• HS Code：8544700000
• Production Capacity：3000km,Week

Basic Info.

Model NO. GJYXCH-2B Certification RoHS, CE, ISO9001 Brand OEM Sheath Material LSZH,PVC Model FTTH Jacket Material LSZH Strength Member Steel or FRP Transport Package Drums Trademark huaxin Origin Zibo, China HS Code 8544700000 Production Capacity 3000km/Week

Product Description

Shandong HuaXin Cable Co.,Ltd. has been committed to the photoelectric communication for more than a decade, which is fiber optic cable, coaxial cable, parvicostellae, optical fiber patch cord, passive components  professional production processing company. Huaxin has established its own quality management system according to ISO9001:2008 with its products obtaining the network-accessing certificate of SARFT,Tell Certificate,etc. Our products sell well all over the country provinces and cities of radio, film and television, telecommunications, mobile, unicom and other network company, as well as export to Europe, America, Japan and South Korea, southeast Asia and other markets. Welcome all friends to visit, guidance and business cooperation.

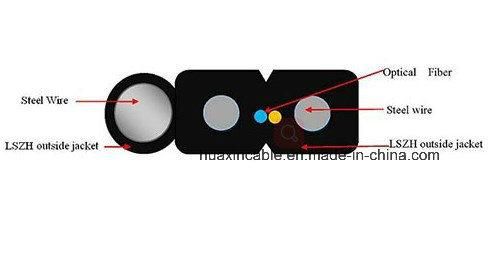

The optical feber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP)are placed at the two sides.

Then the cable is completed with a black or color LSZH sheath.

Characteristic:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

Two parallel FRP strength member ensure good performance of crush resistance to protect the fiber;

Simple structure,light weight and high practicability;

Novel flute design,easily strip and splice,simplify the installation and maintenance

Low smoke,zero halogen and flame retardant sheath.


Optical Fiber Technical Date:

ITEMS	UNITS	Fiber SPECIFICATION
Fiber Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100

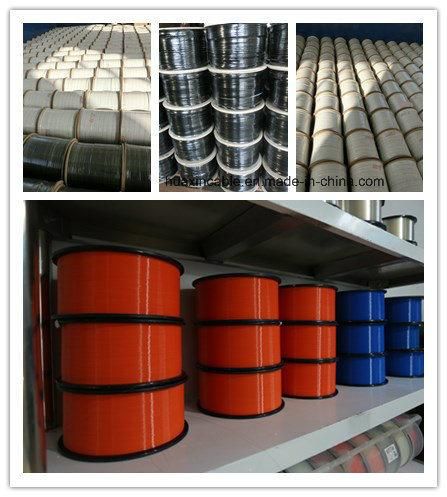

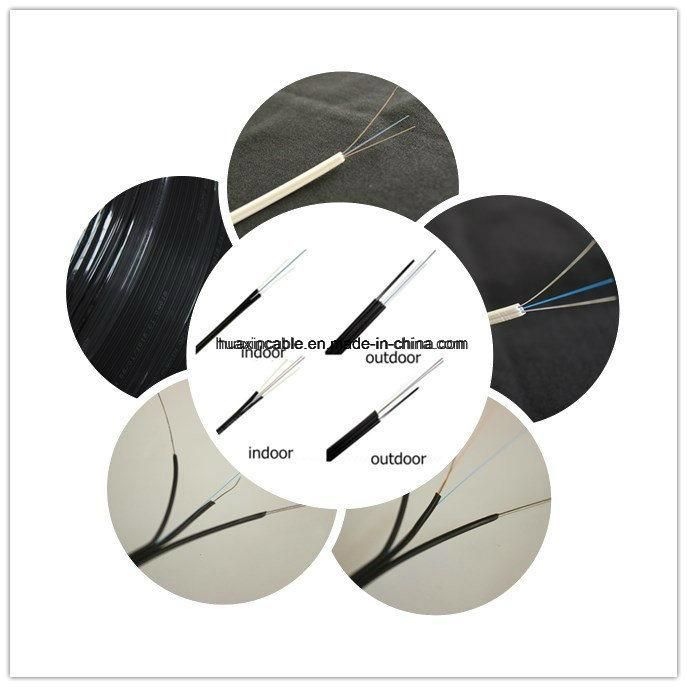

Product show:




certifications




OUR EXHIBITION&CUSTOMERS
