• Model NO.：2*2.5+2.5
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, UL, CCC, RoHS, SAA
• Brand：QIFAN
• Color：Brown, White, Red. Green
• QC：200 Engineer
• Warranty：25 Years

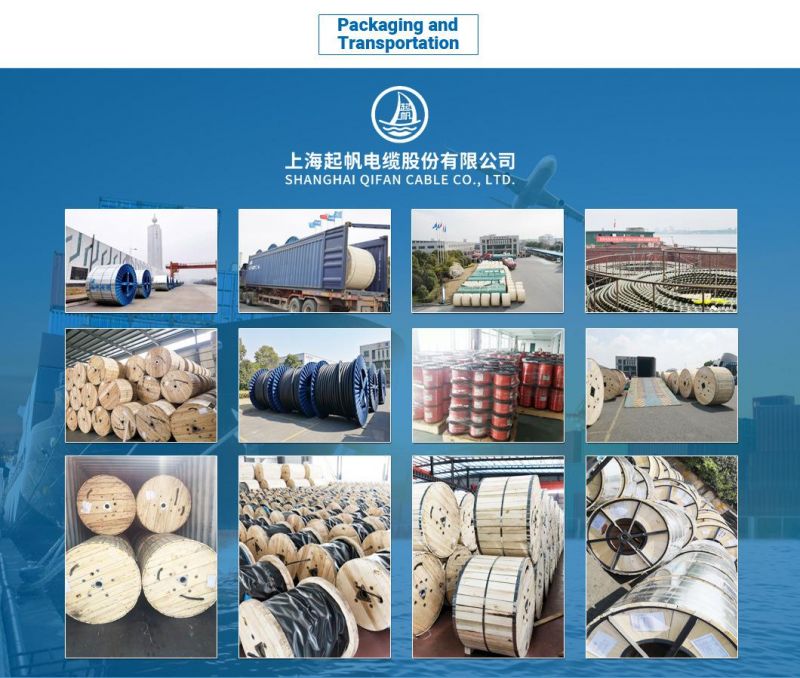

• Transport Package：Reel or Drum
• Specification：100m one reel
• Trademark：Qifan
• Origin：China
• HS Code：8544492100
• Production Capacity：500000km Per Month

Basic Info.

Model NO. 2*2.5+2.5 Material Shape Flat Wire Range of Application Flame Retardant Certification ISO9001, UL, CCC, RoHS, SAA Brand QIFAN Color Brown, White, Red. Green QC 200 Engineer Warranty 25 Years Transport Package Reel or Drum Specification 100m one reel Trademark Qifan Origin China HS Code 8544492100 Production Capacity 500000km Per Month

Product Description

 Electrical Building Wire TPS AS/NZS 3G2.5 Wire

Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

Construction:
1.    Conductor - Plain annealed class 5 flexible copper
2.    Fire Resistant layer - Mica Tape
3.    Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4.    Filler - Flame retardant material
5.    Binder Tape - Low smoke halogen-free flame retardant tape
6.    Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)

Cross Section:
2 core: 1.5~400mm2
3 core: 1.5~400mm2
4 core: 1.5~400mm2
5 core: 1.5~400mm2
2 core + earth: 1.5~400mm2
3 core + earth: 1.5~400mm2
4 core + earth: 1.5~400mm2

Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC

Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Color:
Insulation:

2 core: Red, Black
3 core: Red, White, Blue
4 core: Red, White, Blue, Black
5 core: Red, White, Blue, Black, Y/G
2 core + earth: Red, Black, Y/G
3 core + earth: Red, White, Blue, Y/G
4 core + earth: Red, White, Blue, Black, Y/G


Sheath: Red or according to customer requirements

Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)

Other sizes can also be produced as you required.

Size	Conductor Strands	Insulation Thickness
2x1.5mm2	7/0.52mm	0.6mm
2x2.5mm2	7/0.68mm	0.7mm
2x1.5mm2+1.5mm2	7/0.52mm	0.6mm
2x2.5mm2+2.5mm2	7/0.68mm	0.7mm
2x4mm2+2.5mm2	7/0.85mm+7/0.68mm	0.8mm
2x6mm2+2.5mm2	7/1.04mm+7/0.68mm	0.8m

------Our Feature------

1. Imported equipment with experienced technical team

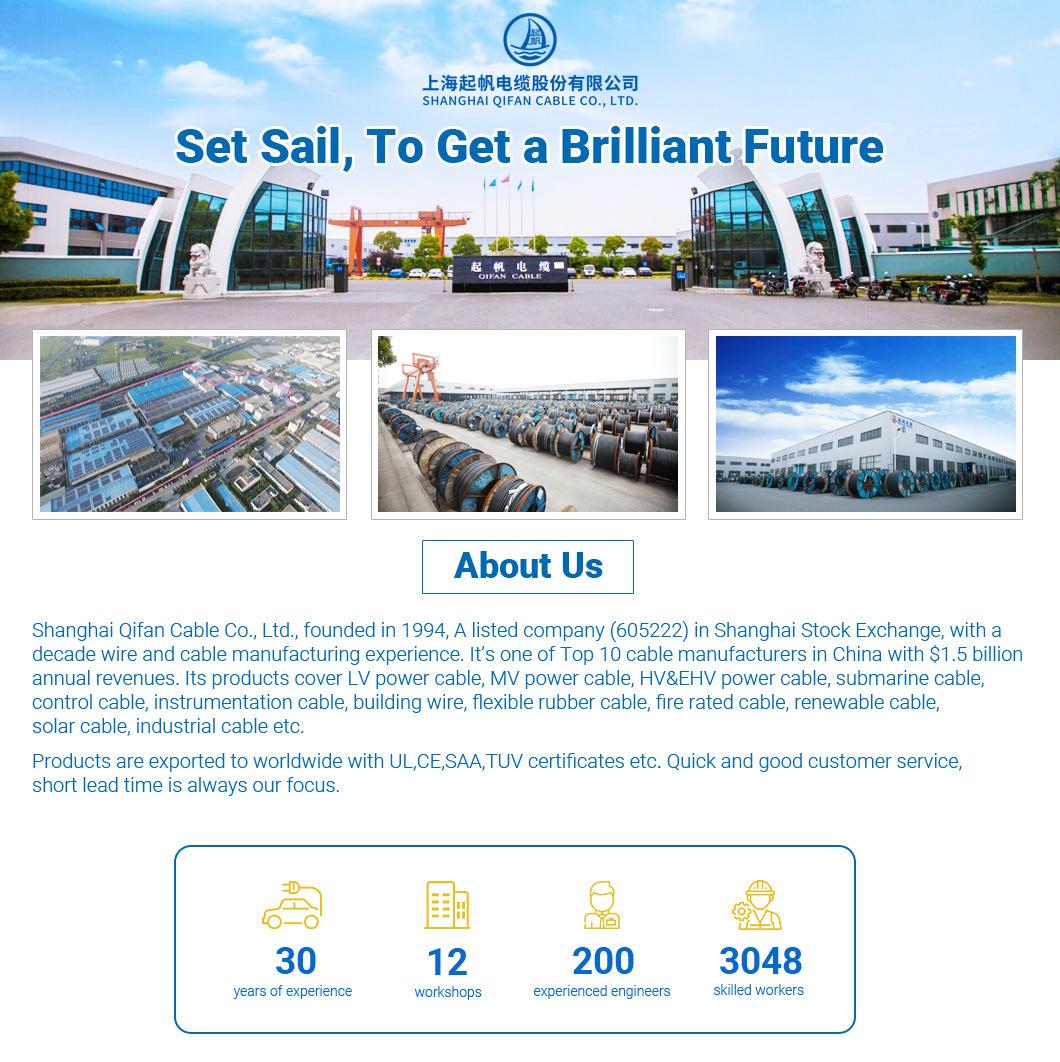

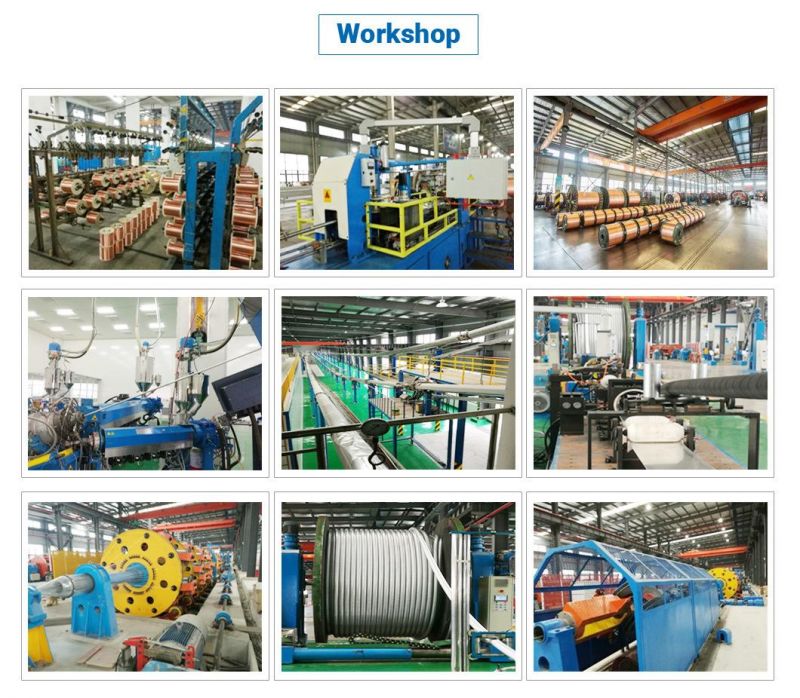

   The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
2. Complete certification system
   Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3. Perfect Production system
   Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4. Perfect Sales service system
   Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
