Siamese High Quality Factory Supply 75ohm Coaxial Cable Camera Cable CCTV Cable Rg59 Communication Cable with Power Cable OEM
Hangzhou Xingfa Technology Co., Ltd.- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
Base Info
- Model NO.:RG59 SIAMESE Cable
- Type:Coaxial Cable
- Material Shape:Flat Wire
- Conductor Type:Stranded
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, ETL
- Model:Rg59 Coaxial Cable
- Brand:Xingfa,OEM
- Inner Conductor:CCS, CCA, Cu
- Braid Shied Material:Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
- Shield:Al Foil,Bonded Al Foil
- Jacket:Solid PVC, Folid PVC
- Jacket Color:Black or Per Customers′ Special Requirement
- Impedance:75± 2ohm
- Place of Origin:Zhejiang, China (Mainland)
- OEM:Yes
- Certificates:ISO9001,CE,ETL,RoHS,Reach,BV,SGS
- Transport Package:Carton Box, Pull out Box, Pallet Available
- Specification:100m,roll, 200m,roll, 305m,roll
- Trademark:Xingfa or OEM
- Origin:Hagnzhou, China
- HS Code:854420000
- Production Capacity:18000kilometer,Month
- Package size per unit product:35.00cm * 35.00cm * 31.00cm
- Gross weight per unit product:23.000kg
Description
[@68o F. (20o C.)]Impedance 75±3 Ohm Capacitance 16.0pF. /Ft. Nom. Velocity of Propagation 66.7% Return Loss 20dB min (5-860MHz) 15dB min(860-2500MHz). Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m) 5 0.86 2.82 55 1.95 6.39 187 3.60 11.81 250 4.00 13.11 300 4.45 14.6 350 4.64 15.21 400 4.88 16.00 450 5.40 17.72 500 5.60 18.36 550 5.90 19.34 600 6.20 20.34 750 6.97 22.87 865 7.52 24.67 1000 8.12 26.64
One-Jacket Siamese cable consists of two cables: 95 % coverage RG59U video cable and 2 conductor 18 gauge electrical cable all in one PVC jacketed cables. This type cable is great for use with CCTV equipment. All the wires you need to connect your camera are with in one cable. Therefore eliminating the need for two separate cables for the power and video. This cable is easy to run and it will look more esthetic when the installation is complete. It will also save you a considerable amount of time during installation.

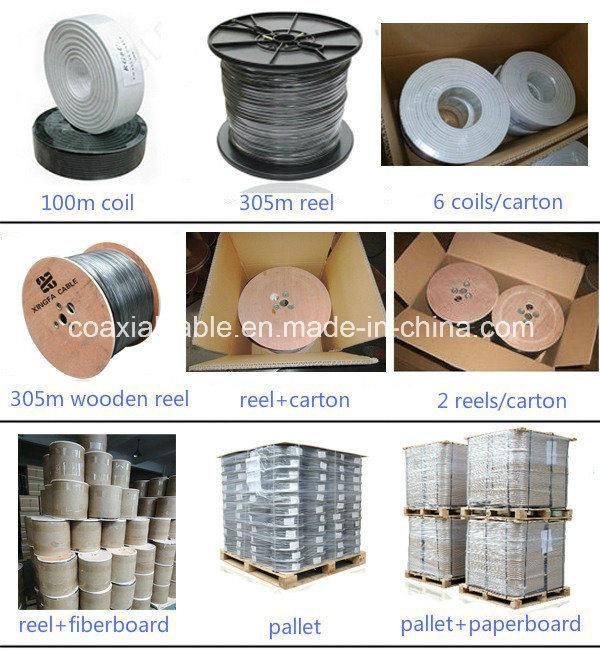

2.Packing:
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

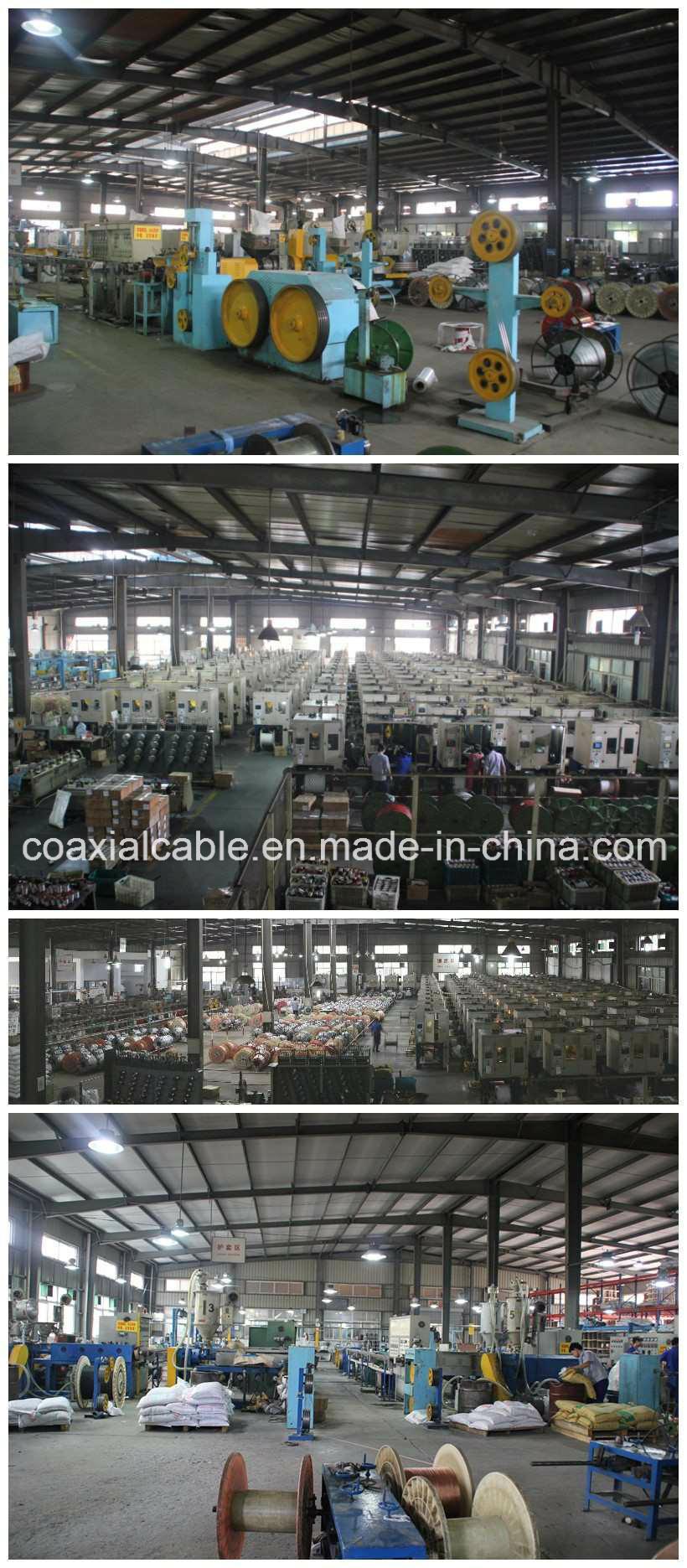

This is our factory pictures below.
4.Other Types
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1) RG59 Coaxial Cable 75ohm Dual shield(standard)
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket
2) RG59 Coaxial Cable 75ohm Tri-shielded
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket
3) RG59 Coaxial Cable 75ohm Quad Shield
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket
4) RG59 Coaxial Cable 75ohm With Messenger
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger
5) Customers'specifications are welcomed
