UL83 Listed Copper Conductor PVC Nylon Building Electric Thhn Thwn Wire
Shanghai QIFAN Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：Nylon
- Insulation Material：PVC
Base Info
- Model NO.：THHN THWN
- Material Shape：Round Wire
- Range of Application：Construction
- Certification：ISO9001, CE, UL, CCC, RoHS
- Brand：QIFAN
- Standard：UL 83
- QC：266
- Staff No.：3800

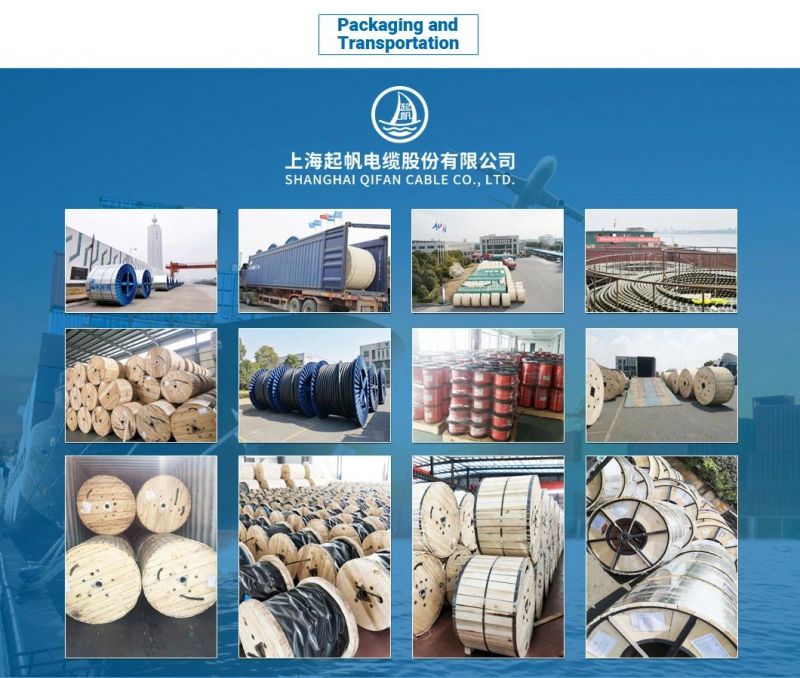

- Transport Package：Roll Drum
- Specification：14AWG-1000MCM
- Trademark：QIFAN
- Origin：China
- HS Code：8544492100
- Production Capacity：50000km,Month
Description
Approx.
Weight per
1000' (lbs.)Allowable
Ampacities Size
AWG or kcmil Number
of Strands 90°C 14 7 15 4 109 16 15 12 7 15 4 128 24 20 10 7 20 4 161 38 30 8 7 30 5 213 63 55 6 7 30 5 249 95 75 4 7 40 6 318 152 100 3 7 40 6 346 189 115 2 2 40 6 378 234 130 1 19 50 7 435 299 145 1/0 19 50 7 474 372 170 2/0 19 50 7 518 462 195 3/0 19 50 7 568 575 225 4/0 19 50 7 624 718 260 250 37 60 8 694 851 290 300 37 60 8 747 1012 320 350 37 60 8 797 1174 350 400 37 60 8 842 1334 380 500 37 60 8 926 1655 430 600 61 70 9 1024 1987 475 750 61 70 9 1126 2464 535 1000 61 70 9 1275 3257 615
Weight per
1000' (lbs.)
Ampacities
AWG or kcmil
of Strands
