GYXTW 53 Fiber Optic Cable 2-12 Core Single Mode Armored Fiber Optical Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Communication, Outdoor Cabling (Ducts, Conduits or Aerial Pipe)
- Type：Single-mode Fiber
- Connection Structure：No
- Material Shape：Round Wire
- Allowed Lateral Pressure：1000,3000 N,100mm
- Allowed Tensile Strength：1000,3000 N
Base Info
- Model NO.：GYXTW53
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Superlink ,OEM
- Sheath Material：PE
- Fiber Count：2-12 Core
- Strength Member：Steel Wire
- Loose Tube：PBT
- Amored：PSP
- Transport Package：Wooden Drum , Pallet
- Specification：Outdoor optical cable GYXTW 53
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：85447000
- Production Capacity：80000km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

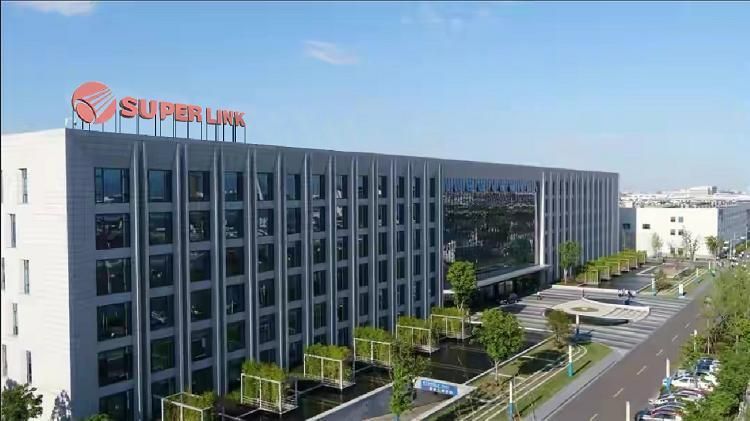

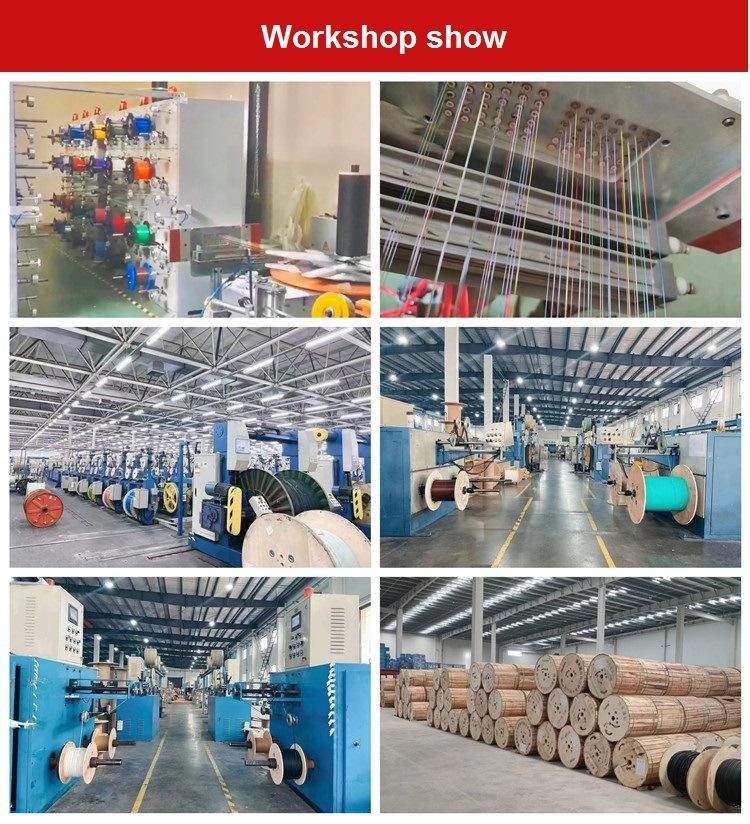

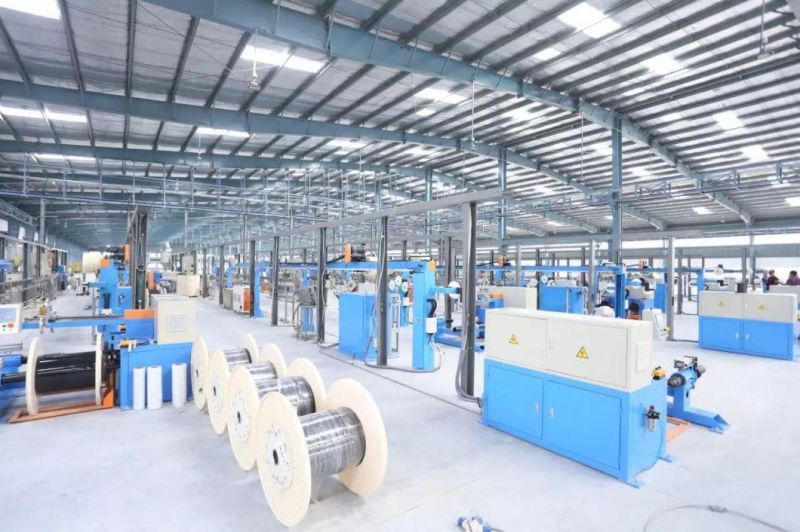

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
Description:

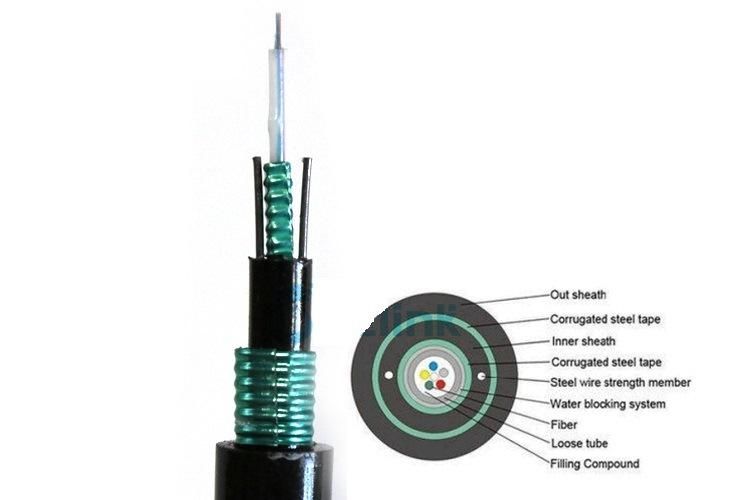

The GYXTW53 armoured loose tube fiber optic Cable, constructed with a central tube filled with water blocking jelly giving it excellent water and moisture resistance. Two corrugated steel armouring and two steel wires strengthening with in the inner PE sheath and an outer PE sheath give this cable excellent tensilestrength, mechanical and environmental protection.They have small diameter, light weight and installation friendly since they come in a single tube with loose tube fiber count up to 12 fibers. Their compact construction protects the loose tube from shrinking, the double armour makes it crush, rodent and impact resistance, the outer PE sheath gives it ultraviolet protection.Technical parameters
| Cable Type | Fiber Count | Cable Diameter Mm | Cable Weight Kg/km | Tensile Strength Long/short term N | Crush Resistance Long/short term N/100mm | Bending Radius Static/dynamic mm |
| GYXTW53-2~12 | 2~12 | 12.0 | 165 | 1000/3000 | 1000/3000 | 10D/20D |
Features:
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length
Application:
1. Adopted to Outdoor distribution
2. suitable for outdoor distribution through ducts, conduits or aerial pipe lines.
3. Long distance and local area network communication
4. Used outdoor cabling
1. What's your company MOQ?- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.
5. What is your packaging?

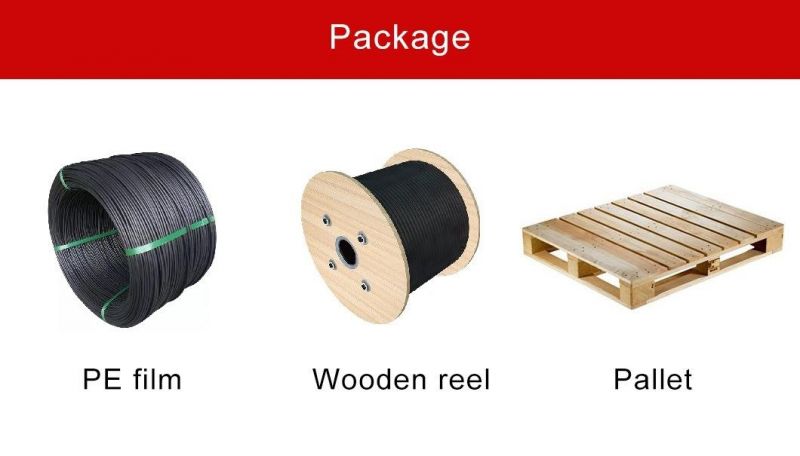

- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
