Outdoor Optical Fiber Cable GYXTW 12 Core G652D Fiber Optic Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Communication, Outdoor Cabling (Ducts, Conduits or Aerial Pipe)
- Type：Single-mode Fiber
- Connection Structure：No
- Material Shape：Round Wire
- Allowed Lateral Pressure：1000,3000 N,100mm
- Allowed Tensile Strength：1000,3000 N
Base Info
- Model NO.：GYXTW
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Superlink ,OEM
- Sheath Material：PE
- Fiber Count：2-48 Core
- Strength Member：Steel Wire
- Loose Tube：PBT
- Amored：PSP
- Transport Package：Wooden Drum , Pallet
- Specification：Outdoor optical cable GYXTW
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：85447000
- Production Capacity：80000km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

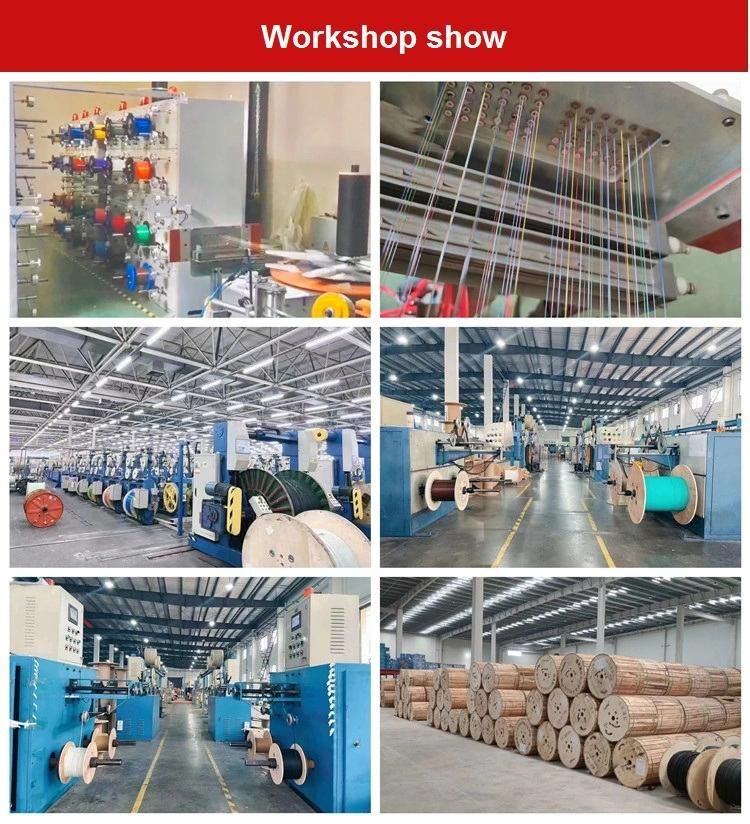

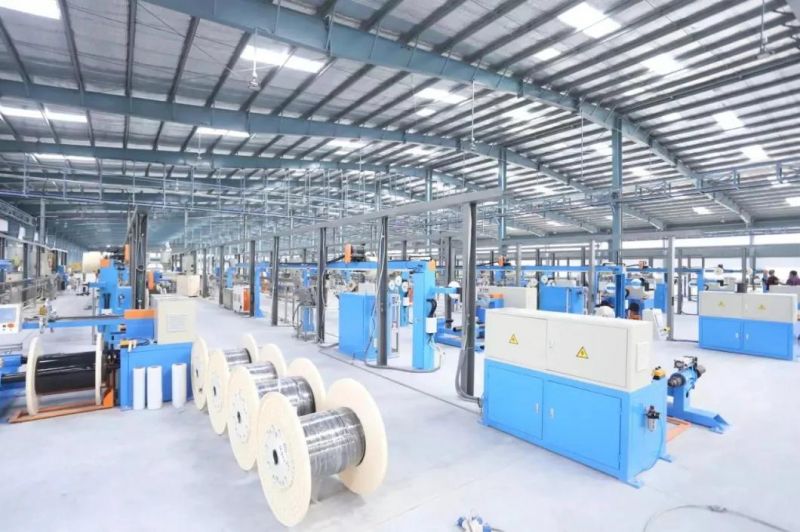

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
Description:

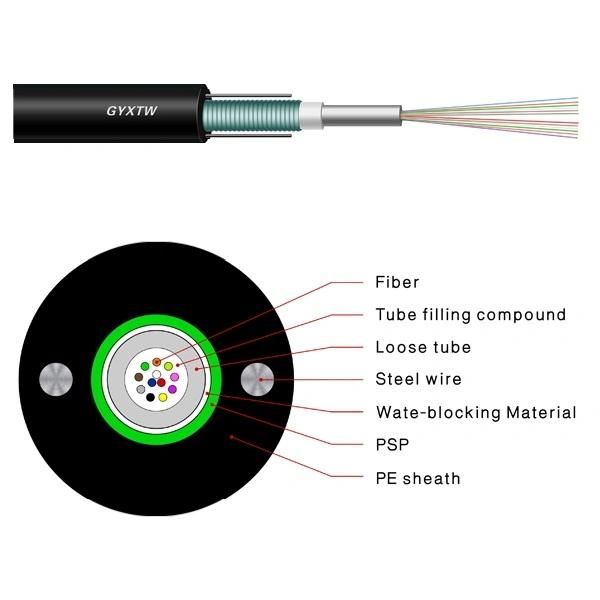

The fibers,200/250um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE)sheath.Technical parameters
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| GYXTW-2~12 | 2~12 | 9.0 | 85 | 600/1000 | 500/1500 | 15D/30D |
| GYXTW-14~24 | 14~24 | 9.0 | 85 | 600/3000 | 1000/3000 | 15D/30D |
| GYXTW-2~12 | 2~12 | 10.0 | 105 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-14~24 | 14~24 | 10.0 | 105 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 15D/30D |
| GYXTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 15D/30D |
Features:
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length
Application:1. Adopted to Outdoor distribution
2. Long distance and local area network communication
3. Used outdoor cabling
Standard:
GYXTW cable complies with Standard YD/T 769-2010
1. What's your company MOQ?- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.

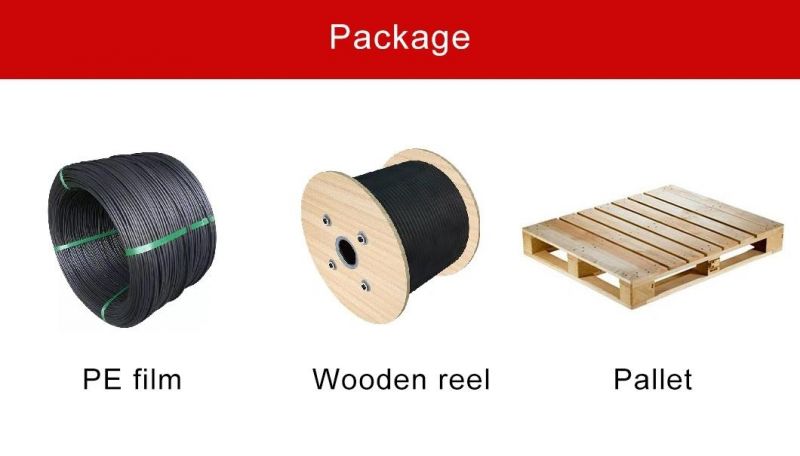

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
