PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable

People's Cable Group Co., Ltd.
  • Application:Underground, Industrial, Power Station
  • Voltage:Low and Medium Voltage Cable
  • Current:DC & AC
  • Insulation Material:XLPE
  • Sheath Material:PVC
  • Material Shape:Round Wire

Base Info

  • Model NO.:PVDF cable
  • Wire Core Material:Bare Copper Wire
  • Certification:CCC, BV SGS TUV
  • Model:Swa Cable
  • Brand:Rmjt
  • Insulation Color:Red, Black, Yellow, Blue, Green, Grey and So on
  • Standard:IEC, UL, BS, VDE, AS,NZS or According to You.
  • Conductor Class:Calss 1, Class2, Class 5, Class6
  • Transport Package:Drum
  • Specification:6-630mm2
  • Trademark:RMJT
  • Origin:China
  • HS Code:8544492100
  • Production Capacity:1000000km Per Year

Description

temperature0 - 8 degree centigradePH1- 8CLup to 31000ppmPH(Chlorine Gas, Offshore)1-8Water Velocity Offshoreup to 1.5m per second
Design and Test of this cathodic protect electrical cable :
ICEA- n95-658, IEC 60228
Voltage Rating: 600-1000 V
Construction of PC wire and Cable
1. standard circulur of shaped copper conductor
2. PVDF core insulation , HMWPE outer sheath

Parameters and specifications for

top quality PVDF/ HMWPE impressed current cathodic protection power cable in UAE
 cable sizePVDF ThicknessHMWPE ThicknessNo., of strands(min)1x100.511.6571x160.511.657 or 191x250.511.65191x350.511.65191x700.761.6519
Insulation specifications of CP wire and cable
 TypespecificationPVDFtensile break strength4500PSI minbreak Elongation50% minflexural strength8600 PSI minresistivity2x 1014 Ohm-cm mindielectric constant8.0min at 100HZHMWPEcolorblack, red or as per customizeddensity0.94g / cm3 minASTM D1248 Type3 Class C, IEC 60502-1 PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection CablePVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable
About us
PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable

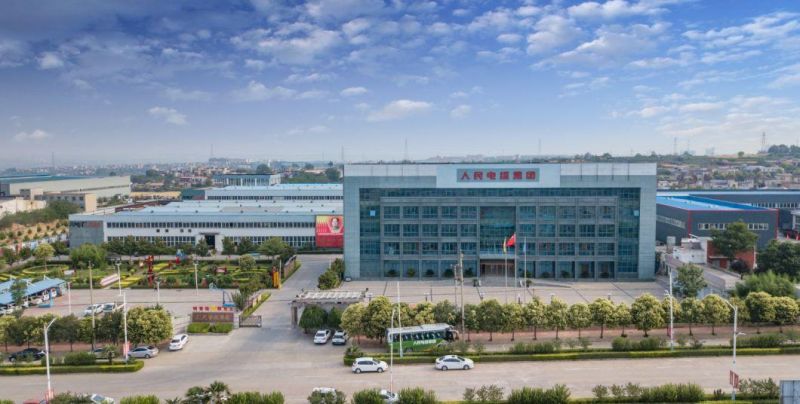

People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.

PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.

PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable
Certificate

People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.PVDF Cable PVDF Insulation Hmwpe Sheath Cathodic Protection Cable
FAQ


Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we

will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.

Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
