• Model NO.：FTTH cable
• Sheath Material：LSZH
• Product Name：Drop Cable
• Messenger Material：Steel Wire
• Other Messenger Material：FRP, Kfrp
• Jacket Material：Lszh
• Jacket Color：Black, White
• Installation Style：Indoor & Outdoor Aerial Drop Cable
• Optical Fiber Type：G.657A
• Fiber Color：Blue, Orange, Green, Brown
• Outer Diameter of Cable：2.0mm*5.0mm
• Diameter of Messenger Wire：1.0mm
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE drop cable or OEM
• Origin：China (Mainland)
• HS Code：8544700000
• Production Capacity：200km,Day

Basic Info.

Model NO. FTTH cable Sheath Material LSZH Product Name Drop Cable Messenger Material Steel Wire Other Messenger Material FRP, Kfrp Jacket Material Lszh Jacket Color Black, White Installation Style Indoor & Outdoor Aerial Drop Cable Optical Fiber Type G.657A Fiber Color Blue, Orange, Green, Brown Outer Diameter of Cable 2.0mm*5.0mm Diameter of Messenger Wire 1.0mm Transport Package Wooden Drum Specification SGS ROHS REACH ISO Trademark TW-SCIE drop cable or OEM Origin China (Mainland) HS Code 8544700000 Production Capacity 200km/Day

Product Description

2 core FTTH indoor drop optical fiber cable for access network,GJXFH

Your partner of FTTH project.

Recommended laying methods:
Drop Cable used in access networks or as access cable from outdoor to indoor in customer premises networks

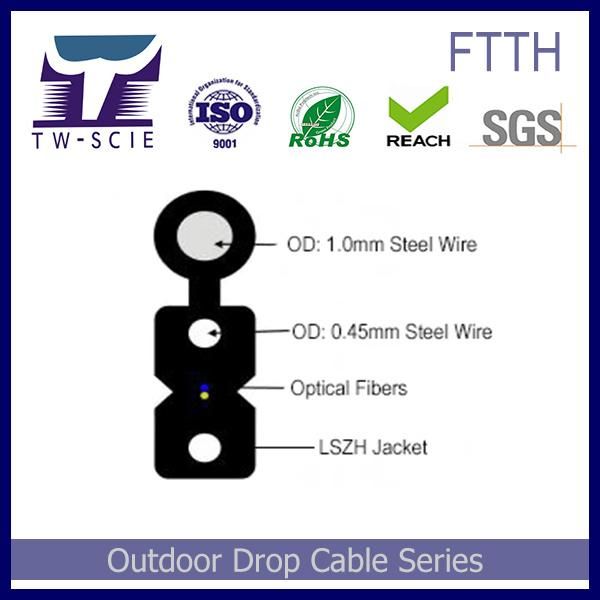

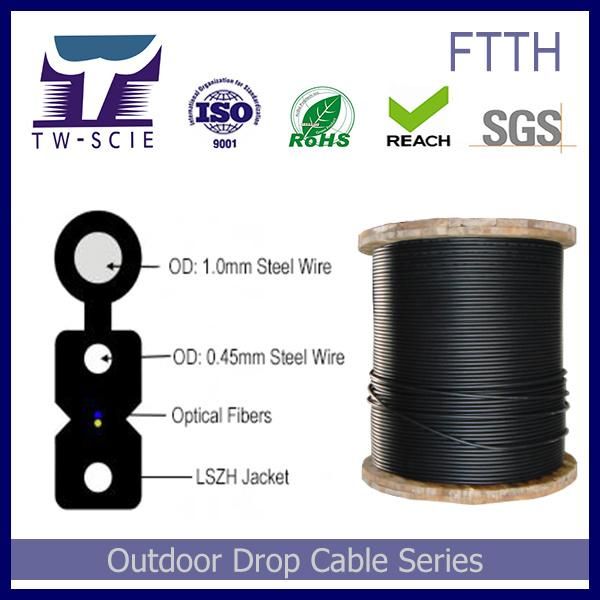

Drop Cable Structure characters:

Good mechanical and environmental characteristics
Drop Cable 's Flame retardant characteristics meet the requirements of relevant standard
The mechanical characteristics meet the requirements of relevant standard
Soft, flexible, easy to lay and splice and with big capacity data transmission
Meets various requirements of market and clients



Drop Cable should be used
Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring

Drop Cable Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands

Drop Cable Customization
Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
Cable Size: Nominal fiber size, but also other agreed size
Delivery length: 1km or 2km, but also other agreed length
Other requirements: Other special requirements agreed

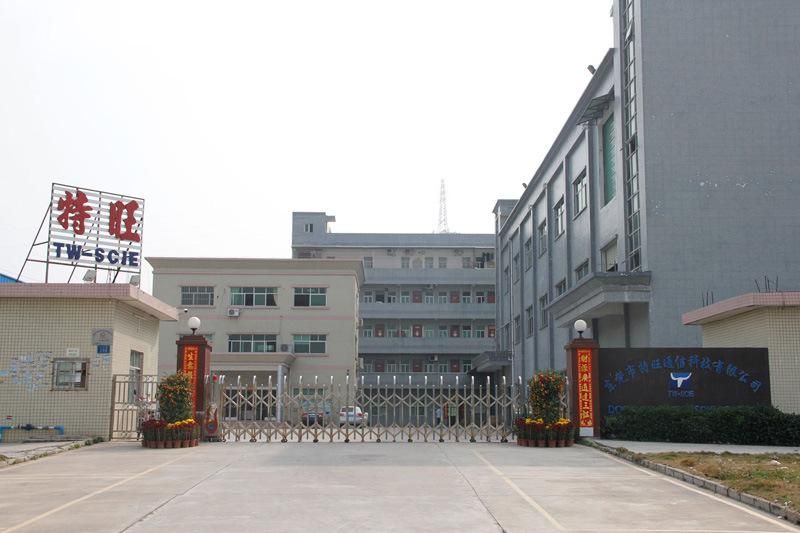

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:
Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

ITEMS	UNITS	SPECIFICATION
Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100
