Factory Price 12/24/36/72/144 Core Optic Fiber Cable GYFTY
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Sensor, Medicine, Probe, Glass Fiber
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYFTY fiber optic cable
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：OEM or Tw-Scie
- Sheath Material：LSZH, HDPE, MDPE
- Outer Sheath Color：Black
- Central Strangthen Material：FRP
- Cable Type：GYFTY
- Fiber Type：G652D
- Recommended Installation Methods：Aerial
- Loose Tube：PBT with Jelly
- Stranding Type：Sz
- Water-Blocking System：Filling Compound

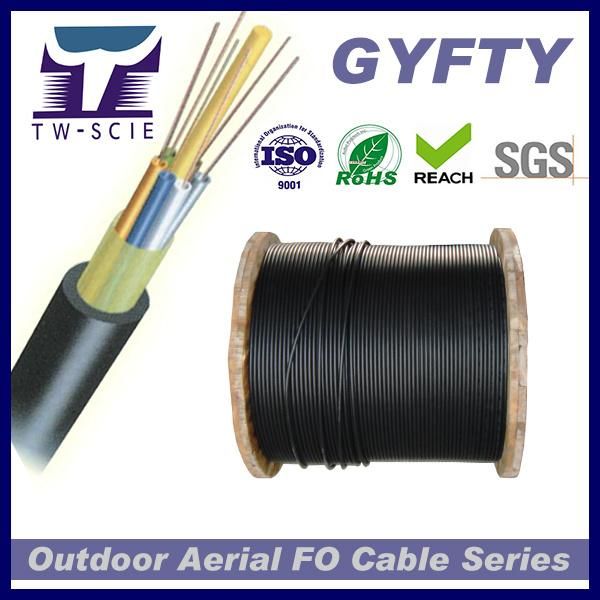

- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：200km,Day
Description

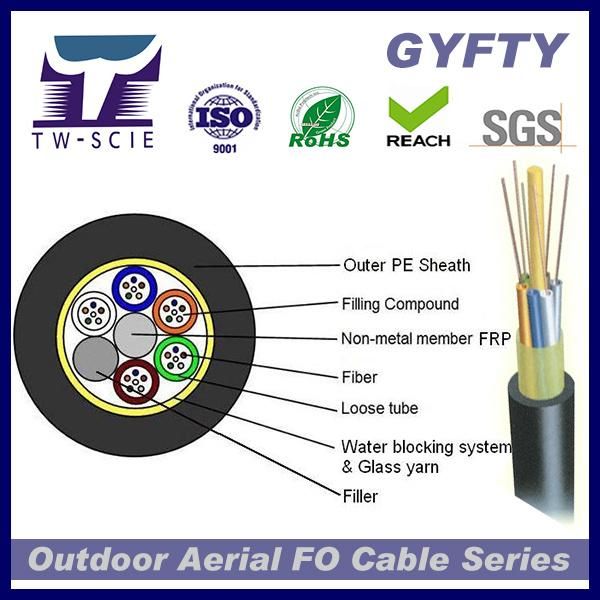

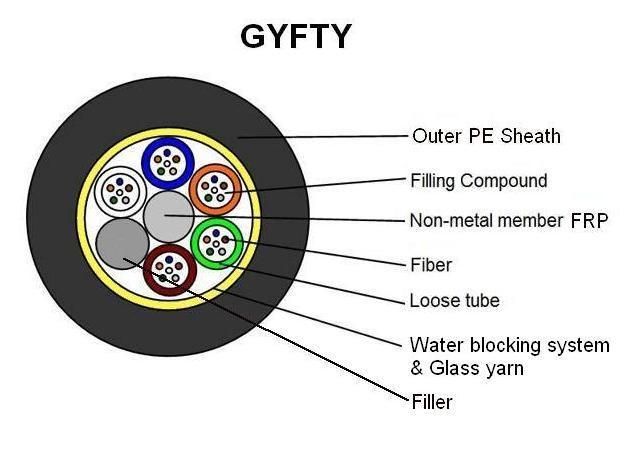

Cable Core
The loose tubes are stranded around the central strength member utilizing SZ. SZ stranding wraps the tubes in one direction for several turns, then in the other direction.
Central Strength Member
The central strength member is made of FRP. It provides both tensile and anti-buckling strength to the cable.
Loose Tube
Optical fibers are housed in jelly filled tube. The tube is manufactured with industry standard PBT. It is colored for easy identification according to the scheme shown above.
Water Blocking Material
Filling compound, the water blocking material between the loose tube and the sheath protect cable from water intrusion.
Outer Jacket
A black Medium density polyethylene jacket is extruded over the cable core and corrugated steel tape armor as the sheath.
Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer's requirements.
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
