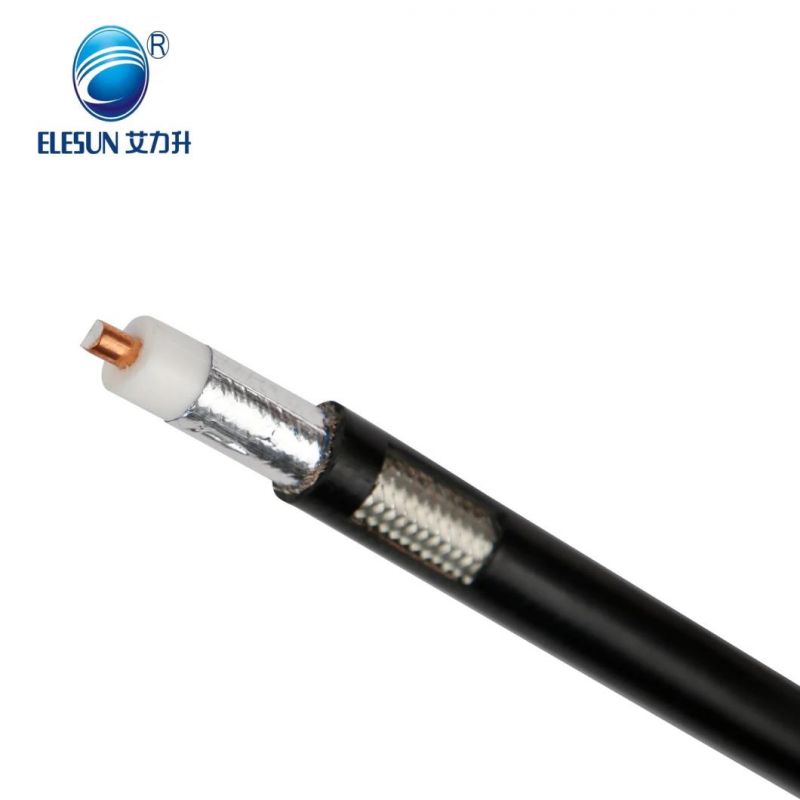

RF Coaxial Cable 8d-Fb 9d-Fb 10d-Fb 12D-Fb Low Loss 50ohm Bare Copper PE Insulation RF Coaxial Cable

Jiangsu Elesun Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：10d-Fb
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：10D-FB
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：10d-Fb
  • Brand：Elesun
  • Material of Inner Conductor：Bc (Bare Copper)
  • Structure of Inner Conductor：1,3.50mm
  • Material of Insulation：Fpe(Foam PE)
  • Diameter of Insulation：10.00mm
  • 1st Shielding：Aluminum Tape
  • Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
  • Structure of Braiding(2ND Shielding)：168,0.18mm
  • Material of Jacket：PVC, PE, LSZH,Fr-LSZH
  • Diameter of Jacket：13.0mm
  • Working Temp：-20ºC,70ºC
  • Impedance：50Ω±2
  • Voltage：3000V
  • Swr(0-2500MHz)：≤1.2
  • Nominal Weight(Kgs/Km)：250
  • Transport Package：250m,Roll,CTN
  • Specification：51*50.5*21cm
  • Trademark：ELESUN
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：10000m,Day

Description

RF Coaxial Cable 8d-Fb 9d-Fb 10d-Fb 12D-Fb Low Loss 50ohm Bare Copper PE Insulation RF Coaxial CableDescription:
. Conductor :Bare Copper
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White

Typical Application: 10D-FB  foam PE insulated coaxial cable specificationsMaterial of Inner ConductorBC (Bare Copper)Structure of Inner Conductor1/3.50mmMaterial of Insulation FPE(Foam PE)Diameter of Insulation10.00mm1st  ShieldingAluminum TapeMaterial of Braiding(2nd Shielding)TC (Tinned Copper), Structure of Braiding(2nd Shielding)168/0.18mmMaterial of Jacket PVC, PE, LSZH,FR-LSZHDiameter of Jacket13.0mmWorking temp-20ºC/70ºCImpedance50Ω±2Voltage3000VSWR(0-2500MHz)≤1.2Nominal Weight(KGS/KM)250
