Insulted Overhead Aerial Bundled Cable ABC Cable
People's Cable Group Co., Ltd.- Product Name：Insulted Overhead Aerial Bundled Cable ABC Cable
- OEM：Yes
- Standard：IEC, BS, DIN, ASTM, NFC
- Manufacturer：People′s Cable Group
- Voltage Type：Low Voltage, Medium Voltage
- Sample：Free
Base Info
- Model NO.：Aerial Bundled Cable
- Rated Voltage：0.6,1kv, 11kv, 22kv, 35kv
- Core：Single,Duplex , Triplex, Quadruplex
- Color：Black, Grey, Red or as Customed
- Advantage：Factory Supply
- Transport Package：Standard Export Wooden Reel or Coil
- Specification：10-150mm2
- Trademark：RMjT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：500000km,Year
Description
Phase ConductorBare Natural Weight Ampacity Size&No. of Wires Insulation Thickness Nominal Diameter Size&No.of Wire Rated Strength XLPE Al Total Bare OD mm mm mm kg kg/km kg/km kg/km A AAC Pekingese 6-Solid 1.14 4.1 6.4 6-7 255 20.8 72.9 94 78 Collie 6-7 1.14 4.6 6.9 6-7 255 23.8 72.9 97 78 Cocker 6-7 1.52 4.6 7.7 6-7 255 32.7 72.9 106 78 Dachshund 4-Solid 1.14 5.2 7.5 6-7 400 26.8 114.6 141 103 Spaniel 4-7 1.14 5.9 8.2 6-7 400 29.8 116.1 146 103 Doberman 2-7 1.14 7.4 9.7 2-7 612 38.7 184.5 223 136 Basset 1/0-7 1.52 9.3 12.4 1/0-7 903 64.0 294.7 359 182 AAAC Chihuahua 6-Solid 1.14 4.1 6.4 6-7 499 20.8 72.9 94 78 Vizsla 6-7 1.14 4.6 6.9 6-7 499 23.8 72.9 97 78 Harrier 4-Solid 1.14 5.2 7.5 4-7 798 26.8 116.1 143 103 Afghan 1/0-7 1.52 9.3 12.4 1/0-7 2023 64.0 296.1 360 182 Heeler 1/0-19 1.52 9.4 12.5 1/0-7 2023 64.0 296.1 360 182 ACSR Setter 6-Solid 1.14 4.1 6.4 6/6/01 540 20.8 72.9 94 78 Shepherd 6-7 1.14 4.6 6.9 6/6/01 540 23.8 72.9 97 78 Eskimo 4-Solid 1.14 5.2 7.5 4/6/01 844 26.8 114.6 141 103 Bloodhound 1/0-7 1.52 9.3 12.4 1/0-6/1 1987 64.0 294.7 359 182 Bull 1/0-19 1.52 9.4 12.5 1/0-6/1 1987 64.0 294.7 359 182 Phase Conductor Bare Natural Weight Ampacity Size&No. of Wires Insulation Thickness Nominal Diameter Size&No.of Wire Rated Strength XLPE Al Total Bare OD mm mm mm kg kg/km kg/km kg/km A AAC Halotis 6-Solid 1.14 4.115 6.4 6-7 255 42 110 152 78 Pike 6-7 0.76 4.67 6.2 6-7 255 31 112 143 78 Patella 6-7 1.14 4.67 7.0 6-7 255 48 112 159 78 Fusus 4-Solid 1.14 5.182 7.5 4-7 400 52 177 229 103 Oyster 4-7 1.14 5.89 8.2 4-7 400 60 177 237 103 Clam 2-7 1.14 7.42 9.7 2-7 612 76 281 359 136 Murex 1/0-7 1.52 9.35 12.4 1/0-7 903 128 385 513 182 AAAC Homarus 6-Solid 1.14 4.115 6.4 6-7 499 42 118 159 78 Cabera 6-7 1.14 4.65 6.9 6-7 499 48 118 165 78 Artemia 4-Solid 1.14 5.182 7.5 6-7 499 52 162 214 103 Sanderab 1/0-7 1.52 9.35 12.4 2-7 1270 128 409 537 182 Leda 1/0-19 1.52 9.47 12.5 1/0-7 2023 130 473 603 182 ACSR Cavolinia 2/0-7 1.52 10.5 13.564 1-6/1 1610 146 496 697 279 Aega 3/0-19 1.52 11.9 14.986 1/0-6/1 1987 168 625 862 322 Cuttlefish 4/0-7 1.52 13.3 16.307 2/0-6/1 2404 191 787 1066 372 Callista 266.8-19 2.03 15.1 19.126 3/0-6/1 3003 280 991 1384 410 Limpet 336.4-19 2.03 16.9 20.980 336.4-18/1 3937 320 1429 1823 506 Phase Conductor Bare Natural Weight Ampacity Size&No. of Wires Insulation Thickness Nominal Diameter Size&No.of Wire Rated Strength XLPE Al Total Bare OD mm mm mm kg kg/km kg/km kg/km A AAC Libyan 1/0-7 1.524 9.347 12.395 1/0-7 902.644 192 598 790 182 Orloff 2/0-7 1.524 10.516 13.564 2/0-7 1138.511 217 754 973 210 Percheron 2/0-19 1.524 10.643 13.691 2/0-19 1138.511 220 754 976 210 Mongolian 3/0-7 1.524 11.786 14.834 3/0-7 1378.914 249 951 1199 242 Oldenburg 4/0-19 1.524 13.411 16.459 4/0-19 1737.250 289 1199 1490 279 AAAC Bay 6-Solid 1.143 4.115 6.401 6-7 503.485 63 155 217 78 Arabian 4-7 1.143 5.893 8.179 4-7 784.711 89 247 336 103 Saddle 1-19 1.524 8.433 11.481 2-7 1270.052 171 466 637 158 Plow 1/0-7 1.524 9.347 12.395 1/0-7 2023.011 192 624 814 182 Sherland 1/0-19 1.524 9.474 12.522 1/0-7 2023.011 193 624 817 182 ACSR Standardbred 1/0-7 1.524 9.347 12.395 1/0-6/1 1986.724 192 598 859 182 Grullo 2/0-19 1.524 10.643 13.691 2/0-6/1 2404.027 220 753 1063 210 Mare 3/0-7 1.524 11.786 14.834 3/0-6/1 3002.766 249 951 13.8 242 Stallion 4/0-7 1.524 13.259 16.307 4/0-6/1 3787.477 286 1198 1622 279 Appaloosa 4/0-19 1.524 13.411 16.459 4/0-6/1 3787.477 289 1198 1627 279

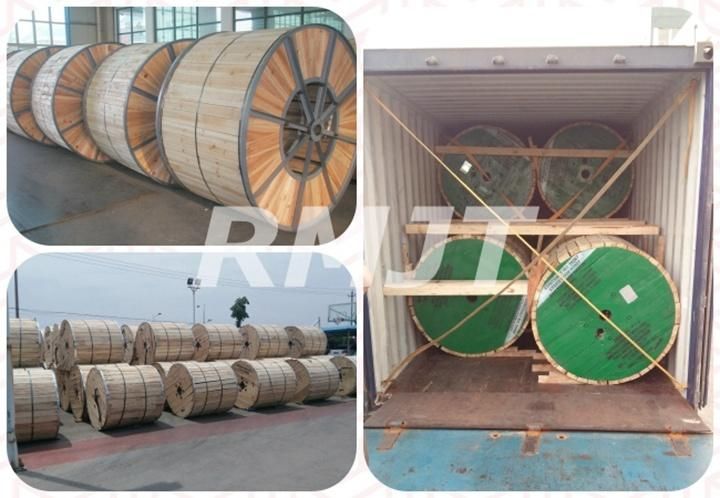

ABC Cable Packaging
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.

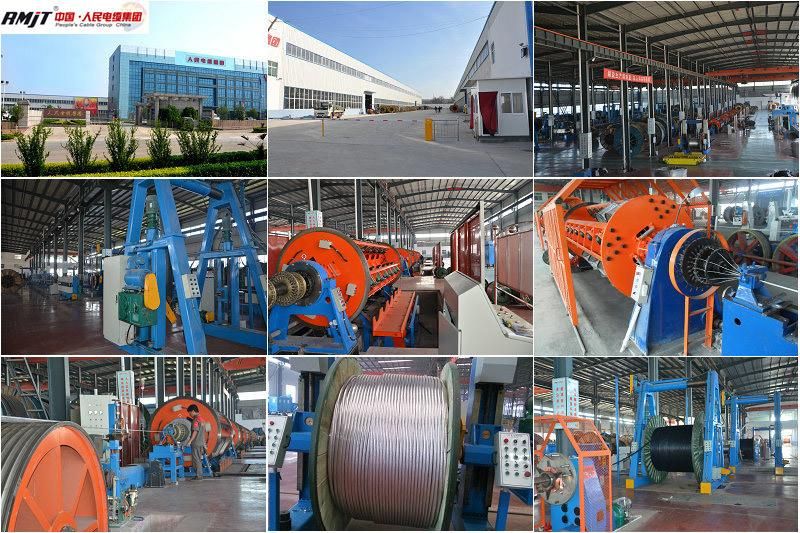

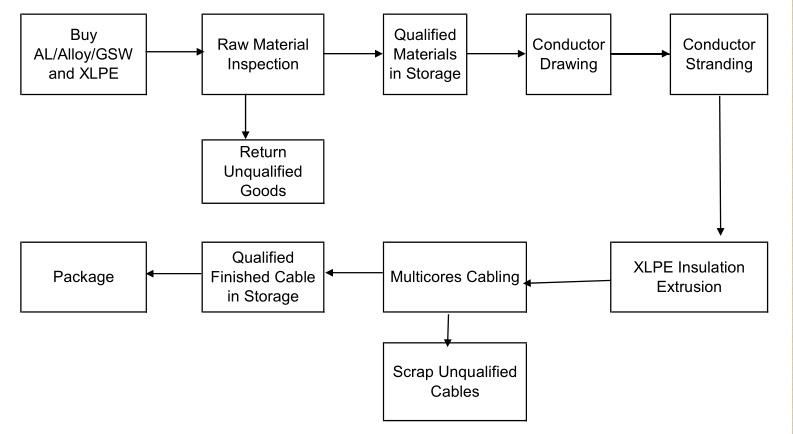

Production process
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ
Q:How many years has People's Cable Group been in production?
A:People's Cable Group CO., Ltd was founded in 2007, up to now it has been engaged in wires and cables industry over 10 years.
Q:What kind of products does People's Cable Croup manufacture?
A:(1)Aerial Bundled Cable: Duplex, Triplex, Quadruplex Service Drop Aluminum Conductor, etc.
(2)Bare Conductor: AAC, AAAC, ACSR,AACSR, ACAR, ACSR/AW, etc.
(3)Building Wire: Copper/Aluminum Conductor PVC/XLPE Insulated Electrical Wire, etc.
(4)Power Cable: Copper/Aluminum Conductor PVC/XLPE Insulated Steel Armoured Cable in Low,Medium,High Voltage, etc.
(5)Rubber Cable,Galvanized Steel Wire/Stranded, Welding Cable, Control Cable and so on.
Q:I didn't find the cable which I need in this page?
A:Because of the limitation of platform, we didn't show all specifications of cables. If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
About Us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Our advantages:
1.27 years manufacture experience and 15 years export experience
2.With our own factory, supply stability with low cost and excellent quality
3.Product certification: CCC, ISO, BV, SGS, UL, CE and so on
4.OEM and ODM service available
5.Rapid delivery and feedback, faster lead time
6.Free sample is available
We are wires, cables and bare conductors manufacturer more than 20 years, till now our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
For more details please check our website as my contact information.
If you have any problem, please do not hesitate to let us know, we will offer you our best service.
Contact Us
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.
Attn: Kathy Wong
Tel:+86 15981975851
Fax:+86-371-55632837
