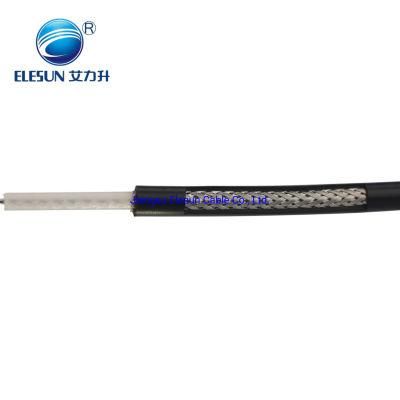

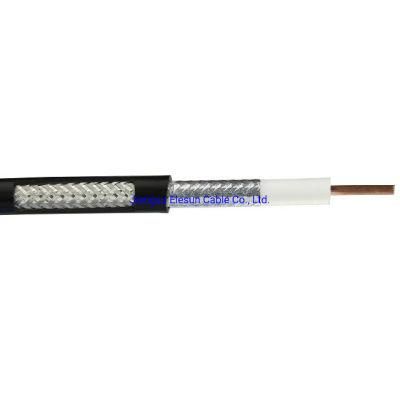

Factory Halogen Free Cable UL2464 Cable Shield Wire Hook up Wire for Communication System
Jiangsu Elesun Cable Co., Ltd.- Wire Core Material：Tin Plated Copper Wire
- Industry Type：Industrial Wire Harness
Base Info
- Model NO.：UL2464
- Bandaging Materials：PVC Pipe
- General Wiring Harness：Crimping Assembling Classes
- Signal：Low Voltage Wiring Harness
- Shape：Round
- Interface Type：DC,DC
- Certification：RoHS, ISO9001, UL, CCC
- Brand：Elesun
- Material of Inner Conductor：Bare Copper Wire
- No. of Inner Conductor：Solid, 19 Strands, 41 Strands
- Material of Jacket：From 22 AWG to 1AWG
- Rated Working Temp：-40ºC to +105ºC
- Voltage：600V
- Transport Package：305m,Roll
- Specification：32.5*31*16.5cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544492100
- Production Capacity：10000m,Day
- Package size per unit product：29.00cm * 29.00cm * 26.00cm
- Gross weight per unit product：12.000kg
Description
Sheath
Max. DC
Resistance at 20°C
Core
AWG
No of strands
Thick(mm)
Dia.(mm)
Thick (mm)
Dia.(mm)
Ohm/km
4
28
7/0.127
0.15
0.75
0.76
3.5
237
20
24
7/0.20
0.51
1.70
0.76
12.5
94
2
22
7/0.254
0.23
1.40
0.76
5.0
59.4
2
20
26/0.16
0.76
2.58
0.76
7.5
36.7
2
18
41/0.16
0.80
2.80
0.76
7.2
23.2
3
18
16/0.254
0.58
2.35
0.76
7.1
23.2
