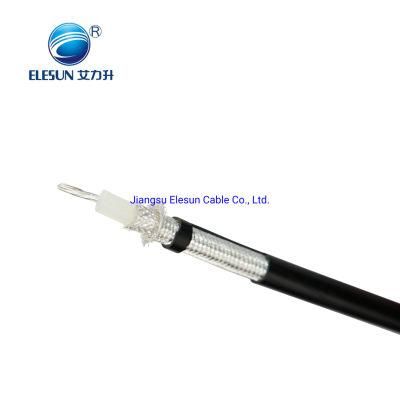

50ohm Rg174 XLPE Coaxial Cable for GPS Antenna
Jiangsu Elesun Cable Co., Ltd.- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
Base Info
- Model NO.：RG174
- Type：Rg174
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：Rg174
- Brand：Elesun
- Material of Inner Conductor：Cu, CCS, Tc
- Structure of Inner Conductor：7,0.16mm
- Material of Insulation：Solid PE
- Diameter of Insulation：1.52mm
- Material of Braiding(Shielding)：Bare Copper, Tinned Copper
- Structure of Braiding(Shielding)：80*0.10mm
- Material of Jacket：PVC
- Diameter of Jacket：2.8mm
- Working Temp：-40ºC,80ºC
- Impedance：50Ω±2
- Voltage：1500V
- Weight：15kg,Km
- Transport Package：1000m,Roll,CTN
- Specification：29*29*26cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
- Package size per unit product：38.00cm * 38.00cm * 30.00cm
- Gross weight per unit product：18.000kg
Description
RG174/U coaxial cable specifications
Material of Inner Conductor
Cu, CCS, TC
Structure of Inner Conductor
7/0.16mm
Material of Insulation
Solid PE
Diameter of Insulation
1.52mm
Material of Braiding(Shielding)
Bare Copper, Tinned Copper
Structure of Braiding(Shielding)
80*0.10mm
Material of Jacket
PVC
Diameter of Jacket
2.8mm
Working temp
-40ºC/80ºC
Impedance
50Ω±2
Voltage
1500V
Weight
15KG/KM
