Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A

Hongan Group Corporation Limited
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：CAT6
  • Certification：CE, ISO, RoHS, UL, VDE
  • Brand：Hongan
  • Frequency：4-250 MHz
  • Attenuation：3.8-32.8dB,100m
  • Phase Delay：536-552 Ns,100m

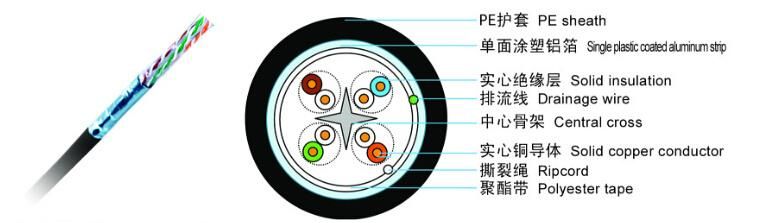

  • Cable Structure：4 Pair FTP
  • Conductor：Single Strands of Pure Copper
  • Insulation：Solid High-Density Polyethylene
  • Outer Sheath：Low-Density Polyethylene
  • Installation Temperature：-20ºC-+60ºC
  • Standards：IEC61156,ISO,IEC11801,ANSI,Tia,Eia-568-C,Yd,T1019
  • Export Market：Europe,Middle East, South-East Asia,Africa etc.
  • Transport Package：Box
  • Specification：Data Cable
  • Trademark：Hongan
  • Origin：China
  • HS Code：8544491100
  • Production Capacity：45000km,Month

Description

Transmission PerformanceFrequency(MHz)Attenuation(Max)(dB/100m)Next(Min)    (dB/100m)Psnext(Min)(dB/100m)Elfext(Min)(dB/100m)PSELFEXT(Min)(dB/100m)RL      (Min)(dB)Phase Velocity(Min)(m/s)Phase delay(Max)(ns/100m)43.867645653230.604c552106.061584845250.612c545167.658554441250.614c543208.556534239250.615c54231.2510.75350383523.60.617c54062.515.44946322921.50.619c53910019.84643282520.10.620c5382002941382219180.622c53725032.84037201717.30.622c536

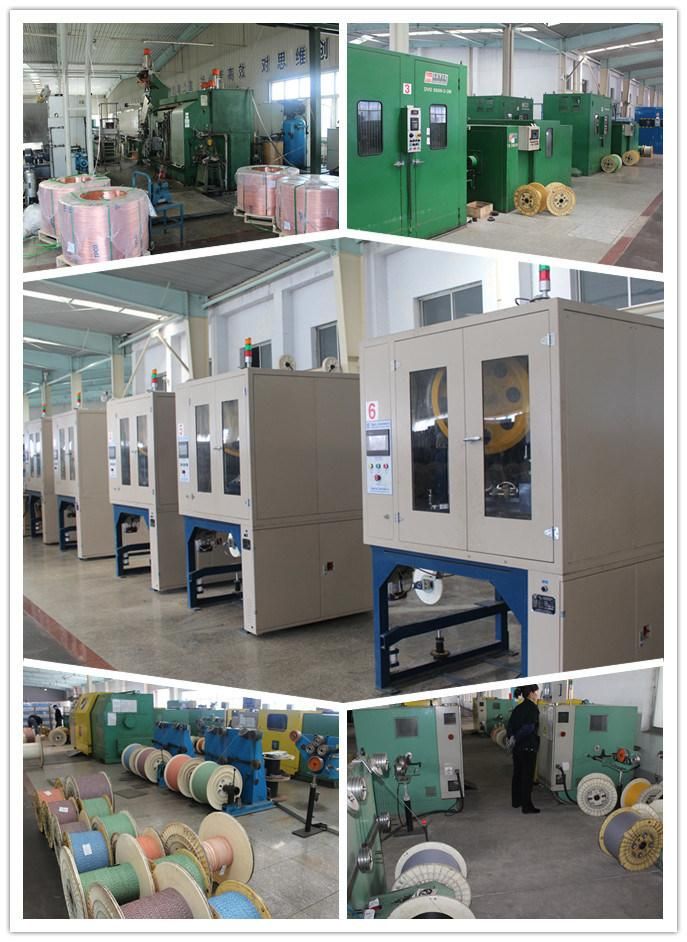

Item&Production Line
Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A

Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A
Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A
 Certification
Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A
Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A

Company Information
        Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.

       Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.

Our Customer
Indoor /Outdoor Fluk E Pass 4pr 23 AWG Rollo De Cable UTP CAT6 CAT6A
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.

-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!

-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.

-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.

-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.

Welcome you select our products! Any inquiry, pls feel free to contact with us!

Best regards
