UL1007 32-16AWG Copper PVC Insulated Electric Wire

Jiangyin Yuanda Electrical Material Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating, Underground
  • Conductor Material：Bare Copper or Tinned Copper
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：UL1007
  • Certification：ISO9001, UL, CCC, RoHS, VDE
  • Brand：Yuanda
  • Color：on Request
  • Temperature Range：80deg.C
  • Nominal Voltage：300V
  • Reference Standard：UL758, UL1581
  • Certificate No.：E216252
  • Test：UL VW-1, Culft1 and Jqaf-Mark Flame
  • Transport Package：Pallet,Carton,Tray,Reel
  • Specification：16-32AWG
  • Trademark：Yuanda
  • Origin：Wuxi, China
  • HS Code：8544492100
  • Production Capacity：1000km,Day

Description

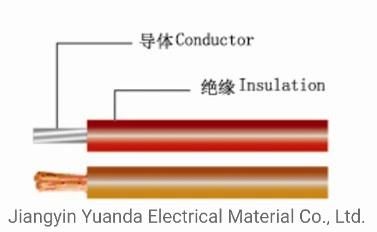

Part No.ConductorInsulationMax Resistence at 20ºC
Ω/kmAWGNO./mmDiameter
mmNom. Thickness
mm±0.1Outer Diameter
mmUL1007327/0.0800.240.401.04556.00UL1007307/0.1020.300.401.10354.33UL1007287/0.1270.380.401.18223.75UL1007267/0.1600.480.401.28139.76UL10072411/0.1600.610.401.4188.36UL10072217/0.1600.760.401.5660.16UL10072021/0.1780.940.401.7438.58UL10071834/0.1781.200.402.0022.98UL10071626/0.2541.500.402.3015.06


UL1007 32-16AWG Copper PVC Insulated Electric Wire
