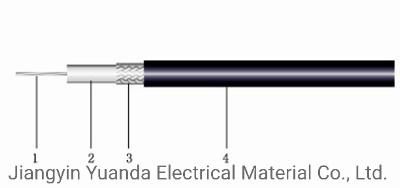

Rg178 (SF46F-50-1) Silverplated Copper Conductor PTFE Insulation Coaxial Cable

Jiangyin Yuanda Electrical Material Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable
  • Conductor Material：Sc(Silverplated Copper)
  • Cover Material：FEP
  • Type：Cat 7
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：RG178 (SF46F-50-1)
  • Certification：ISO, RoHS, CCC, UL, VDE
  • Model：Rg178 (Sf46f-50-1)
  • Brand：Yuanda
  • Insulation：PTFE
  • Jacket：FEP
  • Inner Conductor：Sc(Silverplated Copper)
  • Braid：Sc(Silverplated Copper)
  • Temperature：-65~+200deg.C
  • Testing Voltage：1000V
  • Transport Package：Pallet,Carton,Tray,Reel
  • Specification：ISO9001, UL, CCC, RoHS, VDE
  • Trademark：Yuanda
  • Origin：Wuxi, China
  • HS Code：8544492100
  • Production Capacity：1000km,Day

Description

7/0.102Insulation mm0.86Braid mm0.10Jacket mm1.80Impedance Ω50Testing voltage KV1Attenuation dB/m200MHZ0.701000MHZ1.703000MHZ3.086000MHZ4.80Capacitance105
Rg178 (SF46F-50-1) Silverplated Copper Conductor PTFE Insulation Coaxial Cable
