• Model NO.：Power Cable
• Wire Core Material：Aluminum Wire
• Certification：ISO, CCC, CE, RoHS
• Model：YJV
• Brand：Hnbf Cable
• Colour：Red, Black, Yellow, Green, Blue...
• Armour：Steel Wire Armour or Steel Tape Armour or Unarmour
• No.Cores：1,2,3....
• Transport Package：Fumigated Wooden Drum
• Specification：16mm2, 25mm2, 35mm2, 50mm2, 70mm2
• Trademark：HNBF Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：2500km,Month

Basic Info.

Model NO. Power Cable Wire Core Material Aluminum Wire Certification ISO, CCC, CE, RoHS Model YJV Brand Hnbf Cable Colour Red, Black, Yellow, Green, Blue... Armour Steel Wire Armour or Steel Tape Armour or Unarmour No.Cores 1,2,3.... Transport Package Fumigated Wooden Drum Specification 16mm2, 25mm2, 35mm2, 50mm2, 70mm2 Trademark HNBF Cable Origin China HS Code 8544492100 Production Capacity 2500km/Month

Product Description

Product Description & Application

 A power cable is an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed.
It is used to transmit and distribute power in power transmission and distribution system of 0.6/1kV to 8.7/15kV. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication.

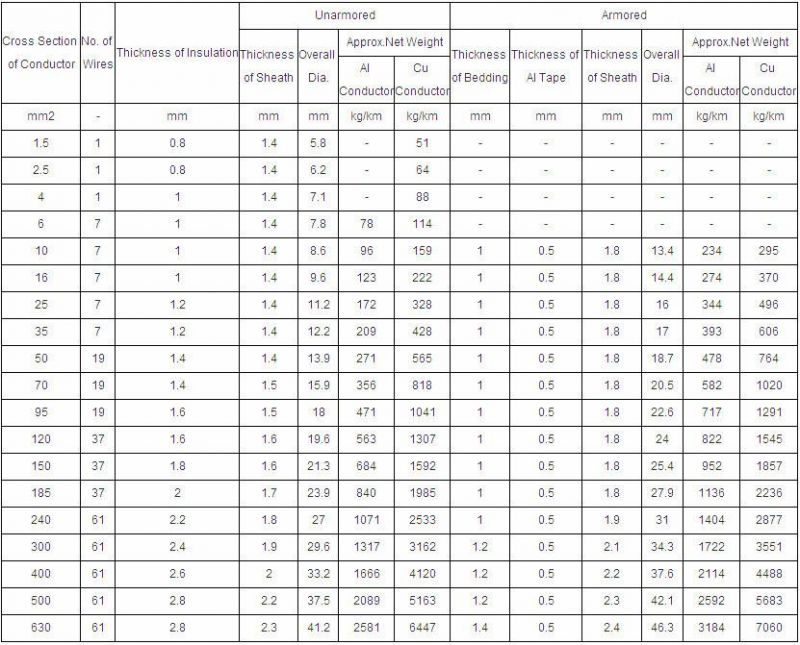

Technincal Data

Operating Features

1)Operating temperature
Max. Permissible continuous operating temperature of Conductors shall not exceed 90ºC
2)Conductor Short circuit temperature
Not exceeding 250 . (Max. Duration 5 seconds)
3)Bending radius:
Bending radius of single core cable:20D   Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable (mm)
4)Installation temperature:
The lowest temperature of installation is 0ºC .
Laying conditions and basic parameters for calculating current ratings:
Method of laying: Ambient temperature
In air: 40ºC    Direct burial: 25ºC    Soil thermal resistivity 1.0ºC· m/W
Layout of single core cables: In parallel (Spacing side by side: 1D D=overall diameter)

1. Conductor     2. Conductor Screen    3. XLPE Insulation     4. Insulation screen

5. Metallic Screen    6. Filler     7. Separator(Inner Cover)       9. Outer Sheath


Our Certifications

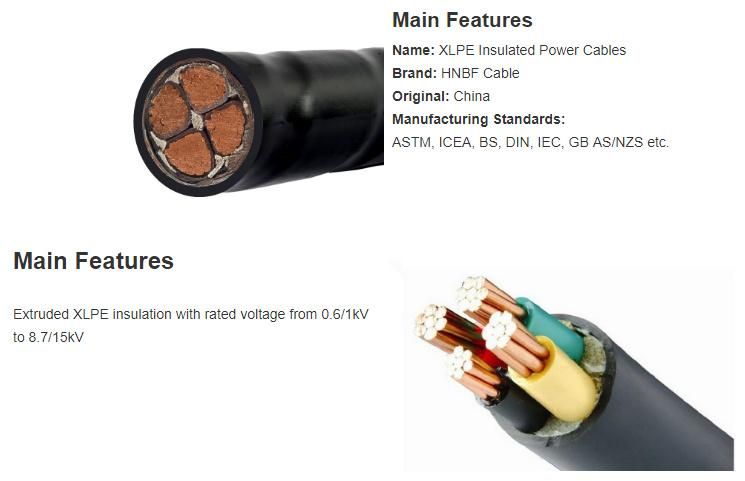

Detailed Images

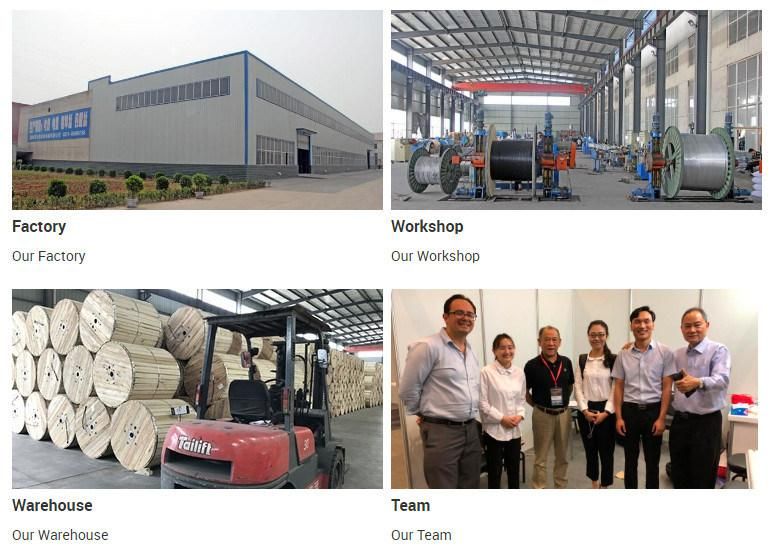

Our Company



Why Choose Us

1. Strict quality control system, excellent quality with reasonable price.

2. Strong and Professional R&D team to meet your specific needs.

3. Rapid delivery and feedback. Faster lead time than our competitors.

4. OEM service available based on official & legal authorization.

5. Free sample is available.

6. Appointed shipping company is acceptable.

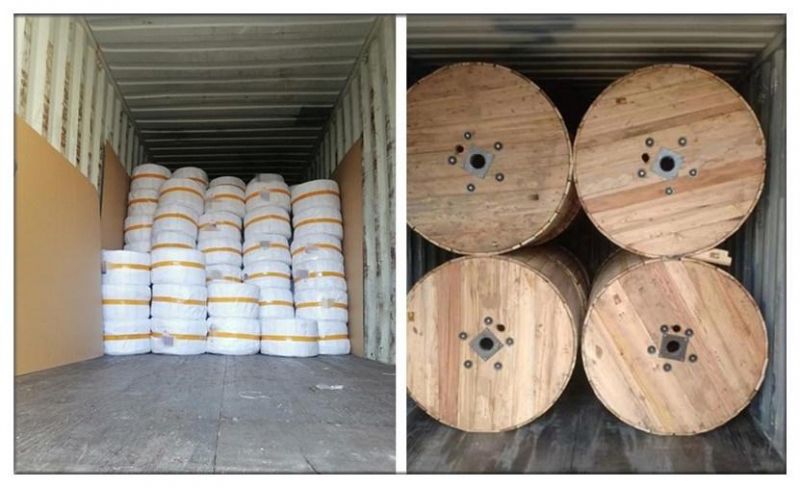

Packing & Delivery
