12/24 Core Excel Networking GYTA53 Optic Fiber Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe, Glass Fiber
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTA53 Optic Fiber Cable
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：OEM or Tw-Scie
- Sheath Material：LSZH, HDPE, MDPE
- Installation Style：Duct & Direct Buried
- Brand Name of Fiber：Corning, Yofc, Draka,...Asyour Requiremen
- Loose Tube Material：PBT
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE ,LSZH
- Outer Sheath Color：Black
- First Armour Material：Corrugated Steel Tape
- Second Armour Material：Corrugated Aluminium Tape
- Central Stranding Member：Steel Wire or FRP
- Color of Fiber and Loose Tube：Blu, Ora, Gre, Bro, White, Red, Black, Yello

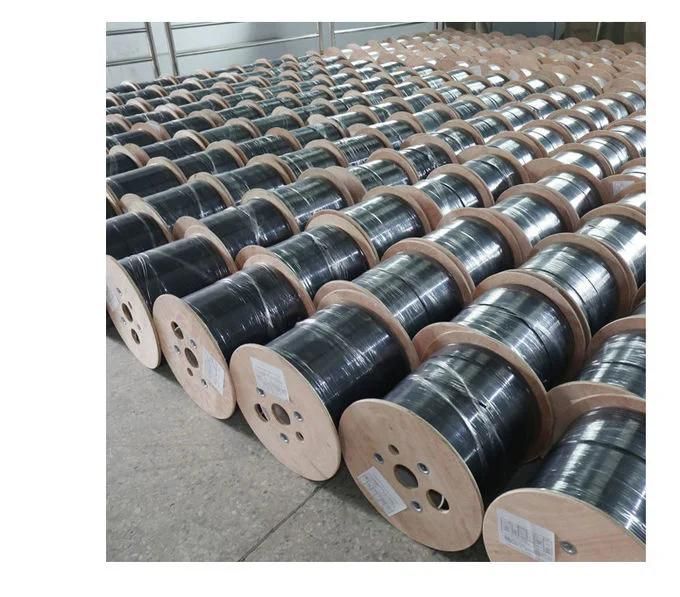

- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, China
- HS Code：8544700000
- Production Capacity：200km,Day
Description
Fiber Num.Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-24 13.3 210 12.5 times O.D. 25 times O.D. 3000 1000 3000 1000 26-36 13.6 220 38-60 14.1 225 62-72 14.6 255 74-96 16.2 305 98-120 17.7 350 122-144 19.1 395 146-216 19.6 420 218-240 22.8 530 242-288 25 620
Company Info

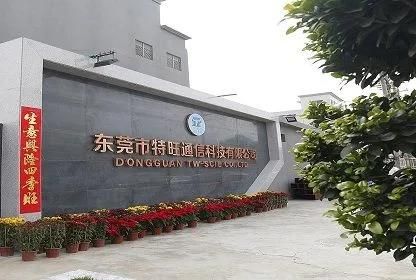

Established in 2002, Dongguan TW-SCIE Co., Ltd. is a comprehensive high-tech enterprise that integrates R&D, manufacture, sale of fiber optic communication products and network engineering. We have two manufacturing bases, one is in Donguan, Guangdong which occupies about 30000m2 with 20000m2 production factory, and the other is in Deyang, Sichuan which occupies 40000m2 with 20000m2 production factory. The annual production capacity of the two bases are 20 million core kilometers.
We are dedicated in R&D and application of fiber optic products and have obtained 5 invention patents and 58 utility model patents. The main products are indoor/outdoor fiber optic cable, ADSS, OPGW, FTTH drop cable, patch cord, pigtail and related accessories. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004, OHSAS1801 and so on.
