12/24 Core Anit Rodent Direct Buried GYTA53 Fiber Optical Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe, Fiber Optic Cable
- Type：Optical Fiber
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：GYTA53
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：Fiber Optic Cable
- Sheath Material：LSZH, HDPE, MDPE
- Installation Style：Duct & Direct Buried
- Brand Name of Fiber：Corning, Yofc, Draka,...
- Loose Tube Material：PBT Optic Fiber Cable
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE ,LSZH
- Outer Sheath Color：Black ( Opitc Cable)
- First Armour Material：Corrugated Steel Tape
- Second Armour Material：Corrugated Aluminium Tape
- Central Stranding Member：Steel Wire or FRP
- Fiber Count：2-288 Core Optic Cable
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, China
- HS Code：8544700000
- Production Capacity：200km,Day
Description
GYTA53 Fiber Optic Cable Technology Specification:Out sheath Tight buffer Weight Minimum allowable Minimum allowable Crush Load Minimum Bending Radius Storage Diameter Diameter
TensileStrength(N)
(N/100mm) (MM) temperature(°C) (MM) (MM) (KG) short term long Term short term long term short term long term -40+60 2-60 13.2 218 3000 1000 3000 1000 20D 10D -40+60 62-72 15.0 230 3000 1000 3000 1000 20D 10D -40+60 74-96 18 318 3000 1000 3000 1000 20D 10D -40+60 98-120 19 378 3000 1000 3000 1000 20D 10D -40+60 122-216 20 458 3000 1000 3000 1000 20D 10D -40+60
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber A1b:62.5/125 Singlemode G.652(A,B,C) B1.1:Conventional fiber G.652D B2: Zero dispersion shifted G.655 B1.2 :Cut-off wavelength shifted G.657(A1,A2 ,B3) B4: Main technical data for positive dispersion shifted single-mode fiber
GYTA53 optic fiber cable Wooden Drum :
The cables will be shipped on disable wooden or treated wooden drums.
Inner packing: Steel reel on wooden drums which wrapped with insulated material;
Out packing: Protected by wooden battens.
PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction
of rotation arrow is marked on the drum together with the identification

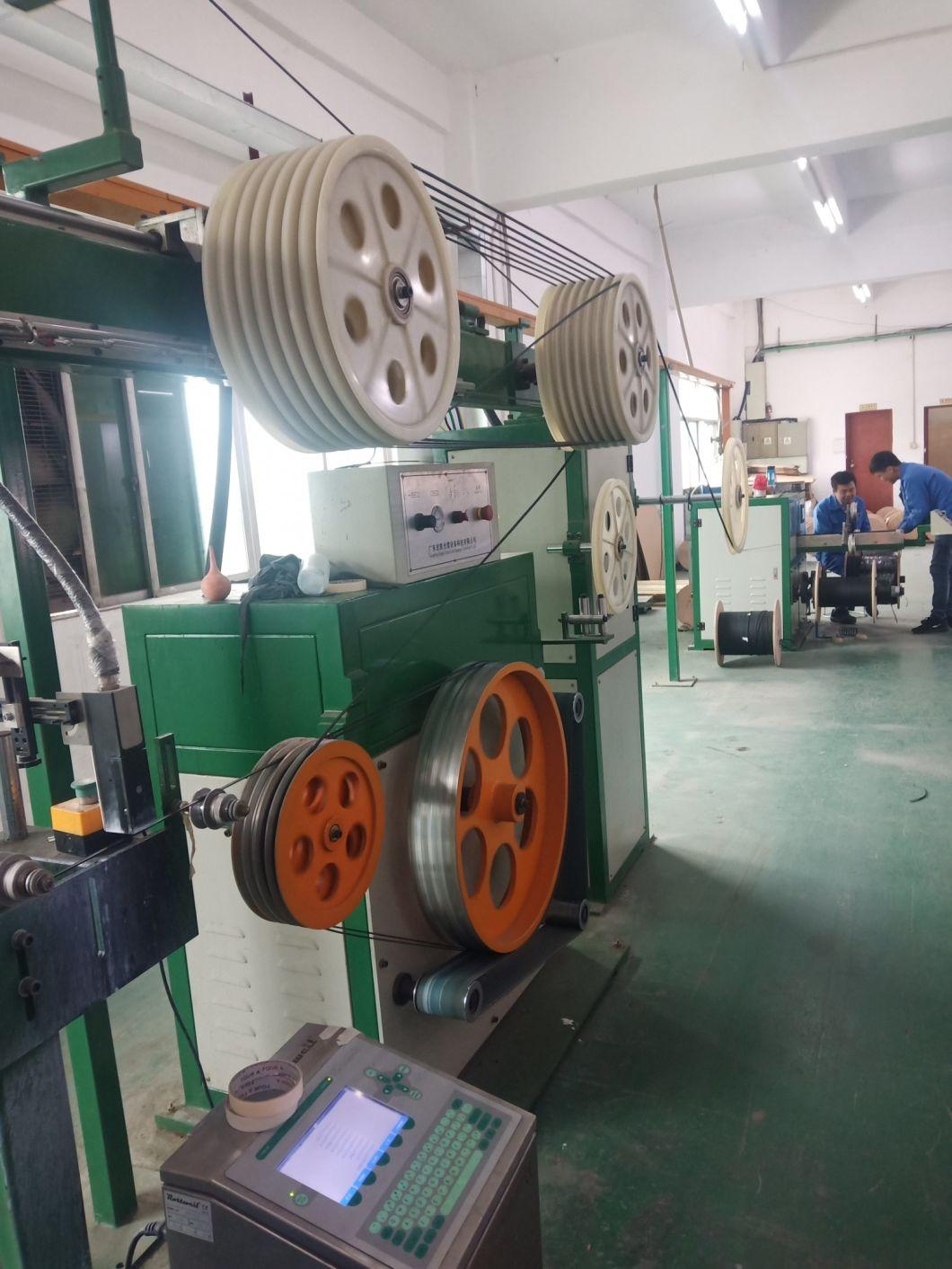

GYTA53 optic fiber cable Manufacturing Process:
Here at TW-SCIE we provide you technical assistance and informations. All of fiber optic cable are tested by professional QC department.
Including: Optical fiber performance, Mechanic performance, Environment performance, etc
GYTA53 optic fiber cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
mechanical characteristics can be tested on testing machine for the particular test.
Competitive Advantages:
1.OEM fiber optic cable manufacturer .
2. Fiber brand : YOFC, CORNING.
3.Quality certification :ISO9001.ROSH.REACH.
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects.
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service.

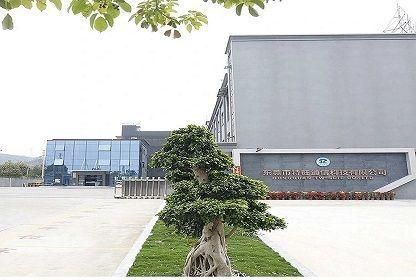

Company Info
Established in 2002, Dongguan TW-SCIE Co., Ltd. is a comprehensive high-tech enterprise that integrates R&D, manufacture, sale of fiber optic communication products and network engineering. We have two manufacturing bases, one is in Donguan, Guangdong which occupies about 30000m2 with 20000m2 production factory, and the other is in Deyang, Sichuan which occupies 40000m2 with 20000m2 production factory. The annual production capacity of the two bases are 20 million core kilometers.
We are dedicated in R&D and application of fiber optic products and have obtained 5 invention patents and 58 utility model patents. The main products are indoor/outdoor fiber optic cable, ADSS, OPGW, FTTH drop cable, patch cord, pigtail and related accessories. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004, OHSAS1801 and so on.
Why choose us?
1.Introduction of foreign advanced production equipment and technology, have 20 year production experience, 80% employees
have more than 10 years experience, excellent enterprise culture and management team;
2.FAST SHIPPING from factory;
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order;
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like;
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according
to ur requirement and description;
6.With more than 20 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both
domestic and overseas famous enterprise.
Exhibition
Dear Customers,
Thanks for your time to view our fiber optic products, for MORE DETAILS & LATEST QUOTATION LIST, please feel free to contact us!
Thanks and Best regards,
TensileStrength(N)
GYTA53 optic fiber cable Wooden Drum :
The cables will be shipped on disable wooden or treated wooden drums.
Inner packing: Steel reel on wooden drums which wrapped with insulated material;
Out packing: Protected by wooden battens.
PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction
of rotation arrow is marked on the drum together with the identification
GYTA53 optic fiber cable Manufacturing Process:
Here at TW-SCIE we provide you technical assistance and informations. All of fiber optic cable are tested by professional QC department.
Including: Optical fiber performance, Mechanic performance, Environment performance, etc
GYTA53 optic fiber cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
mechanical characteristics can be tested on testing machine for the particular test.
Competitive Advantages:
1.OEM fiber optic cable manufacturer .
2. Fiber brand : YOFC, CORNING.
3.Quality certification :ISO9001.ROSH.REACH.
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects.
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service.
Company Info
Established in 2002, Dongguan TW-SCIE Co., Ltd. is a comprehensive high-tech enterprise that integrates R&D, manufacture, sale of fiber optic communication products and network engineering. We have two manufacturing bases, one is in Donguan, Guangdong which occupies about 30000m2 with 20000m2 production factory, and the other is in Deyang, Sichuan which occupies 40000m2 with 20000m2 production factory. The annual production capacity of the two bases are 20 million core kilometers.We are dedicated in R&D and application of fiber optic products and have obtained 5 invention patents and 58 utility model patents. The main products are indoor/outdoor fiber optic cable, ADSS, OPGW, FTTH drop cable, patch cord, pigtail and related accessories. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004, OHSAS1801 and so on.
Company History:
★ 2002 05, Shenzhen TW-SCIE Co., Ltd. was established in Shenzhen
★ 2002 07, Start to source and distribute fiber cable, media converter, patch cords, and connectors.
★ 2002 10, TW-SCIE Shenzhen factory was set up, specializing in manufacturing patch cords.
★ 2003 02, Shenzhen factory introduced production lines to make media converter.
★ 2003 09, Shenzhen factory introduced production lines for fiber optic cables manufacture.
★ 2003 10, First drum of outdoor cable was produced from brand new production line.
★ 2004 08, Shenzhen TW-SCIEe Co., Ltd. have over 100 employees, fiber optic cables are widely used by China Telecom, China Mobile, and China CATV operators in more than 20cities and areas.
★ 2004 12, Shenzhen TW-SCIE Co., Ltd. was approved and get export & import license, meanwhile it export to Singapore, Malaysia, South Korea, India, Pakistan…
★ 2006 07, Shenzhen TW-SCIE Co., Ltd. bought land (more than 10000square meters) in Dongguan City and build new factory.
★ 2007 10, Shenzhen TW-SCIE Co., Ltd. move to Dongguan and Dongguan TW-SCIE Co., Ltd. was established.
★ 2008 05, TW-SCIE introduced 10 more production lines and enlarged production capability.
★ 2010 04, TW-SCIE's sales reached 3 million core kilometers and keep increasing rapidly.
★ 2013 05, TW-SCIE sales centre was set up in Dongming Building, Shenzhen.
★ 2013 06, Start new business of networking active equipments.
★ 2014 03, Hong Kong TW-SCIE Limited was established.
★ 2016 11, Shenzhen TW-OPTIC Technology Co.,Ltd. was set up, specializing in manufacturing laser TV, ultra-precision optical product.
★ 2017 12, Sichuan TW-SCIE Co.,Ltd. was set up, specializing in manufacturing OPGW, ADSS cable.
★ 2018 05, TW-SCIE's sales reached 10 million core kilometers and keep increasing rapidly.
Why choose us?
1.Introduction of foreign advanced production equipment and technology, have 20 year production experience, 80% employees
have more than 10 years experience, excellent enterprise culture and management team;
2.FAST SHIPPING from factory;
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order;
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like;
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according
to ur requirement and description;
6.With more than 20 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both
domestic and overseas famous enterprise.
Exhibition
Dear Customers,
Thanks for your time to view our fiber optic products, for MORE DETAILS & LATEST QUOTATION LIST, please feel free to contact us!
Thanks and Best regards,
