• Model NO.：Outdoor Cable (D185)
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, UL
• Model：UTP Cat5e
• Brand：Fulsan
• Category：UTP Cat5e Cable
• Gauge：24,26,28 AWG Optional
• Conductor Size：0.50mm-0.51mm Bare Copper or CCA
• No. of Conductor：8
• Insulation：HDPE
• Jacket：PVC,LSZH,PE
• Approved：ISO,IEC11801, ANSI,Tia,Eia-568b
• Operating Temperature Range：-20°c to 80 °c
• Package：Drum or Easy Pull Box
• Certificate：UL, RoHS
• Transport Package：305m,Cnt
• Specification：UL, CE, CCC
• Trademark：FULSAN
• Origin：China
• HS Code：854442
• Production Capacity：10, 000, 000m Per Month

Basic Info.

Model NO. Outdoor Cable (D185) Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, UL Model UTP Cat5e Brand Fulsan Category UTP Cat5e Cable Gauge 24/26/28 AWG Optional Conductor Size 0.50mm-0.51mm Bare Copper or CCA No. of Conductor 8 Insulation HDPE Jacket PVC,LSZH,PE Approved ISO/IEC11801, ANSI/Tia/Eia-568b Operating Temperature Range -20°c to 80 °c Package Drum or Easy Pull Box Certificate UL, RoHS Transport Package 305m/Cnt Specification UL, CE, CCC Trademark FULSAN Origin China HS Code 854442 Production Capacity 10, 000, 000m Per Month

Product Description

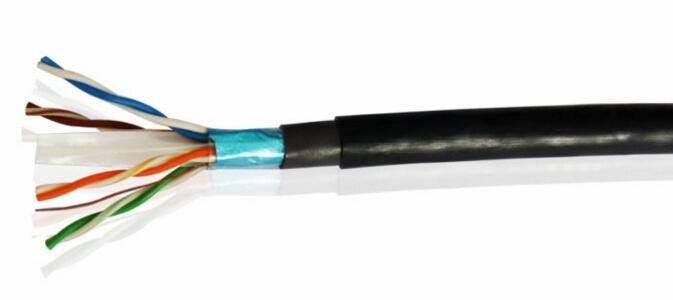

UTP CAT5e/Cat6 Outdoor Cable--Double Jacket Cable with Gel-Filled.

Specifications
Conductor: 24AWG(0.50+/-0.05mm) Solid/stranded Bare Copper,CCA,CCAG,CCAU,CU,22/23/24/26AWG
Cabling : 4 twishted pairs cabled around a cross shaped central filler into the cable core.
Colour:grey,blue,red,yellow,green,black,white, also as customers requirements.
Pair Insulation:Polyethylene, 0.90+/-0.05mm HDPE
Outer Cable Diameter: 5.7 ± 0.2 mm
Sheat: 5.0+/-0.1mm PVC/PE/LSZH
Options:Jelly filled ,UV,FR,ROHS complied is available
Operating temperature: -20°C to +75°C

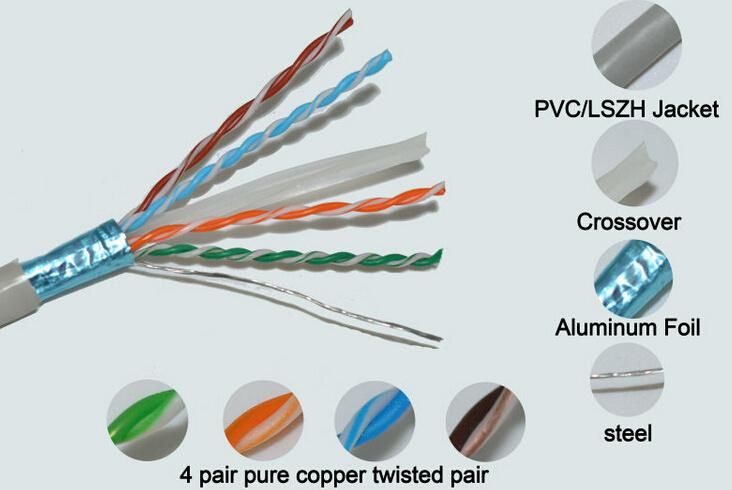

Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B,

Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc.

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
