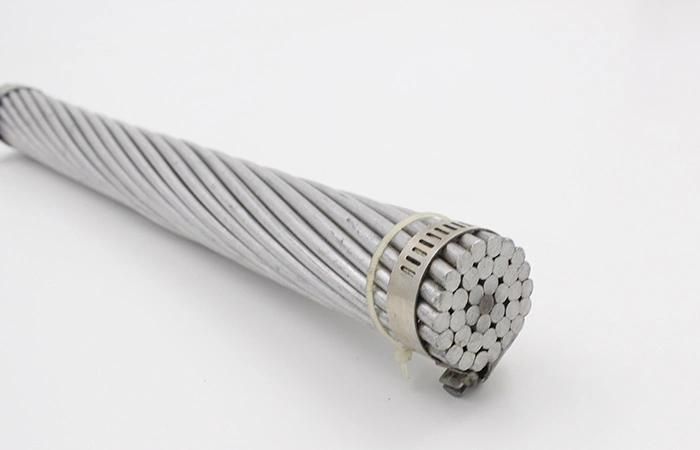

Bare Aluminum Conductor Steel Reinforced ACSR Linnet Conductor
HENAN BAOFENG CABLE CO., LTD.- Certification：Ce,ISO,Rosh,CCC,Iecee
- Standard：IEC, ASTM, BS, DIN, GB,T etc
- Type：Bare
- Material：Aluminum,Steel
- Item：Bare Conductor
- Name：795 Mcm ACSR Conductor Bare ACSR Tern Condor Drake
Base Info
- Model NO.：ACSR
- Application：Power Transmission Lines
- Insulation：None
- Sheath：None
- Brand：Hnbf Cable
- Transport Package：Cable Drum
- Specification：Martin
- Trademark：HNBF
- Origin：China Henan
- HS Code：7614100000
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
Electrical Resistance at 20 deg.Alum. Steel Total Alum. Steel mm2 mm2 mm2 No./mm No./mm mm Kg/Km KN Ω/km TURKEY 13.3 2.22 15.52 6/1.68 1/1.68 5.04 53.6 4.98 2.1499 SWAN 21.18 3.53 24.71 6/2.12 1/2.12 6.36 85.3 7.83 1.3501 SWANATE 21.12 5.35 26.51 7/1.96 1/2.61 6.53 99.6 9.79 1.3539 SPARROW 33.59 5.61 39.22 6/2.67 1/2.67 8.01 135.7 11.92 0.8512 SPARATE 33.54 8.55 42.13 7/2.47 1/3.30 8.24 158.7 15.08 0.8525 RABIN 42.41 7.07 49.48 6/3.00 1/3.00 9 171.1 14.86 0.6742 RAVEN 53.52 8.92 62.38 6/3.37 1/3.37 10.11 216.1 18.33 0.5343 QUAIL 67.33 11.22 78.65 6/3.78 1/3.78 11.34 272 22.46 0.4247 PIGEON 85.12 14.19 99.22 6/4.25 1/4.25 12.75 343 28.02 0.3359 PENGUIN 107.22 17.87 125.1 6/4.77 1/4.77 14.31 432.7 35036 0.2667 PARTRIDGE 134.87 21.99 156.86 26/2.57 7/2.00 16.28 545.9 47.15 0.2141 MERLIN 170.22 9.46 179.93 18/3.47 1/3.47 17.35 542.8 37.36 0.1688 LINNET 170.55 27.83 198.26 26/2.89 7/2.25 18.31 687.5 59.16 0.1693 ORIOLE 170.5 39.78 210.26 30/2.69 7/2.69 18.83 783.3 72.06 0.1698 IBIS 201.34 32.73 234.19 26/3.14 7/2.44 19.88 812.4 68.5 0.1434 LARK 200.9 46.88 248.39 30/2.92 7/2.92 20.44 925.2 84.07 0.1441 PELICAN 242.31 20.7 255.1 18/4.14 1/4.14 20.7 769.7 51.15 0.1186 FLICKER 241.58 21.49 272.97 24/3.58 7/2.39 21.49 913.5 72.06 0.1195 HAWK 241.65 21.79 281.1 26/3.44 7/2.67 21.79 975.1 81.84 0.1195 HEN 241.27 22.4 298.07 30/3.20 7/3.20 22.4 1110.6 98.3 0.12 OSPREY 282.47 22.35 297.68 18/4.47 1/4.47 22.35 897.7 59.6 0.1017
Packing & Delivery

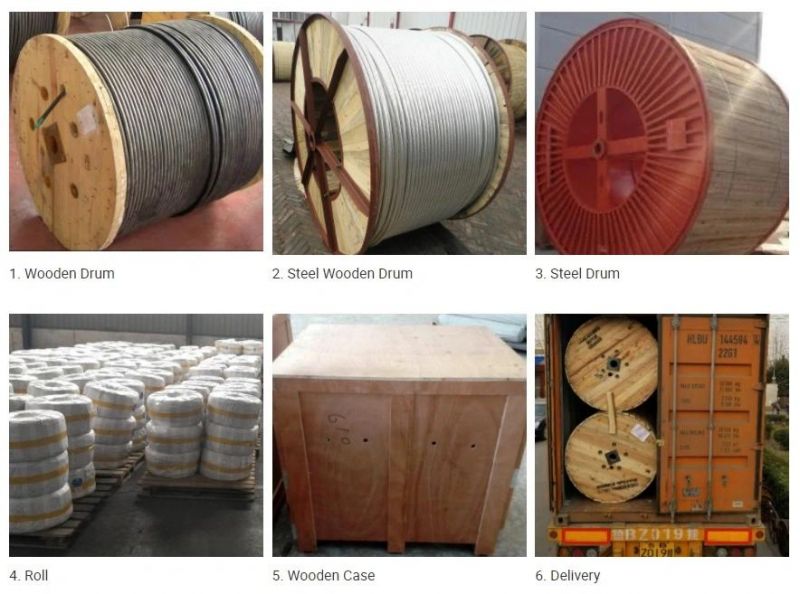

Packing Details : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.
Delivery Details : 3-30 days.

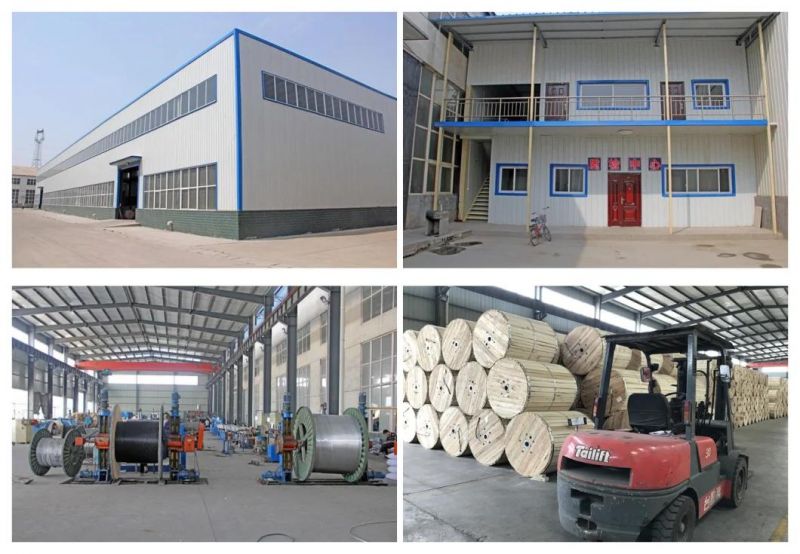

Our Company
