Bare Overhead Condcutor Galvanized Steel Wire/Earth Wire/Stay Wire
HENAN BAOFENG CABLE CO., LTD.- Certification：Ce,ISO,Rosh,CCC,Iecee
- Standard：IEC, ASTM, IEC, BS, DIN, GB,T etc
- Type：Bare
- Material：Galvanized Steel Wire
- Item：Bare Conductor
- Name：ASTM Standard Galvanized Steel Wire (Gsw) Stay Wir
Base Info
- Model NO.：Guy Wire
- Application：Construction
- Sample：Free
- Zinc-Coated Grade：Class a, Class B & Class C
- Brand：Hnbf Cable
- Transport Package：Cable Drum
- Specification：3,8′′ 7,16′′ 5,16′′
- Trademark：HNBF
- Origin：China Henan
- HS Code：7413000000
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
Basic Info.
Model NO. Guy Wire Application Construction Sample Free Zinc-Coated Grade Class a, Class B & Class C Brand Hnbf Cable Transport Package Cable Drum Specification 3/8′′ 7/16′′ 5/16′′ Trademark HNBF Origin China Henan HS Code 7413000000 Production Capacity 500 Kilometer/Kilometers Per MonthProduct Description
Bare Overhead Condcutor Galvanized Steel Wire/Earth Wire/Stay WireProduct Description
1.Brief Description:
The product galvanized steel wire (GSW) is used for the cord of ACSR Condcutor.
2.Application:
The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay wire or guy wire strands are produced for use with poles, towers, or any other form of guying.
Its low cost and ease of production makes galvanized steel wire ideal for mass produced corrosion resistant wire products,which is indispensable in industrial, agricultural.
3.Standard:
We can supply this conductor according to different recognized standards, such as ASTM A475, BS183:1972, GB 1200 and customers' special specifications also can be satisfied.

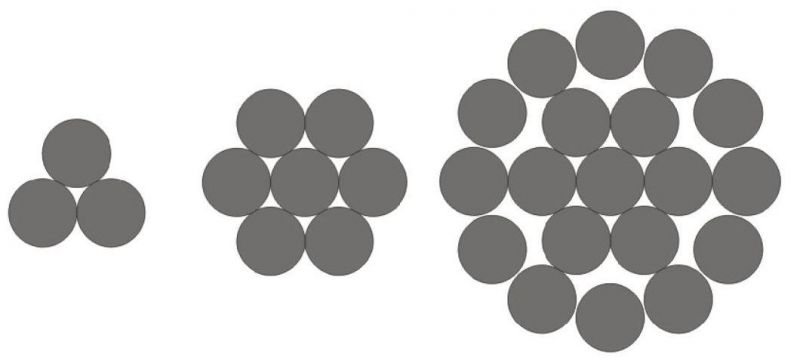

4.Construction:
Concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing,
5.Zinc-coated grade:
Class A ,Class B and Class C
6.Package:
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
| Diameter | Tensile Strength | Weight of Zinc (Class A) |
| mm | mPa | g/m2 |
| 1.24-2.25 | 1340-1620 | 185-215 |
| 2.25-3.00 | 1310-1590 | 230 |
| 3.00-3.50 | 1290-1550 | 245 |
| 3.50-4.25 | 1290-1520 | 260 |
| 4.25-4.75 | 1290-1520 | 275 |
| 4.75-5.50 | 1290-1520 | 290 |
Packing & Delivery

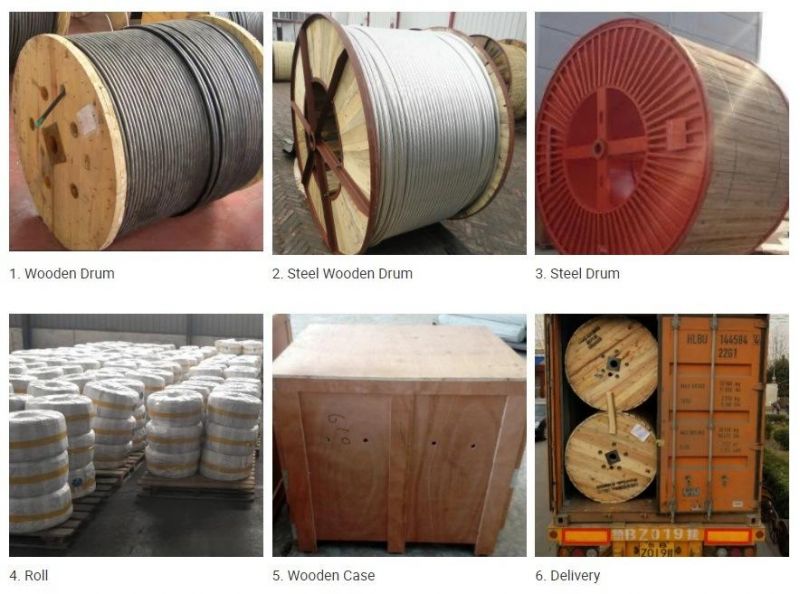

Packing Details : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.
Delivery Details : 3-30 days.

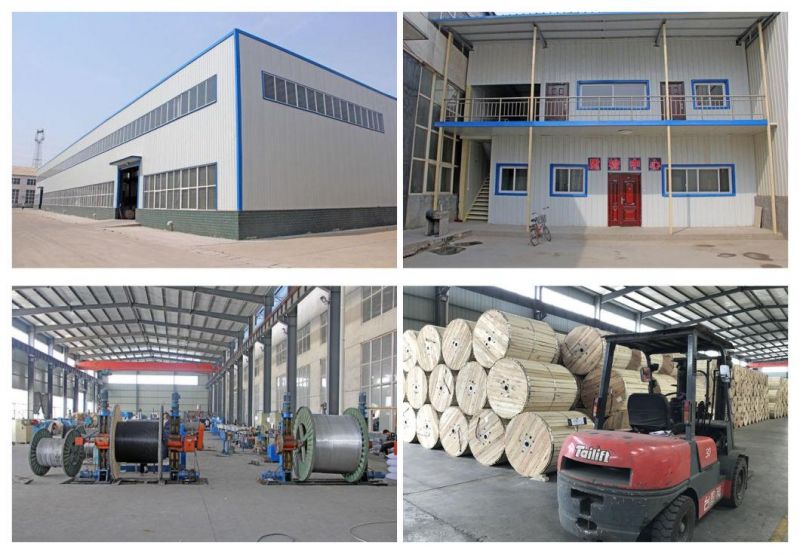

Our Company
