GYXTW Central Beam Tube Fiber Cable for Overhead
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Single-Mode or Multimode Fiber
- Connection Structure：Optical Fiber Cable
- Material Shape：Flat Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYXTW
- Core：Multicore
- Certification：RoHS, CE, ISO9001
- Brand：Tw-Scie or OEM
- Sheath Material：PE or Anti-Track
- Fiber Range：2-12 or 14-24
- Cable Outer Dameter：8.9 or 10.2
- Color of Fiber and Loose Tube：Red, Black, Yellow, Violet, Pink, Aqua
- Color of Fiber and ,Loose Tube：Blue, Orange, Green, Brown, Grey, White
- Armour Material：Aluminum or Steel Tape
- Outer Sheath Material：MDPE , HDPE ,LSZH
- Laying Methods：Aerial
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH I
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：300km,Day
Description
Cable Performance:
| Item | Testing | Test Method | Test Result |
| 1 | Tensile strength IEC 60794-1-E1 | Long-term:1500N Short-tern: 600N Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
| 6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours | No compound flow |
| 8 | Sheath high voltage test | On line test DC 12t kV(t-sheath thickness mm) | No sheath broken down |
Company Overview:

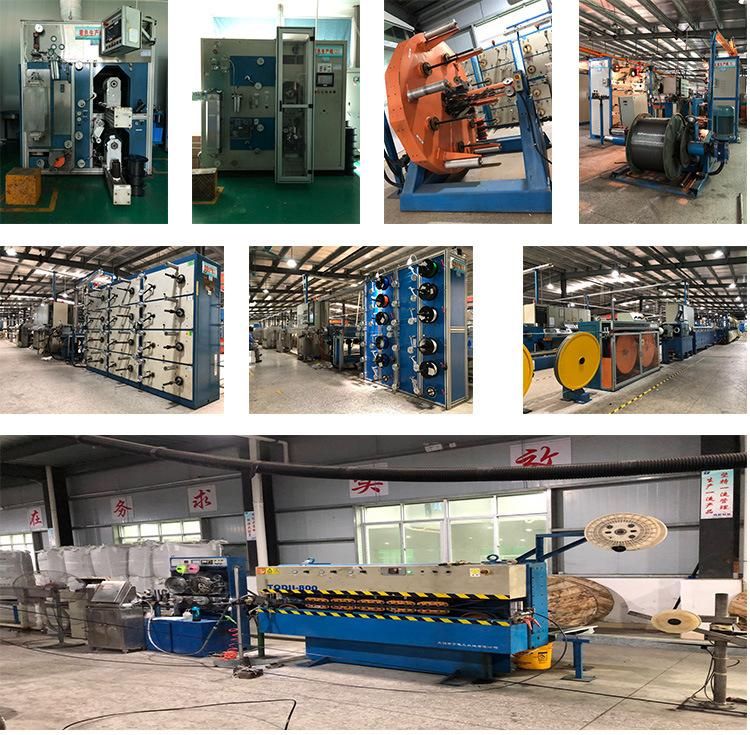

pruduction environment:
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 10 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 10m can be provided freely, but you need pay freight cost.
Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.
Certificates:
