• Model NO.：GJXH Fiber Optic FTTH Cable
• Core：1-4 Core Fiber Optic FTTH Cable
• Certification：RoHS, ISO9001, Reach,Tlc,etc
• Brand：Tw-Scie or OEM
• Sheath Material：Lszh PE
• Model No：Gjxh Fiber Optic FTTH Cable
• Fiber Count：1-4 Core Fiber Optic FTTH Cable
• Brand Name of Fiber：Corning ,Yofc,Draka, ...as Requirement
• Color of Loose Tube：Blue, Orange, Green, Brown
• Strength Member：Steel or FRP
• Jacket Color：Black, White
• Installation Style：Indoor & Outdoor Self-Support Drop Cable
• Cable Dimension：3.1*2.0mm
• Cable Weight：8.2kg,Km
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, Guangdong, China (Mainland)
• HS Code：854470000
• Production Capacity：200km,Day

Basic Info.

Model NO. GJXH Fiber Optic FTTH Cable Core 1-4 Core Fiber Optic FTTH Cable Certification RoHS, ISO9001, Reach,Tlc,etc Brand Tw-Scie or OEM Sheath Material Lszh PE Model No Gjxh Fiber Optic FTTH Cable Fiber Count 1-4 Core Fiber Optic FTTH Cable Brand Name of Fiber Corning ,Yofc,Draka, ...as Requirement Color of Loose Tube Blue, Orange, Green, Brown Strength Member Steel or FRP Jacket Color Black, White Installation Style Indoor & Outdoor Self-Support Drop Cable Cable Dimension 3.1*2.0mm Cable Weight 8.2kg/Km Transport Package Wooden Drum Specification SGS ROHS REACH ISO Trademark TW-SCIE or OEM Origin Dongguan, Guangdong, China (Mainland) HS Code 854470000 Production Capacity 200km/Day

Product Description

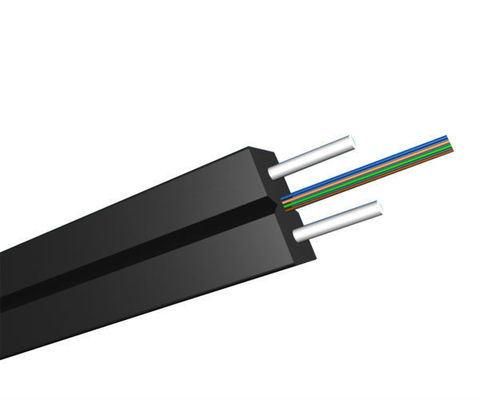

Indoor 1 Core Drop Fiber Optic Cable FTTH Cable

ITEMS	UNITS	Fiber SPECIFICATION
Fiber Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100

 Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this Indoor Drop Fiber Optic Cable FTTH Cable.




Details:

Products' details:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Characteristic:

1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

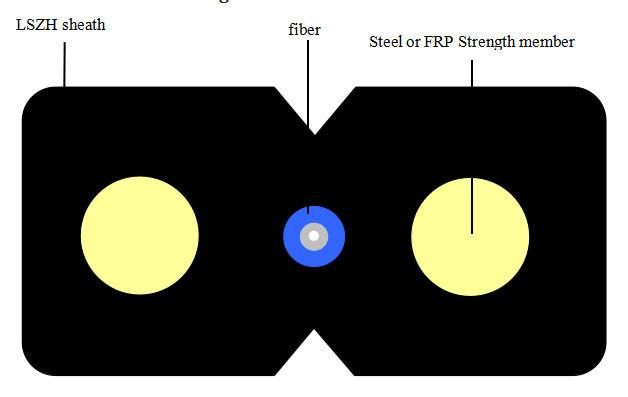

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3 Single steel wire as the additional strength member ensure good performance of tensile strength.

4 Simple structure, light weight and high practicability.

5 Novel flute design, easily strip and splice, simplify the installation and maintenance.

6 Low smoke, zero halogen and flame retardant sheath.

7 Storage / Operating Temperature: -20° C~+60° C. Workshop:



Applicable Fields:
Indoor Drop Fiber Optic Cable FTTH Cable  has been designed for access building cable with good performance and easy installation.

Optical Fiber Technical Date:
