• Model NO.：rubber cable
• Material Shape：Round Wire
• Range of Application：Underground
• Certification：ISO9001, CCC
• Brand：QIFAN
• Color：Black
• Quality Team：50

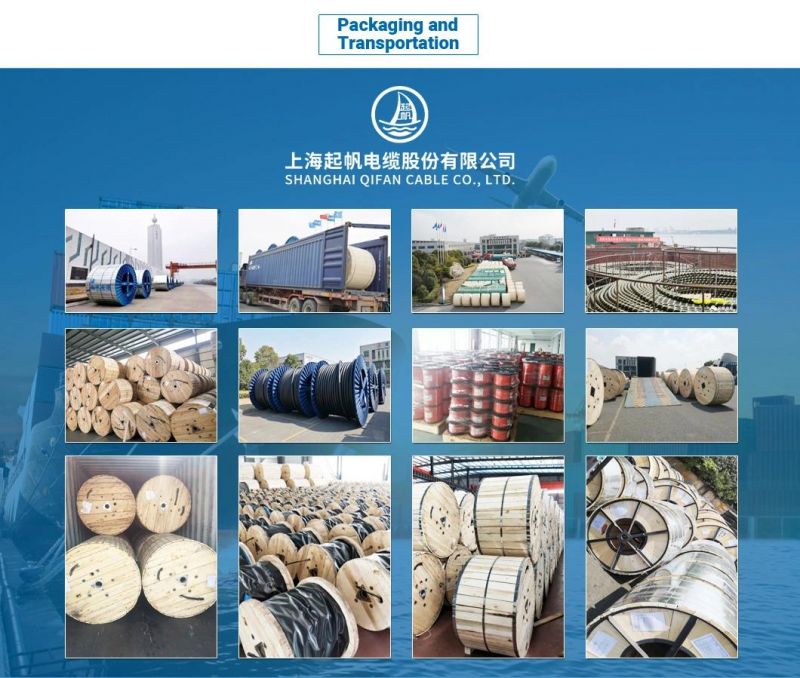

• Transport Package：Wooden Drums
• Specification：copper cable
• Trademark：Qifan
• Origin：China
• HS Code：8544601200
• Production Capacity：5000000000km

Basic Info.

Model NO. rubber cable Material Shape Round Wire Range of Application Underground Certification ISO9001, CCC Brand QIFAN Color Black Quality Team 50 Transport Package Wooden Drums Specification copper cable Trademark Qifan Origin China HS Code 8544601200 Production Capacity 5000000000km

Product Description

Single Core 5KV/8KV, 115 MIL EPR/PVC 133/100%, T/S (1/C) Cable

Type MV-105 Cable is manufactured and tested in accordance with the latest revisions of the following standards and specification:

• UL 1072 - Medium Voltage Power Cables.
• ICEA S-93-639 (NEMA WC 74) - 5-46 kV Shielded Power Cable for Use in the Transmission & Distribution of Electric Energy.
• ICEA S-97-682 (when requested) 5-46 kV Standard for Utility Shielded Power Cable.
• UL 1685 - (AWG 1/0 and larger) -UL Flame Exposure Test.
• IEEE 1202 - Flame Test (70,000 Btu/hr Vertical Tray Test)

CONSTRUCTION
Type MV-105 Cable offers flexible, easy bending insulation, easy cable preparation, fast stripping thermosetting insulation shield, 105°C continuous operating temperature, 100% shield coverage, and it is triple extruded. Cable is sunlight resistant, suitable for direct burial, and listed for cable tray use in sizes 1/0 and larger. SOLONON™ low smoke, non halogen polyolefin jackets and CPE jackets are available upon request.


Scope: This specification covers single conductor EPR (ethylene propylene rubber) insulated, shielded, thermoplastic jacketed power cable for use in aerial, direct burial, cable trays, conduit, and underground duct installations. This cable is capable of operating continuously at a conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload conditions, and 250°C for short circuit conditions, and is rated at 5,000V, 133% insulation level, and 8,000V, 100% insulation level.

Standards: The following standards shall form a part of this specification - UL Standard 1072 for Medium Voltage Power Cable and ICEA S-93-639 (NEMA WC 74) 5-46 kV Shielded Power Cable for Use in the Transmission & Distribution of Electric Energy.

Conductor: The conductor shall be Class B compressed soft or annealed copper in accordance with ASTM Specs B3 and B8 and ICEA Part 2, Section 2.1 and 2.5.

Conductor Shield: The conductor shall be shielded with an extruded semi-conducting thermosetting polymeric layer over the conductor, applied in tandem with and firmly bonded to the insulation.

Insulation : The insulation shall be EPR (ethylene propylene rubber) meeting the requirements of the referenced standards. The nominal thickness shall be 0.115″.

Insulation Shield: The insulation shall be covered with an extruded layer of semi-conducting thermosetting material which shall be identified as being semi-conducting. Over this layer shall be applied a helically-wrapped 5-mil copper tape with 25% overlap.

Jacket: The cable shall be provided with a jacket of black sunlight resistant PVC conforming to the requirements specified for polyvinyl chloride jackets in ICEA. The average thickness shall be in accordance with Table 7-3 of ICEA. Optional SOLONON low smoke, non halogen polyolefin jackets and CPE jackets are available upon request.

Identification: Cable shall be identified by surface printing on the jacket.

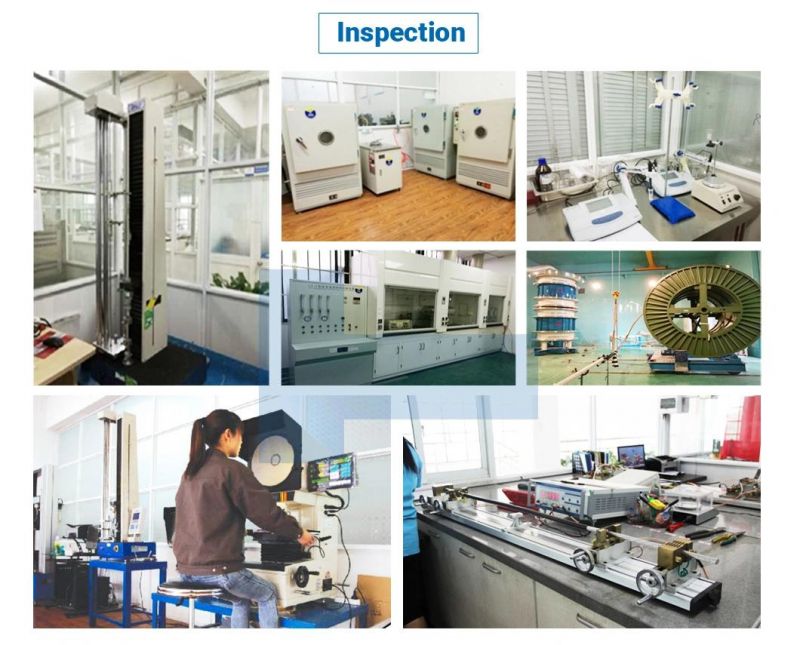

Tests: Qualification tests shall be conducted in accordance with the requirements of AEIC.
