• Model NO.：UTP,FTP CAT6
• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS, CPR,ETL,SGS
• Brand：Risun or OEM
• Color：as Request
• Insulation：HDPE
• UV：Available
• Frame Returdant：Available
• Transport Package：305m,Pull Box, 2boxes,CTN
• Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Mont

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation

67%



Technical Performance:



           Attenuation         RL    Next        PS Next         (Mhz)           (dB/100M)        (dB)     (dB)      (dB/100m)            1               2.0         23    74.3          71.8            4               3.8         23    65.3          61.2           10               6.0         23    59.3            53           16               7.6         23    56.2          48.4           20               8.5         23    54.8          46.5         31.2              10.7         23    51.9          41.3         62.5              15.1         23    47.4          31.5         100              19.1         23    44.3          24.1         125              21.3         21    42.8          20.5        155.5              23.8         21    41.4          16.6         175

              25.3

         21    40.7          13.9         200                27         21    39.8          10.8         250              32.6         19    38.3             5
Materials:

Conductive material: Wire made of copper, solid
Conductor insulation: PE
Drain wire or Nylon Cord
Aluminium foil
The cable inner jacket: PVC, grey color
The cable outer jacket: PE, black color

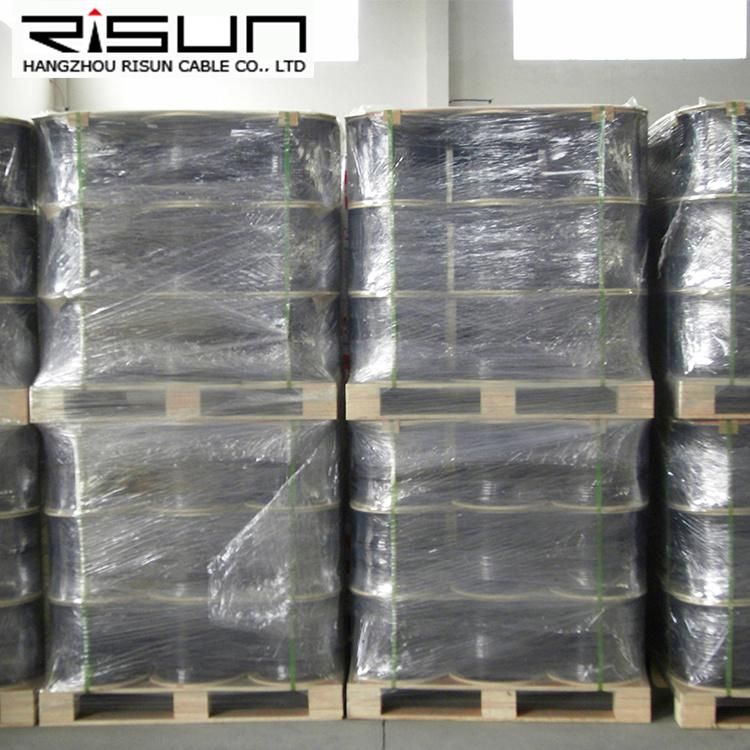

Packing

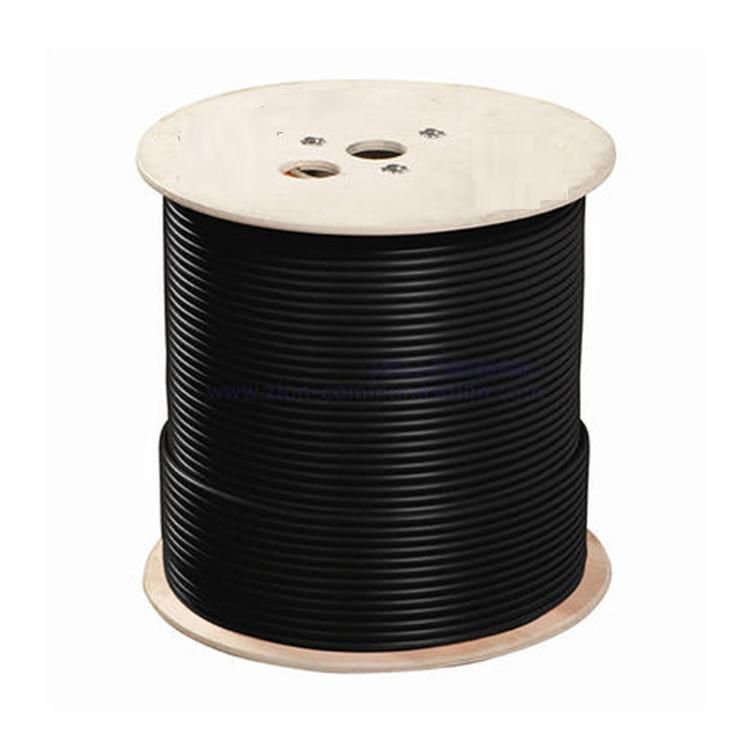

1) packing lengths: 305m/Wooden Drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
