FTP Cat5e Unshielded Twisted Pair Wholesale Factory in Bulk

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP CAT5E
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP Cat5e
  • Brand：Risun or OEM
  • Color：as Request
  • Shield：Pet Foil,Al Foil
  • Insulation：HDPE
  • No.of Conductor：4 Pair 24AWG Bc
  • Drain Wire：26 AWG Tinner Copper
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

Company information
1000 FT Roll PVC FTP Cat5e Stranded Cm-Rated for in-Wall UseProduct information
1000 FT Roll PVC FTP Cat5e Stranded Cm-Rated for in-Wall Use

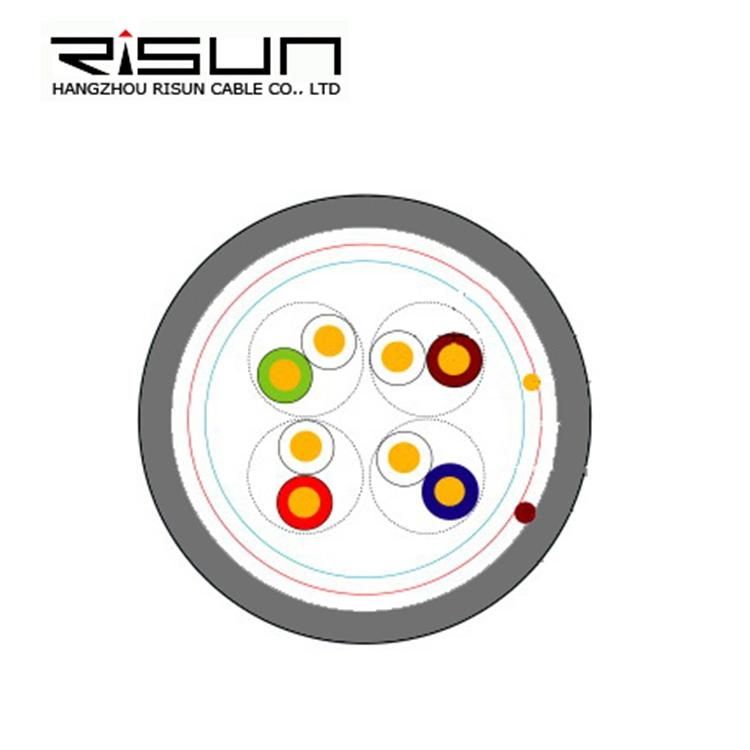

Configuration:

1. Conductor: 0.51±0.01mm(24AWG) Bare copper
2. Insulation: 0.97±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Shield: Al/Pet Foil
5. Drain: 0.4mm TC
4. Sheath: 6.2±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.


Mechanical Properties:ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²

Electrical Properties:Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%

Technical Performance:          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4

Packing:
305m FTP Cat5e Network Cable with High Performance

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.



Production line:



305m FTP Cat5e Network Cable with High Performance

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.
