• Model NO.：FTP CAT6A
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CPR,ETL,SGS
• Model：FTP CTA6a
• Brand：Risun or OEM
• Color：as Request
• Insulation：HDPE
• Shield：Polyester Tape+Al Foil
• No.of Conductor：8 Core, 4pairs
• UV, Jelly, Fr：Available
• Filler：Yes

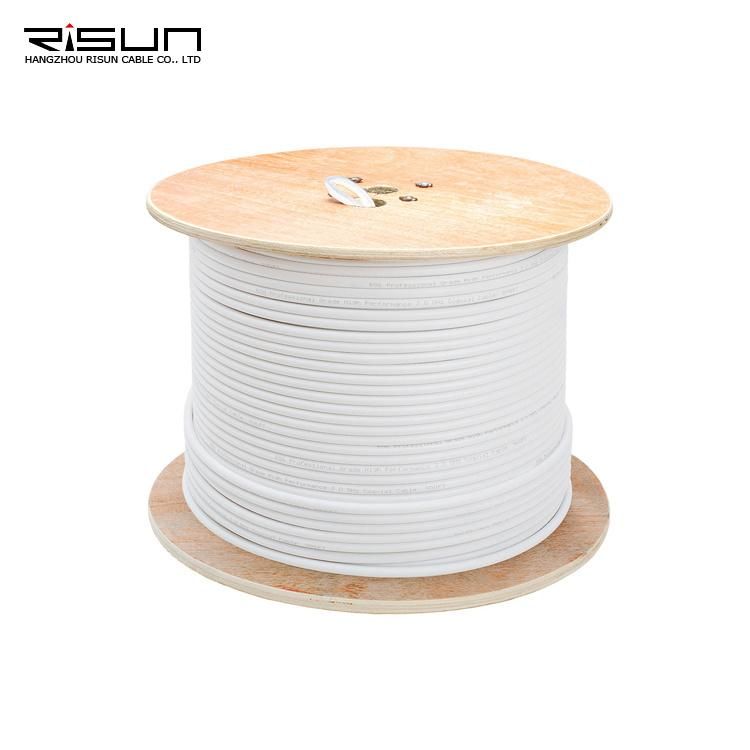

• Transport Package：305m,Wooden Reel,CTN
• Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Mont

ConstructionConductor24AWG(Solid or Strand) CU/CCA/CCSInsulationHDPE 0.90± 0.06mmCores/Pairs8/4Sheath5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile strengthMin. 1.68Kg/mm2Electrical Properties (at 20°C)Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCpacitance UnbalanceMax. 330pF/100mImpendance100+/-15 ohmSpark Test2000VVelocity Propagation67%

	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6

Packing&Shipping:



























Why Choose Us:







FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
