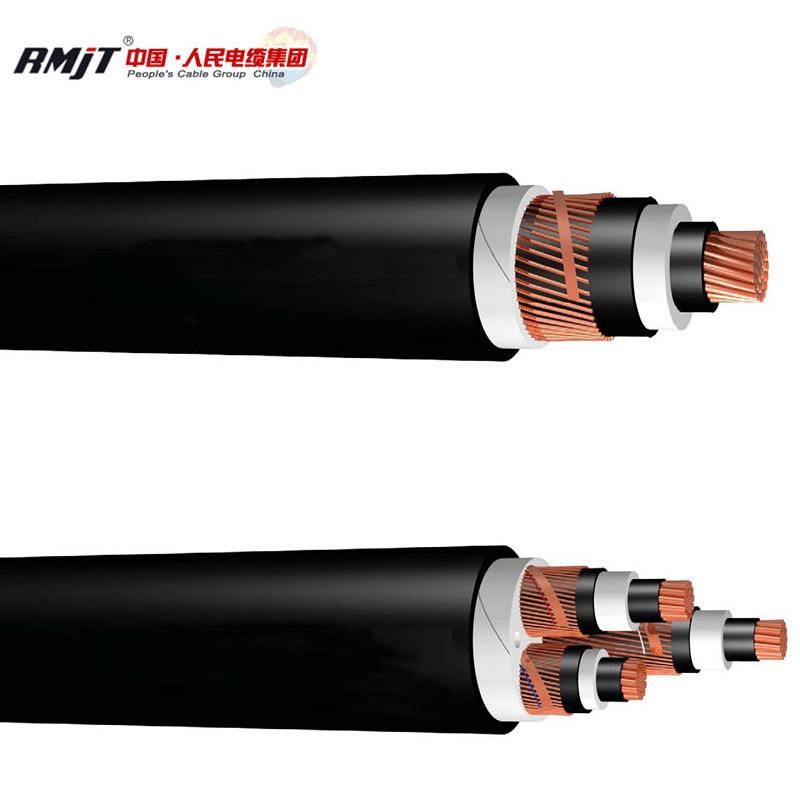

15kv N2xy, Na2xy, N2xs2y, Na2xs2y, N2xsey Mv Power Cable
People's Cable Group Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cable
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE, TUV BV Tis
- Model：N2xsey
- Brand：Rmjt
- Product Name：15kv N2xy, Na2xy, N2xs2y, Na2xs2y, N2xsey Mv Cabl
- Jacket Color：Black, Red, Yellow,Green Grey or According to You
- Standard：IEC, VDE or According to You.
- Armored：Steel Wire or Steel Tape or Aluminium Wire
- Transport Package：Steel&Wooden Drum
- Specification：1.5mm2-800mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：5000000000000000000000km,Month
Description
Note:D is the diameter of cable
Rated Voltage :0..6/6kV,3.6/6kV.
Conductor of cables can be Copper and Aluminum. The cables can be single core, two cores, three cores, four cores(including three main cores and neutral).five cores (including three main cores and neutral and one earthing core, Four main cores and one neutral).The cables can be with armor and without armor.
Rated voltage 6kV (Um=7.2) and 35kV (Um=40.5)
XLPE insulated cable has good electrical and physical properties, resistant to aging, resistant to the environment stress and chemical corrosion operation, with the characteristics of simple structure, easy to use, no drop-height restriction when laying, higher long-term working temperature (90ºC).
2.Standard:
This product is manufactured according to GB/T12706 (eqvIEC60502), GB/T18380-2001(eqv. IEC60332),GB/T19216 (IEC60311) and /or the BS, DIN and/or other types of international standards.And we also design and produce cables according to the requirement of our clients.
3.Specification:ItemCategory A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400
4.Package:
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
5.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
Rated Voltage :0..6/6kV,3.6/6kV.
Conductor of cables can be Copper and Aluminum. The cables can be single core, two cores, three cores, four cores(including three main cores and neutral).five cores (including three main cores and neutral and one earthing core, Four main cores and one neutral).The cables can be with armor and without armor.
Rated voltage 6kV (Um=7.2) and 35kV (Um=40.5)
XLPE insulated cable has good electrical and physical properties, resistant to aging, resistant to the environment stress and chemical corrosion operation, with the characteristics of simple structure, easy to use, no drop-height restriction when laying, higher long-term working temperature (90ºC).
2.Standard:
This product is manufactured according to GB/T12706 (eqvIEC60502), GB/T18380-2001(eqv. IEC60332),GB/T19216 (IEC60311) and /or the BS, DIN and/or other types of international standards.And we also design and produce cables according to the requirement of our clients.
3.Specification:Item
| Number of cores and cross-section | Shape of conductor | Conductor diameter | Nominal insulation thickness | Diameter over insulation | Nominal thickness sheath | Outer diameter (approx.) | Bending radius (min.) | Weight (approx.) |
| (approx.) | (approx.) | |||||||
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | 24 | 360 | 582 |
| 1x50/16 | RM | 8.3 | 3.4 | 16.4 | 2.5 | 25 | 375 | 644 |
| 1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 26 | 390 | 727 |
| 1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 28 | 420 | 830 |
| 1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 450 | 929 |
| 1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 31 | 465 | 1114 |
| 1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 32 | 480 | 1250 |
| 1x240/25 | RM | 18.1 | 3.4 | 26.2 | 2.5 | 35 | 525 | 1457 |
| 1x300/25 | RM | 20.2 | 3.4 | 28.3 | 2.5 | 37 | 555 | 1680 |
| 1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 40 | 600 | 2114 |
| 1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 43 | 645 | 2483 |
| 1x630/35 | RM | 29.9 | 3.4 | 38 | 2.5 | 47 | 705 | 2930 |
| 1x800/35 | RM | 34.2 | 3.4 | 42.3 | 2.6 | 51 | 765 | 3528 |
| 1x1000/35 | RM | 38.1 | 3.4 | 46.2 | 2.7 | 57 | 855 | 4422 |
| 1x1200/35 | RM | 41.2 | 3.4 | 49.3 | 2.8 | 59 | 885 | 4824 |

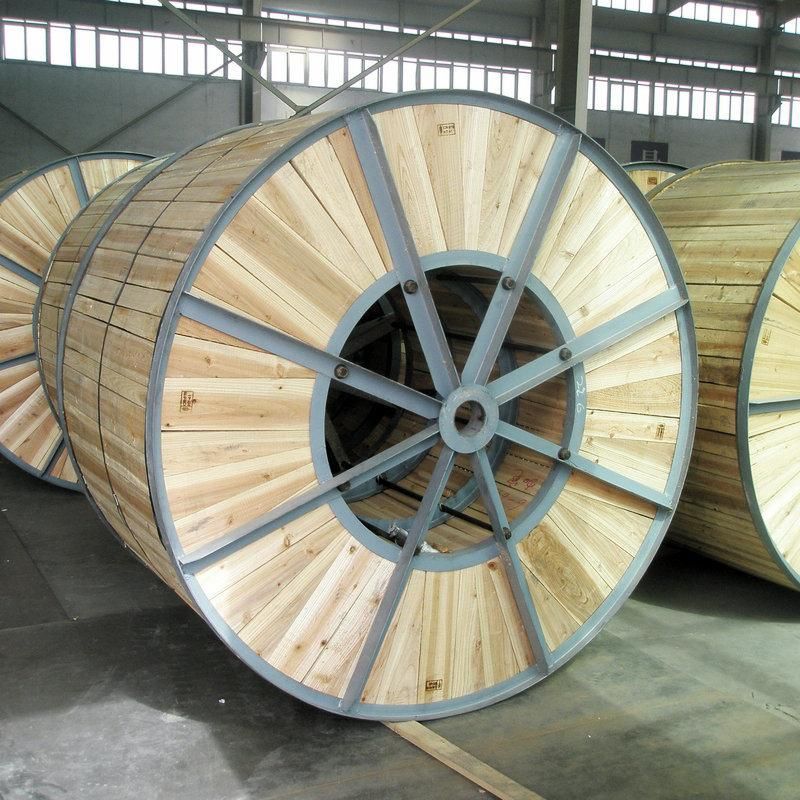

4.Package:
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
5.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
