• Model NO.：AAAC All Aluminium alloy Conductor
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001
• Brand：Rmjt
• Model No.：AAAC Conductor
• Standard：ASTM B399 DIN4201
• Construction：Aluminium Alloy Cable Strand
• Voltage：High Voltage
• Material：Aluminium Alloy 6201
• Payment：20%T,T or L,C
• Colour：Sliver
• Delivery Time：20 Days
• MOQ：1 Ton
• Transport Package：Wooden Drum
• Specification：10MM2~500MM2 AAAC conductor
• Trademark：RMJT
• Origin：China
• HS Code：7614900000
• Production Capacity：30ton,Day

Basic Info.

Model NO. AAAC All Aluminium alloy Conductor Material Shape Round Wire Range of Application Overhead Certification ISO9001 Brand Rmjt Model No. AAAC Conductor Standard ASTM B399 DIN4201 Construction Aluminium Alloy Cable Strand Voltage High Voltage Material Aluminium Alloy 6201 Payment 20%T/T or L/C Colour Sliver Delivery Time 20 Days MOQ 1 Ton Transport Package Wooden Drum Specification 10MM2~500MM2 AAAC conductor Trademark RMJT Origin China HS Code 7614900000 Production Capacity 30ton/Day

Product Description

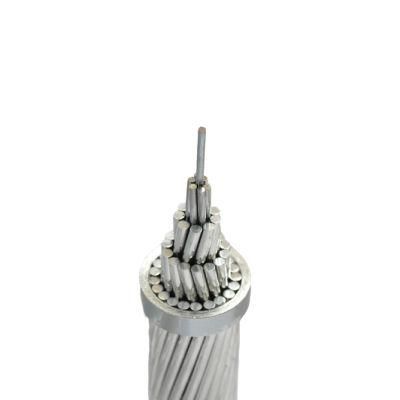

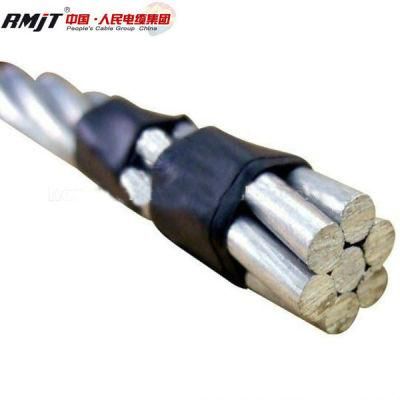

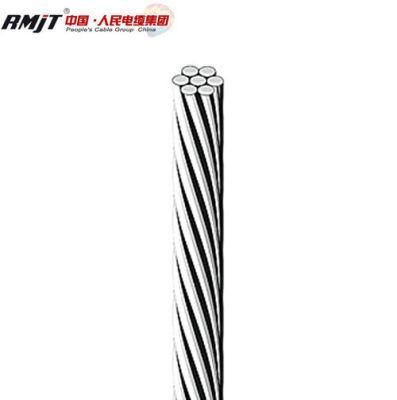

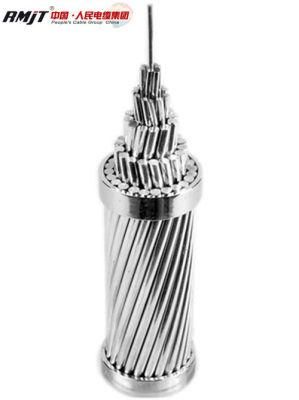

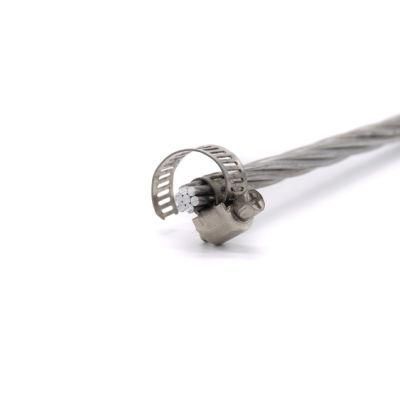

aluminum alloy price AAAC All Aluminium alloy Conductor

Application
All Aluminum Alloy Conductor aaac cable Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR

AAAC-6201 bare conductor meets or exceeds the following ASTM standards
DIN 48201 Concentric-Lay-Stranded 6201 Aluminum Alloy Conductors.
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

Specification
Aluminum alloy 6201 wires. Concentrically stranded.

Code number	Calculated area	Number of wires	Diameter of wire	Overall diameter of conductor	Linear mass	Rated tensile strength	Max. DC resistance at 20ºC
mm2	mm2		mm	mm	kg/km	daN	Ω/km
16	15.89	7	1.7	5.1	43	444	2.091
25	24.25	7	2.1	6.3	66	677	1.3703
35	34.36	7	2.5	7.5	94	960	0.9669
50	49.48	7	3	9	135	1382	0.6714
50	48.35	19	1.8	9	133	1350	0.6905
70	65.81	19	2.1	10.5	181	1838	0.5073
95	93.27	19	2.5	12.5	256	2605	0.3579
120	116.99	19	2.8	14	322	3268	0.2854
150	147.11	37	2.25	15.8	406	4109	0.2274
185	181.62	37	2.5	17.5	500	5073	0.1842
240	242.54	61	2.25	20.3	670	6774	0.1383
300	299.43	61	2.5	22.5	827	8363	0.112
400	400.14	61	2.89	26	1104	11176	0.0838
500	499.63	61	3.23	29.1	1379	13960	0.06709
625	626.2	91	2.96	32.6	1732	17490	0.054
800	802.09	91	3.35	36.9	2218	22402	0.0418
1000	999.71	91	3.74	41.1	2767	27922	0.0335

Packing and shipping


Production LIne
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).

FAQ

1. What is our company's main advantage?

We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.



2.  What is our payment term?

Generally our payment term is T/T or L/C at sight in trial business.



3. What is the package of the cable ?

The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer's requirment.



4. What is the delivery time?

Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.



5.Can we provide customers free sample for checking?

Yes, free sample is available for checking, normally courier charge is on customers.
