• Model NO.：YJLSY
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Sheath：MDPE
• Transport Package：Wooden Drum, Wooden Iron Drum, Steel Drum, etc
• Specification：GB, IEC, BS, ASTM, etc.
• Trademark：Yifang
• Origin：China
• HS Code：8544464120
• Production Capacity：500, 000km Per Month

Basic Info.

Model NO. YJLSY Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Sheath MDPE Transport Package Wooden Drum, Wooden Iron Drum, Steel Drum, etc Specification GB, IEC, BS, ASTM, etc. Trademark Yifang Origin China HS Code 8544464120 Production Capacity 500, 000km Per Month

Product Description

Applications
The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.
This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90 ºC and its voltage of service for all the applications is 600 V.
Standards
ASTM IEC  BS and so on

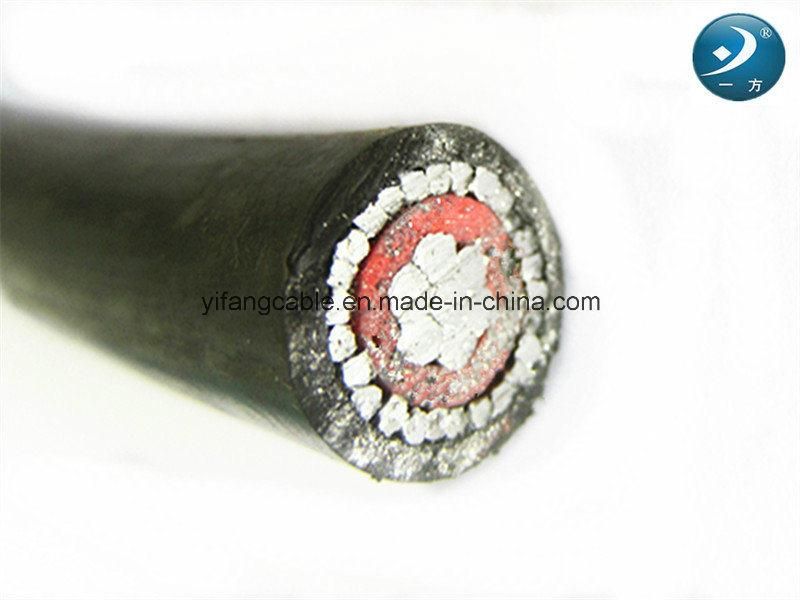

Construction of concentric cable

1.Solid or stranded aluminium conductor

2.Insulation with XLPE or PE or PVC

3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,

4.For three or four conductors cable , parallel conductor or stranded conductor

5.PVC filler

6.Helical mesh of copper wires

7. Wrapping tape

8.Black color jacket of PE or PVC

Voltage: 600/1000v

Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 70°C
