Cable NFC 33 226 12/20 (24) Kv 18/30 (36) Kv 50~800mm2
YIFANG ELECTRIC GROUP INC.- Application:Construction, Underground, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:AC Cable
- Insulation Material:XLPE
- Sheath Material:PE
- Material Shape:Round Wire
Base Info
- Model NO.:YJLY
- Wire Core Material:Bare Copper Wire
- Certification:ISO, CCC, CE
- Model:Yjy
- Brand:Yifang
- Product Name:Cable NFC 33 226 12,20 (24) Kv 18,30 (36) Kv
- Transport Package:Wooden Drum, Wooden Iron Drum, Steel Drum, etc
- Specification:IEC, BS, DIN, ASTM, JIS, GOST, ETC
- Trademark:Yifang
- Origin:China
- HS Code:8544601200
- Production Capacity:500km Per Month
Description
Basic Info.
Model NO. YJLY Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjy Brand Yifang Product Name Cable NFC 33 226 12/20 (24) Kv 18/30 (36) Kv Transport Package Wooden Drum, Wooden Iron Drum, Steel Drum, etc Specification IEC, BS, DIN, ASTM, JIS, GOST, ETC Trademark Yifang Origin China HS Code 8544601200 Production Capacity 500km Per MonthProduct Description
Product Details

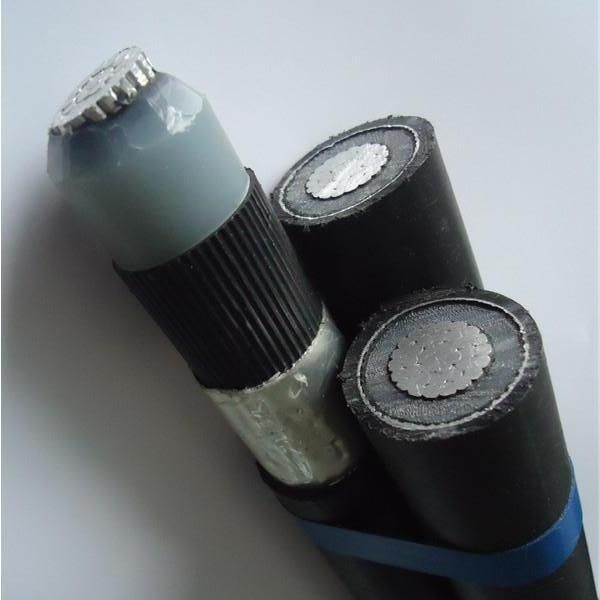

Cable Aerial Twists NFC 33 226 12/20 (24) KV

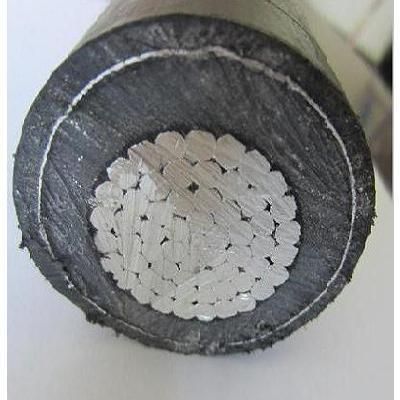

It consists of 3 phase conductors with aluminum conductor.
The aluminum screen is designed to ground the short circuit currents, ie 1000 A for 1 second for underground networks.
Product Introduction
ELECTRICAL SPECIFICATIONS
The short circuit characteristics are calculated according to IEC 60949.
- The resistance to the intensity in C.C. (1s) characterizes the current in the screen.
- The permissible C.C. current characterizes the maximum current in the conductor for 1s.
Product Parameters
Sizes | Cable Dia.(mm) | Standard Length(m) |
1x50 | 27.0 | 1000 |
1x95 | 31.0 | 1000 |
1x150 | 35.0 | 1000 |
1x240 | 39.0 | 1000 |
