High Voltage (35kv~220kv) XLPE Insulated Armoured Power Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Super-high Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：high voltage cable
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, SGS
  • Model：Yjlw03, Yjlw02
  • Brand：Yifang
  • Conductor：Seperated Conductor
  • Metallic Shaeth：Corrugated Aluminium
  • Volatge Degree：48,66kv to 127,220kv
  • Transport Package：Steel Drum
  • Specification：185mm2 to 2000mm2
  • Trademark：YIFANG OR OEM
  • Origin：China
  • HS Code：8544601300
  • Production Capacity：100km Per Month

Description

SectionInsulation ThicknessMetallic Sheath ThicknessSheath ThicknessOverall DiameterCable WeightElectrical ResistanceDC.20ºCNo.xmm2mmmmmmmmkg/kmΩ/km48/66 kV1x18514.52.04.068.352500.09911x24014.52.04.076.757400.07541x30014.52.04.079.164400.06011x40014.52.04.082.374800.04701x50014.52.04.085.987500.03661x63014.52.04.085.9103600.02831x80014.52.04.094.3122600.02211x80014.52.04.096.4137900.02211x100014.52.04.5102.8154700.01761x120014.52.04.5106.2175800.01511x140014.52.05.0110.4201100.01291x160014.52.05.0114.8225100.01131x200014.52.05.0121.8270500.000964/110 kV1x24019.02.04.085.077500.07541x30018.52.04.086.183600.06011x40017.52.04.086.991200.04701x50017.02.04.089.1102600.03661x63016.52.04.592.1117500.02831x80016.02.04.595.0135200.02211x80016.02.04.5100.0143200.02211x100016.02.34.5105.4167600.01761x120016.02.35.0109.8189000.01511x140016.02.35.0114.0215300.01291x160016.02.35.0117.4239300.01131x200016.02.35.0124.4277500.0009127/220 kV1x30027.02.45.0112.5109300.06011x40027.02.45.0118.0117500.04701x50027.02.45.0121.2128800.03661x63026.02.45.0123.0143200.02831x80025.02.45.0124.9157200.02211x80016.02.04.5100.0143200.02211x100024.02.65.0129.4205000.01761x120024.02.65.0132.6228100.01511x140024.02.65.0136.8254500.01291x160024.02.65.0140.6280500.01131x200024.02.85.0147.5322100.0009

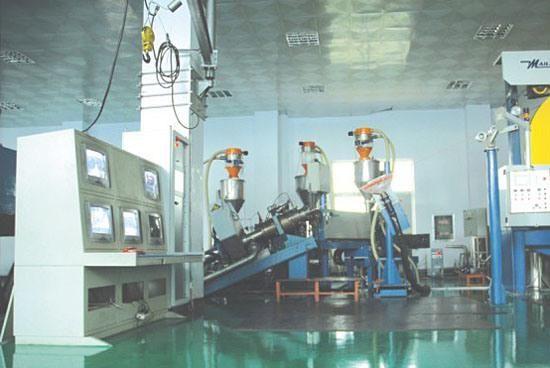

Reference Equipment Picture

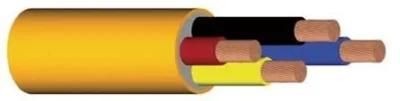

High Voltage (35kv~220kv) XLPE Insulated Armoured Power Cable

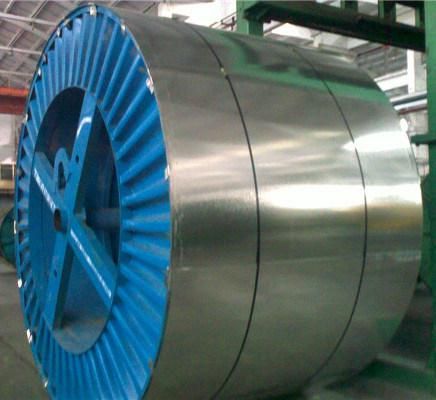

Package & Delivery
High Voltage (35kv~220kv) XLPE Insulated Armoured Power Cable
High Voltage (35kv~220kv) XLPE Insulated Armoured Power Cable
