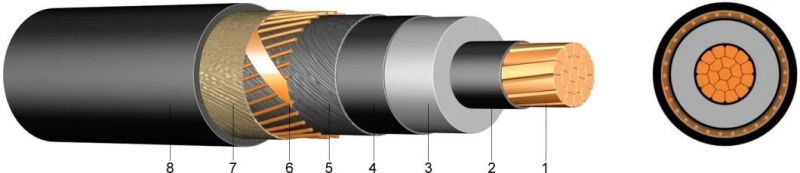

BS 6622 Single Core Armoured 33kv XLPE Stranded Copper Conductors
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：33kv cable BM51
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
cross-sectional area mmsq
Minimum average thickness of insulation mm
Nominal diameter over insulation Please refer to our technical department for further information
1000
Installation
cross-sectional area mmsq
Approximate cable weight kg/m
Nominal drum length Please refer to our technical department for further information
1000
Electrical Performance
cross-sectional area mmsq
Maximum DC resistance of conductor at 20 ºC uohms/m
Maximum AC resistance of conductor at 90 ºC uohms/m
Reactance at 50Hz Please refer to our technical department for further information
1000
Ratings
Cross-sectional area Current Ratings
Short circuit ratings
Laid in ground
Amps
Drawn into ducts
Amps
Laid in air
Amps
One second short circuit rating of conductor
KA
One second short circuit rating of copper per core
KA
50
220
210
260
6.8
Typically
less
then
1kA
70
270
260
320
9.8
95
320
300
380
13.3
120
360
340
440
17.2
150
410
370
490
21.2
185
450
400
560
26.6
240
510
450
650
34.9
300
570
490
730
43.8
400
640
530
830
57.3
500
700
570
940
72.3
630
760
610
1050
91.2
800
Please refer to our technical department for further information
1000
