CIS Cable 12/20 (24) KV 18/30 (36) KV Al MV Underground Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：Cis Cable
- Wire Core Material：Al , Cu
- Certification：ISO, CCC, CE, RoHS, Kema
- Model：Cis Cable
- Brand：Yifang Cable
- Core：1core, 3core
- Sheath Colour：Black
- Standard：NFC 33226
- Applicable：Direct Burial
- Transport Package：Drum
- Specification：25mm2-630mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544601200
- Production Capacity：150km Per Month
Description
Basic Info.
Model NO. Cis Cable Wire Core Material Al , Cu Certification ISO, CCC, CE, RoHS, Kema Model Cis Cable Brand Yifang Cable Core 1core, 3core Sheath Colour Black Standard NFC 33226 Applicable Direct Burial Transport Package Drum Specification 25mm2-630mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544601200 Production Capacity 150km Per MonthProduct Description
CIS Cable 12/20 (24) kV 18/30(36) kV AL MV Underground Cable
1.Application:
Cable HTA CIS is used for public power distribution network 1~35KV.
2.Reference standard : NFC 33-226 IEC60502 and special requirements of clients

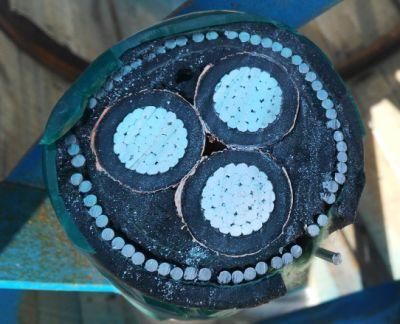

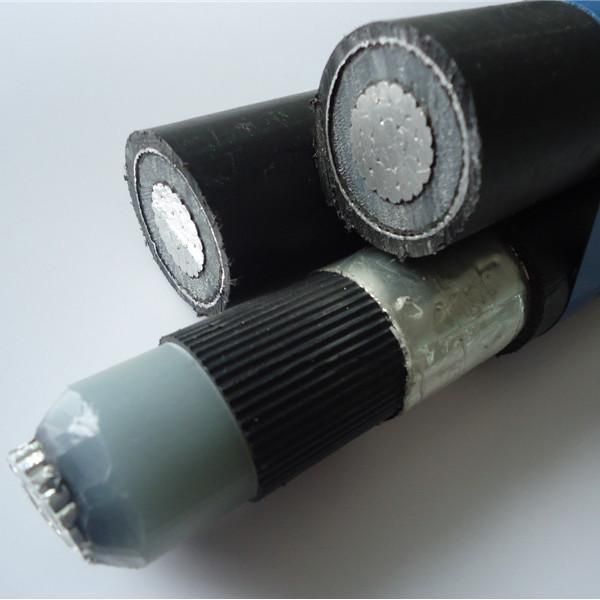

3.Cable structure :
3.1 Conductor material: Aluminium
3.2 Conductor Screen: Semi-conducting compound
3.3 Insulation: XLPE
3.4 Insulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over it
3.5 Metallic screen layer: Longitude aluminum plastic tape
3.6 Outer sheath: PE

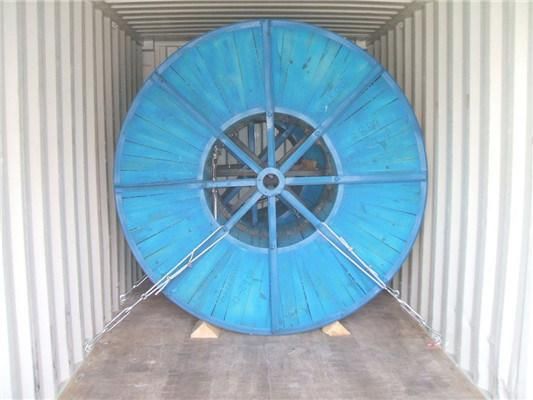

4.Packaging
Roll / Wooden drum / Iron-wooden drum
5.Export areas: African Countries
6. Certificate available : ISO ,CE , SGS, SONCAP , BV , COC ETC
