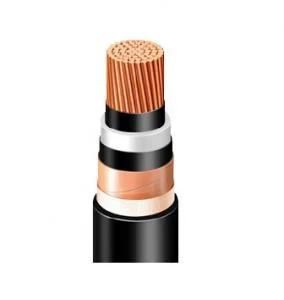

3.6/6 (7.2) Kv XLPE Insulated PVC Sheathed Unarmoured Power Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：6kV cable BM38
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
Conductor
Conductor Nominal Thickness Insulation Copper Nominal Thickness
screen
of Sheath
( mm )
Approx
Overall Approx Insulation Conductor
Conductor Nominal Thickness Insulation Copper Nominal Thickness
screen
of Sheath
( mm )
Approx
Overall Approx Insulation
resistance at
15.6°C (Min.)
( Mohm/km)
Size
( mm2 )
Shape
Outside
diameter
( mm )
10
16
25
35
50
N.C.
N.C.
C.C.
C.C.
C.C.
4.05
5.10
5.91
6.95
8.05
0.8
0.8
0.8
0.8
0.8
2.5
2.5
2.5
2.5
2.5
0.8
0.8
0.8
0.8
0.8
0.1
0.1
0.1
0.1
0.1
1.9
2.0
2.2
2.3
2.4
35.2
37.6
39.5
41.9
44.4
1282
1560
1902
2291
2752
2030
1740
1320
1200
1100
70
95
120
150
185
C.C.
C.C.
C.C.
C.C.
C.C.
9.67
11.39
12.33
14.24
15.98
0.8
0.8
0.8
0.8
0.8
2.5
2.5
2.5
2.5
2.5
0.8
0.8
0.8
0.8
0.8
0.1
0.1
0.1
0.1
0.1
2.5
2.6
2.7
2.8
2.9
48.4
52.4
55.8
59.0
63.0
3433
4477
5348
6290
7560
950
850
460
700
660
240
300
400
C.C.
C.C.
C.C.
18.32
20.65
23.33
0.8
0.8
0.8
2.6
2.8
3.0
1.0
1.0
1.0
0.1
0.1
0.1
3.2
3.4
-
69.9
76.4
83.6
9663
11834
14736
620
600
570
