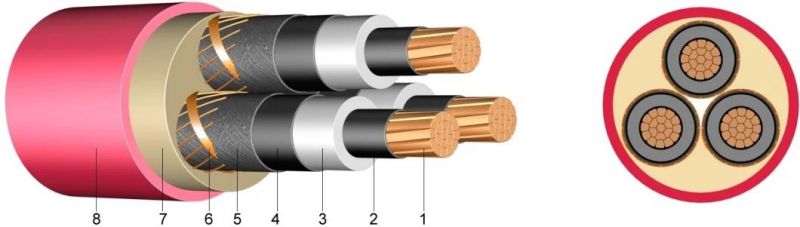

BS 6622 Three Core Armoured 33kv XLPE Stranded Copper Conductors

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：33kv cable BM53
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE
  • Model：YJV
  • Brand：Yifang
  • Option Conductor：Aluminum
  • Transport Package：Wooden or Wooden-Steel Drum
  • Specification：multicores
  • Trademark：Yifang Cable
  • Origin：Zhengzhou, China
  • HS Code：8544601200
  • Production Capacity：300km,Month

Description

cross-sectional area mmsq

Minimum average thickness of insulation mm

Nominal diameter over insulation

Cross-sectional area
mmsq

Current Ratings

Short circuit ratings

Laid in ground
Amps

Drawn into ducts
Amps

Laid in air
Amps

One second short circuit rating of conductor
KA

One second short circuit rating of copper per core
KA

50

210

185

225

6.8

Typically

less

then

1kA

70

255

225

275

9.8

95

295

260

330

13.3

120

335

300

380

17.2

150

375

335

430

21.2

185

420

380

490

26.6

240

480

430

570

34.9

300

530

480

650

43.8

400

580

530

720

57.3
