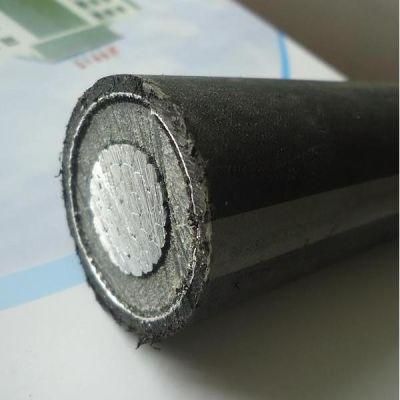

BS 6622 Single Core Unarmoured (Copper Wire Screened) 11kv XLPE Stranded Aluminium Conductors
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：11kv cable BM48
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
cross-sectional area mmsq
Minimum average thickness of insulation mm
Nominal diameter over insulation
mm
Nominal area of copper wire screen
mm sq
Nominal average thickness of PVC oversheath
mm
Nominal overall diameter of cable mm
70
3.4
18.8
16
1.7
25.7
95
3.4
20.5
16
1.8
27.4
120
3.4
22.0
16
1.8
29.2
150
3.4
23.3
16
1.9
30.5
185
3.4
25.1
16
1.9
32.5
240
3.4
27.3
25
2
34.9
300
3.4
29.6
25
2.1
37.2
400
3.4
32.3
35
2.2
40.1
500
3.4
35.2
35
2.3
13.2
630
3.4
39.1
35
2.4
17.4
Installation
cross-sectional area mmsq
Approximate cable weight kg/m
Nominal drum length Cross-sectional area
mmsq
Current Ratings
Short circuit ratings
Laid direct in ground
Amps
Drawn into ducts
Amps
Laid in air
Amps
One second short circuit rating of conductor
KA
One second short circuit rating of copper per core
KA
70
210
215
240
6.3
2.6
95
250
255
295
8.5
2.6
120
280
285
335
11.0
2.6
150
320
315
380
13.5
2.6
185
360
350
435
17.0
2.6
240
415
405
510
22.3
4.3
300
475
455
600
28.0
4.3
400
540
510
700
36.6
5.8
500
610
570
810
46.2
5.8
630
680
640
930
58.3
5.8
