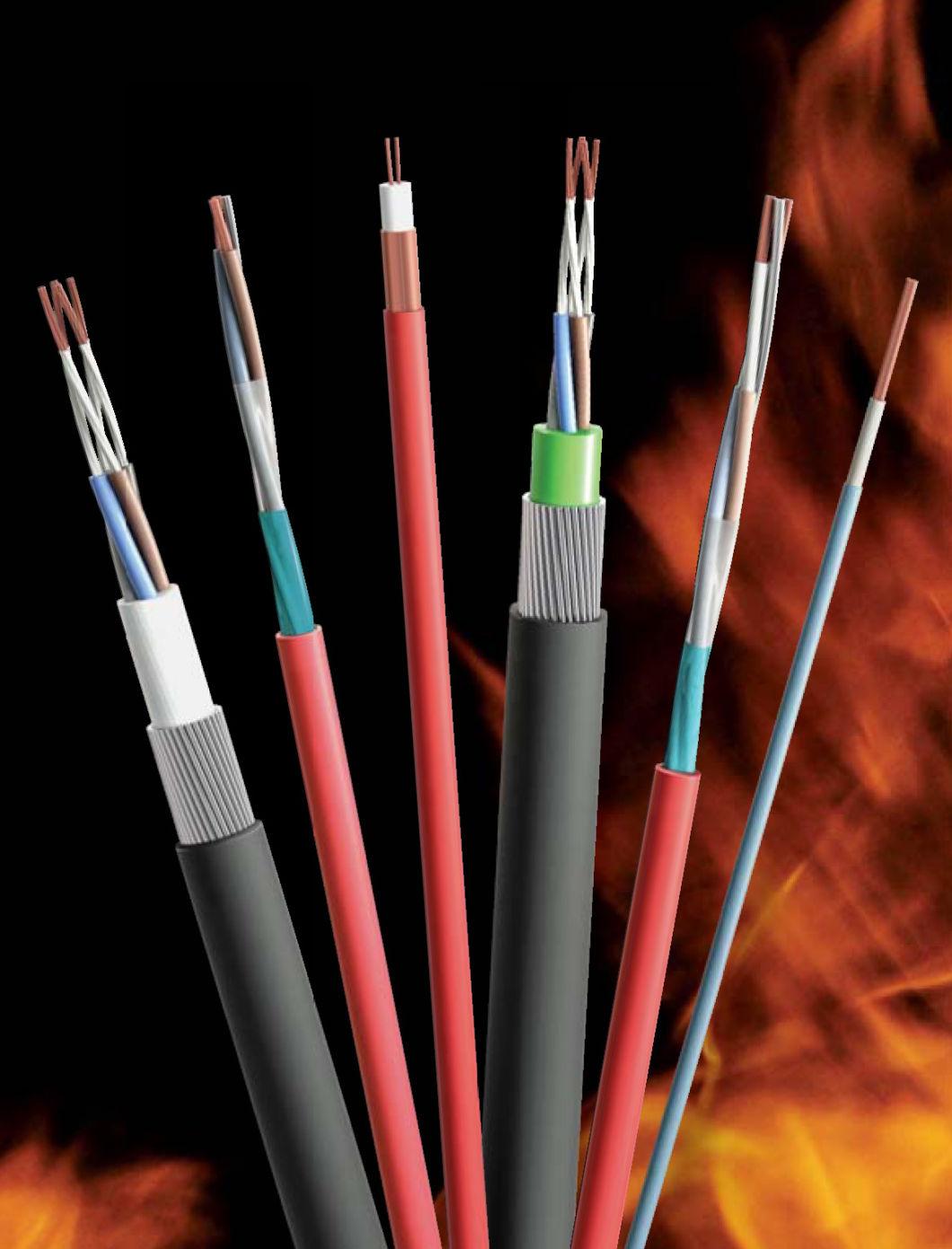

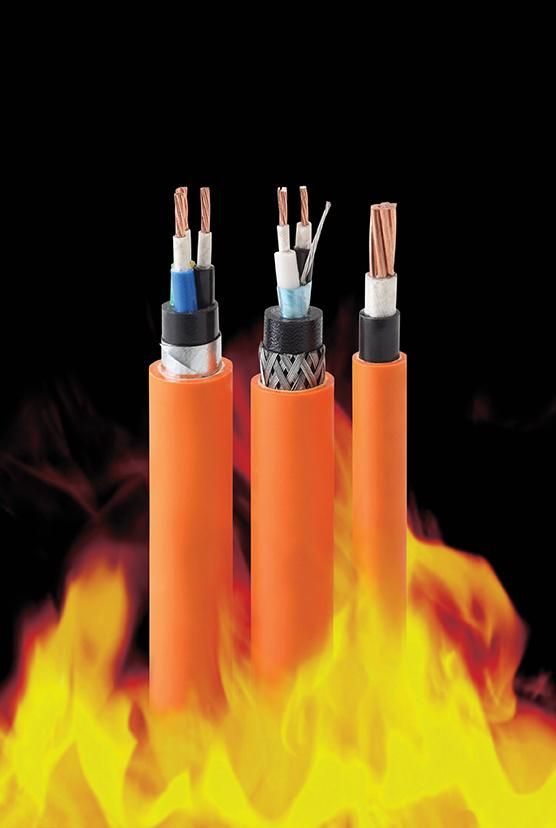

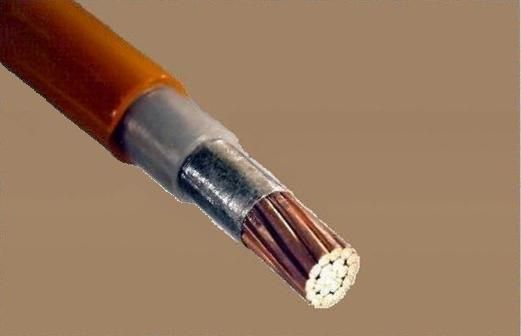

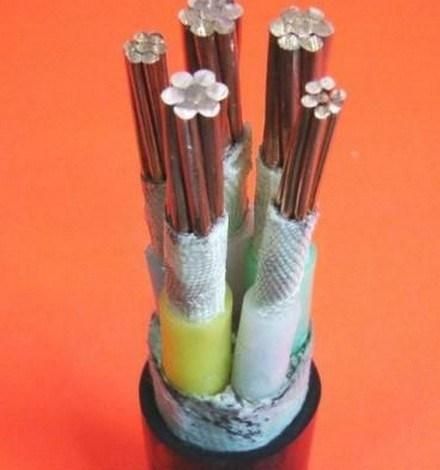

| No. cores & nominal cross sectional area of conductor | Current Rating | Voltage Drop | Maximum DC Conductor Resistance @ 20oC | Gross cross Sectional Area of Armour | Nominal Overall Diameter | Nominal Weight |
| Laid Direct | Single Way Ducts | Free Air | dc | Single Phase ac |
| no x mm2 | Amps | Amps | Amps | mV / A/M | mV / A/ M | Ω / Km | mm2 | mm | Kg / Km |
| 2 x 1.50 | 38.00 | 31.00 | 31.00 | 31.00 | 31.00 | 12.10 | 15.00 | 12.00 | 295.00 |
| 2 x 2.50 | 49.00 | 41.00 | 41.00 | 19.00 | 19.00 | 7.41 | 17.00 | 13.10 | 352.00 |
| 2 x 4.00 | 65.00 | 53.00 | 55.00 | 12.00 | 12.00 | 4.61 | 19.00 | 14.10 | 424.00 |
| 2 x 6.00 | 81.00 | 67.00 | 70.00 | 7.90 | 7.90 | 3.08 | 22.00 | 15.20 | 504.00 |
| 2 x 10.00 | 109.00 | 89.00 | 95.00 | 4.70 | 4.70 | 1.83 | 26.00 | 16.90 | 620.00 |
| 2 x 16.00 | 141.00 | 115.00 | 126.00 | 2.90 | 2.90 | 1.15 | 42.00 | 19.50 | 954.00 |
| 2 x 25.00 | 183.00 | 148.00 | 164.00 | 1.85 | 1.90 | 0.727 | 42.00 | 25.50 | 1330.00 |
| 2 x 35.00 | 219.00 | 178.00 | 202.00 | 1.35 | 1.35 | 0.524 | 60.00 | 29.10 | 1785.00 |
| 2 x 50.00 | 259.00 | 211.00 | 244.00 | 0.98 | 1.00 | 0.387 | 68.00 | 32.20 | 2165.00 |
| 2 x 70.00 | 317.00 | 260.00 | 306.00 | 06.67 | 0.69 | 0.268 | 80.00 | 28.80 | 2445.00 |
| 2 x 95.00 | 381.00 | 313.00 | 378.00 | 0.49 | 0.52 | 0.193 | 113.00 | 33.90 | 3385.00 |
| 2 x 120.00 | 433.00 | 357.00 | 437.00 | 0.39 | 0.42 | 0.153 | 125.00 | 37.20 | 4065.00 |
| 2 x 150.00 | 485.00 | 401.00 | 499.00 | 0.31 | 0.35 | 0.124 | 138.00 | 39.90 | 4745.00 |
| 2 x 185.00 | 547.00 | 455.00 | 576.00 | 0.25 | 0.29 | 0.0991 | 191.00 | 45.00 | 6095.00 |
| 2 x 240.00 | 632.00 | 527.00 | 680.00 | 0.195 | 0.24 | 0.0754 | 215.00 | 50.00 | 7575.00 |
| 2 x 300.00 | 708.00 | 592.00 | 775.00 | 0.155 | 0.21 | 0.0601 | 235.00 | 55.00 | 9165.00 |
| 2 x 400.00 | 799.00 | 669.00 | 892.00 | 0.120 | 0.190 | 0.0470 | 265.00 | 57.00 | 10890.00 |
| No. cores & nominal cross sectional area of conductor | Current Rating | Voltage Drop | Maximum DC Conductor Resistance @ 20oC | Gross cross Sectional Area of Armour | Nominal Overall Diameter | Nominal Weight |
| Laid Direct | Single Way Ducts | Free Air | Three Phase ac |
| no x mm2 | Amps | Amps | Amps | mV / A/M | Ω / Km | mm2 | mm | Kg / Km |
| 3 x 1.50 | 32.00 | 26.00 | 26.00 | 27.00 | 12.10 | 16.00 | 12.50 | 324.00 |
| 3 x 2.50 | 42.00 | 34.00 | 35.00 | 16.00 | 7.41 | 19.00 | 13.70 | 392.00 |
| 3 x 4.00 | 55.00 | 45.00 | 47.00 | 10.00 | 4.61 | 20.00 | 14.80 | 478.00 |
| 3 x 6.00 | 69.00 | 56.00 | 59.00 | 6.80 | 3.08 | 23.00 | 16.00 | 573.00 |
| 3 x 10.00 | 92.00 | 75.00 | 82.00 | 4.00 | 1.83 | 39.00 | 18.50 | 868.00 |
| 3 x 16.00 | 119.00 | 96.00 | 107.00 | 2.50 | 1.15 | 45.00 | 20.80 | 1136.00 |
| 3 x 25.00 | 152.00 | 124.00 | 140.00 | 1.65 | 0.727 | 62.00 | 27.60 | 1865.00 |
| 3 x 35.00 | 182.00 | 149.00 | 172.00 | 1.15 | 0.524 | 68.00 | 30.90 | 2235.00 |
| 3 x 50.00 | 217.00 | 177.00 | 209.00 | 0.87 | 0.387 | 78.00 | 33.90 | 2735.00 |
| 3 x 7.00 | 266.00 | 218.00 | 263.00 | 0.60 | 0.268 | 90.00 | 35.70 | 3355.00 |
| 3 x 95.00 | 319.00 | 263.00 | 324.00 | 0.45 | 0.193 | 128.00 | 38.20 | 4580.00 |
| 3 x 120.00 | 363.00 | 300.00 | 376.00 | 0.37 | 0.153 | 141.00 | 41.60 | 5505.00 |
| 3 x 150.00 | 406.00 | 338.00 | 430.00 | 0.30 | 0.124 | 201.00 | 47.00 | 6950.00 |
| 3 x 185.00 | 458.00 | 382.00 | 495.00 | 0.26 | 0.0991 | 220.00 | 50.50 | 8295.00 |
| 3 x 240.00 | 529.00 | 442.00 | 584.00 | 0.21 | 0.0754 | 250.00 | 57.20 | 10455.00 |
| 3 x 300.00 | 592.00 | 496.00 | 666.00 | 0.185 | 0.0601 | 269.00 | 63.20 | 12660.00 |
| 3 x 400.00 | 667.00 | 570.00 | 766.00 | 0.165 | 0.0470 | 304.00 | 69.20 | 15575.00 |
| No. cores & nominal cross sectional area of conductor | Current Rating | Voltage Drop | Maximum DC Conductor Resistance @ 20oC | Gross cross Sectional Area of Armour | Nominal Overall Diameter | Nominal Weight |
| Laid Direct | Single Way Ducts | Free Air | Three Phase ac |
| no x mm2 | Amps | Amps | Amps | 27.00 | 12.10 | 17.00 | 13.30 | 367.00 |
| 4 x 2.50 | 42.00 | 34.00 | 35.00 | 16.00 | 7.41 | 20.00 | 14.70 | 454.00 |
| 4 x 4.00 | 55.00 | 45.00 | 47.00 | 10.00 | 4.61 | 22.00 | 16.00 | 556.00 |
| 4 x 6.00 | 69.00 | 56.00 | 59.00 | 6.80 | 3.08 | 36.00 | 18.20 | 783.00 |
| 4 x 10.00 | 92.00 | 75.00 | 82.00 | 4.00 | 1.83 | 42.00 | 20.00 | 1029.00 |
| 4 x 16.00 | 119.00 | 96.00 | 107.00 | 2.50 | 1.15 | 50.00 | 22.50 | 1367.00 |
| 4 x 25.00 | 152.00 | 124.00 | 140.00 | 1.65 | 0.727 | 70.00 | 29.90 | 2240.00 |
| 4 x 35.00 | 182.00 | 149.00 | 172.00 | 1.15 | 0.524 | 78.00 | 33.50 | 2705.00 |
| 4 x 50.00 | 217.00 | 177.00 | 209.00 | 0.87 | 0.387 | 90.00 | 37.10 | 3375.00 |
| 4 x 70.00 | 266.00 | 218.00 | 263.00 | 0.60 | 0.268 | 131.00 | 39.10 | 4560.00 |
| 4 x 95.00 | 319.00 | 263.00 | 324.00 | 0.42 | 0.193 | 147.00 | 43.00 | 5805.00 |
| 4 x 120.00 | 363.00 | 300.00 | 376.00 | 0.37 | 0.153 | 206.00 | 48.30 | 7430.00 |
| 4 x 150.00 | 406.00 | 338.00 | 430.00 | 0.30 | 0.124 | 230.00 | 52.40 | 8820.00 |
| 4 x 185.00 | 458.00 | 382.00 | 495.00 | 0.26 | 0.0991 | 255.00 | 56.60 | 10600.00 |
| 4 x 240.00 | 529.00 | 442.00 | 584.00 | 0.21 | 0.0754 | 289.00 | 64.30 | 13380.00 |
| 4 x 300.00 | 592.00 | 496.00 | 666.00 | 0.185 | 0.0601 | 319.00 | 70.70 | 16255.00 |
| 4 x 400.0 | 667.00 | 570.00 | 766.00 | 0.165 | 0.0470 | 452.00 | 80.30 | 21145.00 |
| No. cores & nominal cross sectional area of conductor | Current Rating | Voltage Drop | Maximum DC Conductor Resistance @ 20°C | Gross cross Sectional Area of Armour | Nominal Overall Diameter | Nominal Weight |
| Laid Direct | Single Way Ducts | Free Air | Three Phase ac |
| no x mm2 | Amps | Amps | Amps | mV / A/M | Ω / Km | mm2 | mm | Kg / Km |
| 5 x 1.50 | 32.00 | 26.00 | 26.00 | 27.00 | 12.10 | 19.00 | 14.40 | 416.00 |
| 5 x 2.50 | 42.00 | 34.00 | 35.00 | 16.00 | 7.41 | 22.00 | 15.90 | 500.00 |
| 5 x 4.00 | 55.00 | 45.00 | 47.00 | 10.00 | 4.61 | 25.00 | 18.10 | 725.00 |
| 5 x 6.00 | 69.00 | 56.00 | 59.00 | 6.80 | 3.08 | 40.00 | 19.70 | 879.00 |
| 5 x 10.00 | 92.00 | 75.00 | 82.00 | 4.00 | 1.83 | 46.00 | 21.90 | 1158.00 |
| 5 x 16.00 | 119.0 | 96.00 | 107.00 | 2.50 | 1.15 | 72.00 | 25.74 | 1727.00 |
| No. cores & nominal cross sectional area of conductor | Current Rating | Voltage Drop | Maximum DC Conductor Resistance @ 20oC | Gross cross Sectional Area of Armour | Nominal Overall Diameter | Nominal Weight |
| Laid Direct | Single Way Ducts | Free Air | dc | Single Phase ac |
| no x mm2 | Amps | Amps | Amps | mV / A/M | mV / A/ M | Ω / Km | mm2 | mm | Kg / Km |
| 7 x 1.50 | 38.00 | 31.00 | 31.00 | 31.00 | 31.00 | 12.10 | 20.00 | 15.30 | 463.00 |
| 7 x 2.50 | 49.00 | 41.00 | 41.00 | 19.00 | 19.00 | 7.41 | 24.00 | 17.00 | 584.00 |
| 7 x 4.00 | 65.00 | 53.00 | 55.00 | 12.00 | 12.00 | 4.61 | 39.00 | 19.50 | 852.00 |
| 12 x 1.50 | 38.00 | 31.00 | 31.00 | 7.90 | 7.90 | 12.10 | 39.00 | 20.00 | 791.00 |
| 12 x 2.50 | 49.00 | 41.00 | 41.00 | 4.70 | 4.70 | 7.41 | 45.00 | 22.50 | 1003.00 |
| 12 x 4.00 | 65.00 | 53.00 | 55.00 | 2.90 | 2.90 | 4.61 | 68.00 | 25.70 | 1443.00 |
| 19 x 1.50 | 38.00 | 31.00 | 31.00 | 1.85 | 1.90 | 12.10 | 45.00 | 22.90 | 1030.00 |
| 19Â x2.50 | 49.00 | 41.00 | 41.00 | 1.35 | 1.35 | 7.41 | 70.00 | 27.00 | 1525.00 |
| 19 x 4.00 | 65.00 | 53.00 | 55.00 | 0.98 | 1.00 | 4.61 | 80.00 | 29.60 | 1932.00 |
| 27 x 1.50 | 38.00 | 31.00 | 31.00 | 0.67 | 0.69 | 12.10 | 70.00 | 27.90 | 1534.00 |
| 27 x 2.50 | 49.00 | 41.00 | 41.00 | 0.49 | 0.52 | 7.41 | 84.00 | 31.60 | 1990.00 |
| 27 x 4.00 | 65.00 | 53.00 | 55.00 | 0.39 | 0.42 | 4.61 | 96.00 | 35.00 | 2552.00 |
| 37 x 1.50 | 38.00 | 31.00 | 31.00 | 0.31 | 0.35 | 12.10 | 78.00 | 30.70 | 1849.00 |
| 37 x 2.50 | 49.00 | 41.00 | 41.00 | 0.25 | 0.29 | 7.41 | 94.00 | 34.80 | 2435.00 |
| 37 x 4.00 | 65.00 | 53.00 | 55.00 | 0.195 | 0.24 | 4.61 | 138.00 | 40.10 | 3528.00 |
