Network Cable 100m/Reel 1 Pair Twisted with Shielded RS485 Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, RS485 Cable
- Conductor Material：Tinned Copper
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Stranded
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
Base Info
- Model NO.：RS485 cable
- Model：1 Pair Twisted with Shielded RS485 Cable
- Brand：Risun or OEM
- Insulation：HDPE
- Conductor：24 AWG Stranded (7X32) Tc Conductors
- Shielded 1：Aluminum Polyester Foil
- Shielded 2：Tinned Copper Braid Shield
- Drain Wire：24 AWG (7X32) Tc
- Transport Package：100m,Reel, 500m,Wooden Drum
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Model NO. RS485 cable Model 1 Pair Twisted with Shielded RS485 Cable Brand Risun or OEM Insulation HDPE Conductor 24 AWG Stranded (7X32) Tc Conductors Shielded 1 Aluminum Polyester Foil Shielded 2 Tinned Copper Braid Shield Drain Wire 24 AWG (7X32) Tc Transport Package 100m/Reel, 500m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
1 pair Twisted with shielded RS485 cableSpecifications
| cond. construction | 24 AWG Stranded (7X32) Tc |
| insulation | HDPE |
| core stranding | 2 cores twisted to a pair |
| Cores/Pairs | 2/1 |
| Drain wire | 24 AWG (7x32) TC |
| Shielded 1 | Polyester Tape/Al Foil |
| Shielded 2 | Tinned Copper Braid Shield |
| Jacket | PVC |
| Temperature | 80°C |
| Voltage Rating | 300V |
Suitable Applications
RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.
packing
1) packing lengths: 100m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
Company Profile

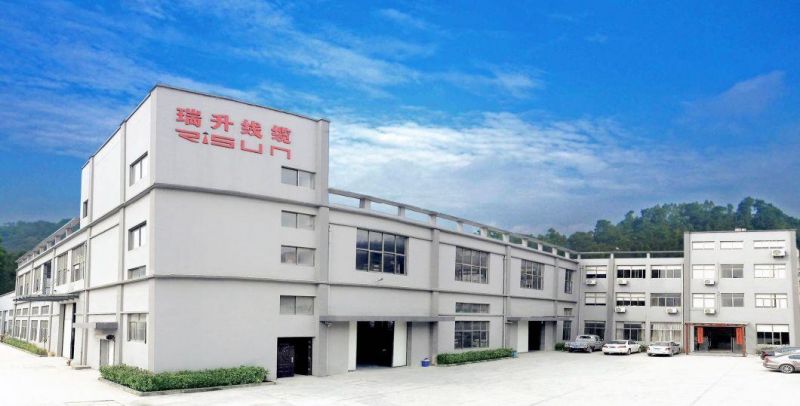

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
