Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：Cat 5e
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC
  • Model：FTP Cat5e
  • Brand：Hanli
  • Carton Size：28.5*28.5*29.5
  • Packing：305m Per Drum
  • Cable Outer Diameter：6.0mm
  • Conductor Options：Bc, CCA
  • Shielding：Aluminum Mylar
  • Transport Package：305m,Drum or Carton
  • Specification：8*0.5 CU+1.05 HDPE+AM+6.0 PVC
  • Trademark：HANLI
  • Origin：Zhejiang, Cn
  • HS Code：8544492100
  • Production Capacity：2000000m,Month

Description

Transmission PerformanceFrequency(MHz)Attenuation(Max)(dB/100m)Next(Min)    (dB/100m)PS Next(Min)(dB/100m)Elfext(Min)(dB/100m)Pselfext(Min)(dB/100m)RL      (Min)(dB)Phase Velocity(Min)(m/s)Phase delay(Max)(ns/100m)44.157545249230.604c552106.551484441250.612c545168.248454037250.614c543209.346433835250.615c54231.2511.743403431240.617c54062.517.039362825220.619c53910022.036332421200.620c538

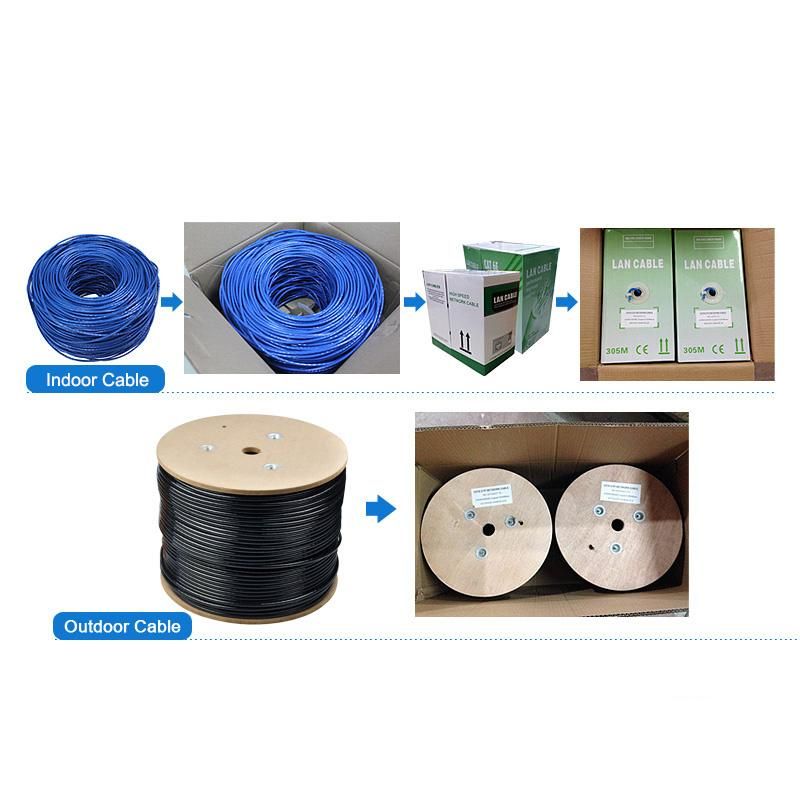

Packing
Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling

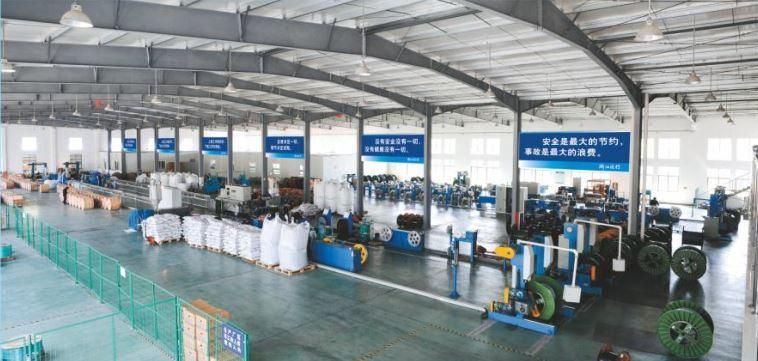

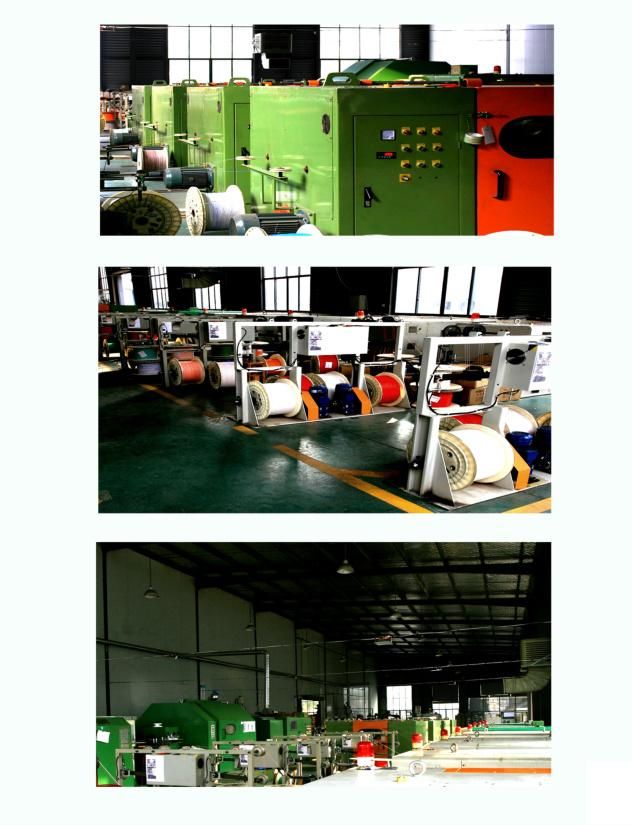

WORKSHOP
Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling

Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling

CERTIFICATES

Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling
Ethernet Category Cable Cat 5e FTP for Office Home Network Access Cabling

FAQ
Q:Are you a trading company or manufacturer?
A: We are a communication cable manufacturer, owning 3 factories, each factory specializes in one cable type-coaxial cable; category/ telephone cable;fiber optical cable

Q: Where do you locate?
A: We are in Hangzhou,which is near both to Ningbo and Shanghai Port. Here we have an  integrated supply chain that can help us cut the cost lower.

Q: Why should I trust you?
A:
  1. Our company has been established for over 20 years,and never stop innovation,
  2. Been awarded China Famous Brand, Provincial Star Product, and owns over 32 patents, multiple programs have been listed as National Torch Projects
  3. We have been doing export business for over 12 years, and experienced in handling all kinds of   cable international transactions
