• Model NO.：RG6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC
• Model：RG6
• Brand：Hanli
• Transport Package：100,200,305m Coil or Drum
• Specification：18AWG
• Trademark：HANLI
• Origin：Zhejiang
• HS Code：8544491100
• Production Capacity：2000000m,Month

Basic Info.

Model NO. RG6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC Model RG6 Brand Hanli Transport Package 100/200/305m Coil or Drum Specification 18AWG Trademark HANLI Origin Zhejiang HS Code 8544491100 Production Capacity 2000000m/Month

Product Description

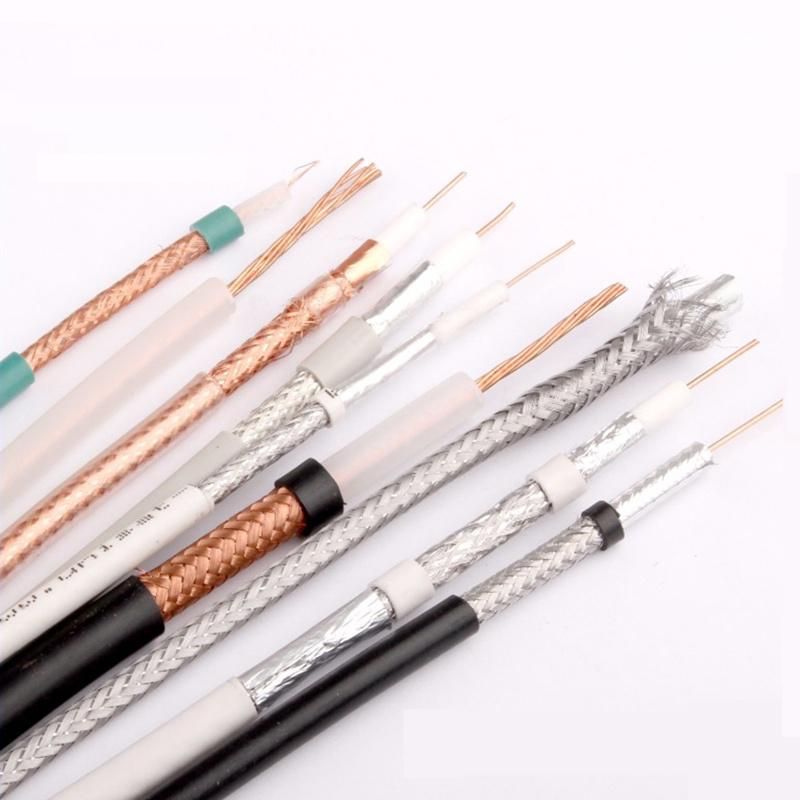

RG 6 COAXIAL CABLE
RG-6 is a common type of coaxial cable used in a wide variety of residential and commercial applications. An RG-6/U coaxial cable has a characteristic impedance of 75 ohms. The term, RG-6, is generic and is applied to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type. In practice, the term RG-6 is generally used to refer to coaxial cables with an 18 AWG (1.024 mm) center conductor and 75 ohm

Features:

• This cable is with central conductor of Copper Clad Steel (CCS)
• Due to the "Skin effect" CCS conductor is used for long distance trunk transmission, as it offers high strength, economy & longer life
• In this type of cable, outer copper layer takes care of high frequency signal transmission & Steel takes care of the load
• However it has higher conductor resistance due to steel at the center of conductor
• These cables withstand all mechanical abuses during operation and are extensively used in DTH & Drop Cable applications without power pass requirement

Other Details:

• These cables are used for transmission of Video and Audio signals and are used in DTH / CATV Industry
• The number of CATV channels increasing by the day
• These cables are ideal for such multi channel applications



RG6 CU Coaxial Cable, for LAN Data Transmission

Other Details:

• Finolex coaxial cable transmits high - frequency electrical signals through connectors without interference
• Co-axial Cable comes in types of verities
• First is RG6 used for the distribution of Cable TV and Satellite TV in residential or commercial premises
• Second RG11 is made for special purposes or very long runs and third RG59 probably isn't a good choice for your TV or internet connection
• Availability of Coaxial Cables in meters like 100M and 305M Coil

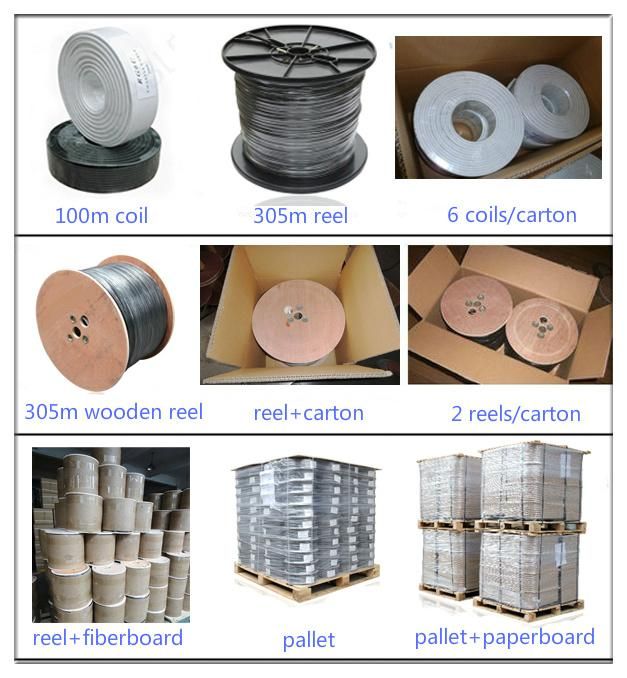

PACKING

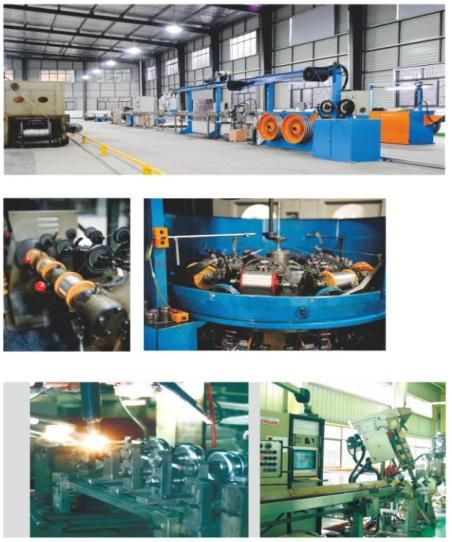

WORKSHOP




CERTIFICATES



FAQ
Q:Are you a trading company or manufacturer?
A: We are a communication cable manufacturer, owning 3 factories, each factory specializes in one cable type-coaxial cable; category/ telephone cable;fiber optical cable

Q: Where do you locate?
A: We are in Hangzhou,which is near both to Ningbo and Shanghai Port. Here we have an  integrated supply chain that can help us cut the cost lower.

Q: Why should I trust you?
A:

1. Our company has been established for over 20 years,and never stop innovation,
2. Been awarded China Famous Brand, Provincial Star Product, and owns over 32 patents, multiple programs have been listed as National Torch Projects
3. We have been doing export business for over 12 years, and experienced in handling all kinds of   cable international transactions

Q: Can I visit your company?
A: Sure, you are welcomed to visit our company at any time. Please call me at +86 18758199048 in advance, I will arrange a car to pick you up.
