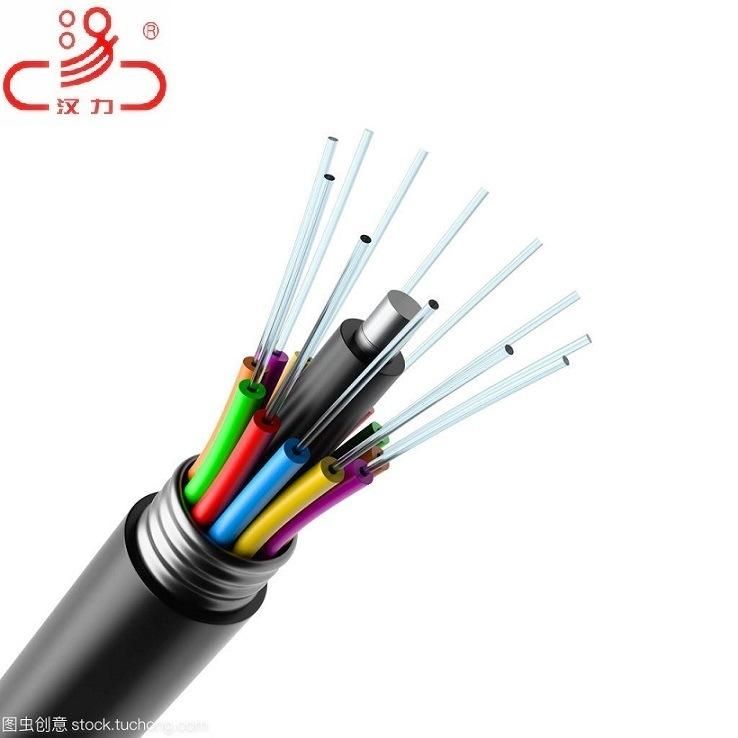

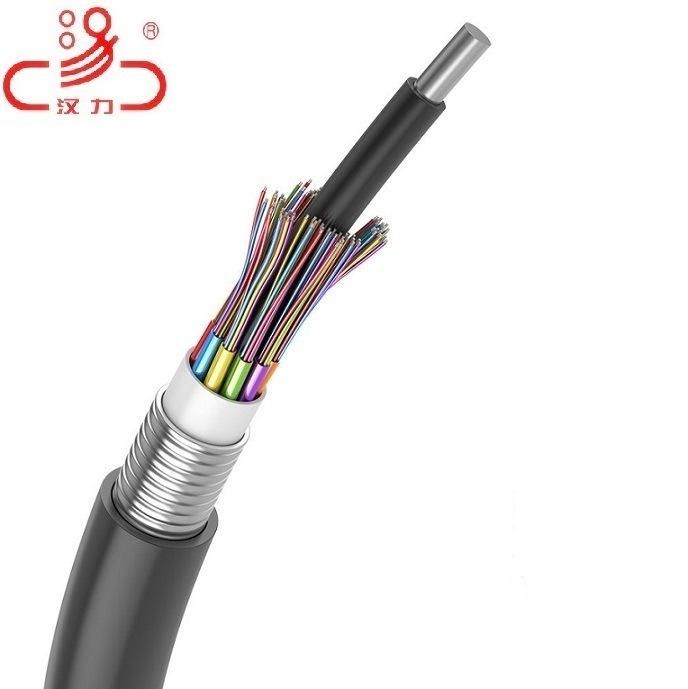

Central Loose Tube 2~12 Fiber Optical Fiber Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Fiber Optic Cable
  • Conductor Material：Optic Fiber
  • Cover Material：MDPE
  • Material Shape：Hollow Line
  • Conductor Type：Stranded
  • Wire Core Material：G652, G655, G657

Base Info

  • Certification：CE, ISO, RoHS, UL
  • Model：GYXTY
  • Brand：Hanxing
  • Number of Conductors：4
  • Fiber Number：2-12
  • Tube：Central Loose Tube
  • Strength Member：Steels Stranded
  • Transport Package：4km,Drum
  • Trademark：HANXIN
  • Origin：Zhejiang
  • HS Code：8544700000
  • Production Capacity：2000 Kilometer,Kilometers Per Week

Description



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20°C)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm
