• Model NO.：VCT
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Hongda
• Core：1 Core, 2 Core, 3 Core, 4 Core, 5 Core
• Rated Voltage：450,750V

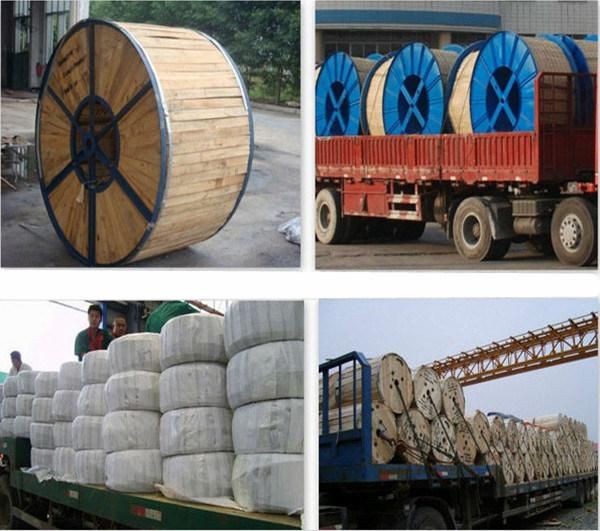

• Transport Package：500m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：800 Kilometers Per Month

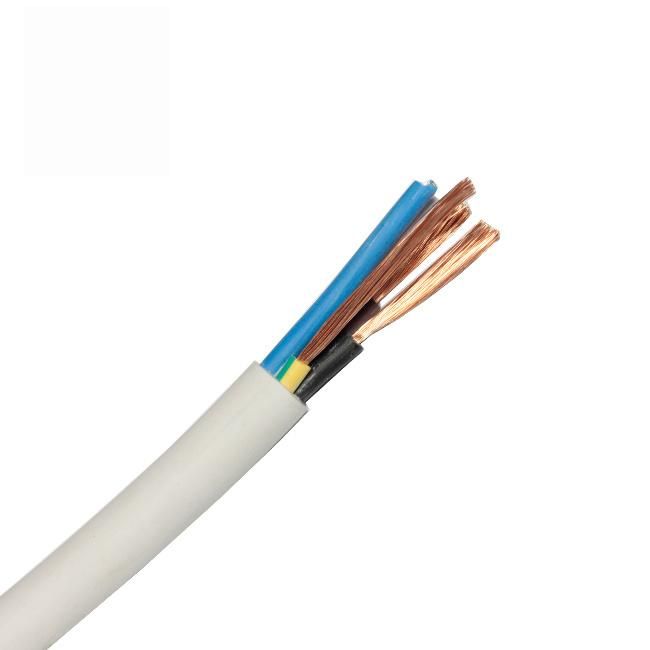

Construction:
Conductor : Bunch stranded annealed copper
Insulation : Polyvinyl chloride (PVC)
Color : Light blue, Brown, Black, Grey
Sheath : Polyvinyl chloride (PVC) BlackReference Standard: TIS 11 Part 101-2553

Classification: Maximum conductor temperature : 70°C Rated voltage : 450/750 V AC test voltage : 2,500 V



Application: Use for general purposes. Use for connecting electrical appliances

Applications

• Industrial use.

• Urban grids.

VCT cable is suitable for all types of low voltage industrial-type connections, in urban grids, building installations, etc. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring additional protection. This cable can withstand damp conditions including total immersion in water (AD7).

Flexible cable for fixed installation intended for the transport of energy and industrial indoor and outdoor connections in low voltage installations.
Its flexibility makes it a special cable for installations
with complex paths

Standard

International norm

• IEC 60332-1, TIS 11 Part 101-2553

Features

Size

mm2

Overall Diameter

mm

Weight

kg/km

Bending radius

mm

Current rating 40°C

Current rating 25°C1x1.55.7452519271x2.56.1602527361x46.7753037461x67.2953048581x108.21403567781x169.219540911001x2510.8285451221251x3511.9375501531501x5013.5515551881851x7015.6710652432251x9517.4920702982601x12019.41160803483001x15021.41435904043401x18523.31735954643801x24026.622901355524451x30030.228851556395001x40034.839201757485901x50039.150152008606701x63043.765852209907902x1.58.61003523272x2.59.41304032362x410.51704544462x611.62205057582x1013.53305578772x1615.5465651041002x2518.8700751351282x3521.2940851681542x5021.31160852041832x7024.716001002622242x9527.720751403202652x12031.326401603733022x15034.532551754303422x18537.839501904933832x24043.352202205834423G 1.59.01154023273G 2.59.91554032363G 411.12054544463G 612.32755057583G 1014.34156078773G 1616.5600701041003x2520.0900801151063x3522.71225951431293x5024.015551001741523x7029.221701502231873x9532.528051652712223x12036.735601853142533x15040.644152053632863x18544.353402254143203x24050.870503054893703x30064.1107053855654184G 1.59.91404020234G 2.510.91854529304G 412.22555038384G 613.53405549484G 1015.85256568644G 1618.37607591824x2522.41155901151064x3525.115601251431294x5027.520751401741524x7032.329001652231874x9535.637351802712224x12040.547702063142534x15044.558952253632964x18549.271902504143204x24056.494953404893705G 1.510.81704520235G 2.5

11.9

2255029305G 413.43105538385G 614.94206049485G 1017.56457088645G 1820.29258591825G 2524.614101001151065G 3527.819051401431295G 5032.526701651741525G 7039.640752002231875G 9544.653202252712225G 12050.467653053142535G 15055.78380335383288
