• Model NO.：3.3kV medium voltage power cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：YJV
• Brand：Hongda Cable
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)
• Transport Package：500m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544601200
• Production Capacity：15 Kilometers Per Day

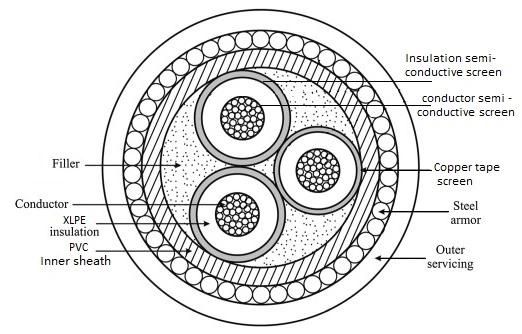

1. Construction Characteristics

Conductor material:Copper - IEC60228Conductor shape:16mm² & 25mm² - Circular 35mm² - Sector-shaped or Circular  50mm² up to 400mm² - Sector-shapedConductor flexibility:Stranded class 2Insulation:XLPE (Cross-linked Polyethylene) - IEC60502Inner sheath:PVC - IEC60502Armour type:Galvanized steel wiresOuter sheath:PVC - IEC60502Colour:BlackLead free:Yes

2. Electrical Characteristics

Rated Voltage Uo/U (Um):1900/3300 Volts - BS5467 IEC60502-1

Usage Characteristics

Minimum installation temperature:0°CMaximum installation temperature:+60°CInstallation type:Outdoor - Direct burialMinimum operating temperature:-15°CMaximum operating temperature:90°CShort-circuit max. conductor temperature:250°CFlame retardant:BS EN 60332 / IEC 60332-1Bending radius:8 x Overall diameter

3 Core: Brown, Black & Grey

Part NumberCross SectionStrandingApprox WeightApprox Overall DiameterGland SizeSingle CleatNom. Max. DC-resist conductor 20⁰ CCurrent Rating Direct in ground(mm²)(mm)KG/KM(mm)(mm) (Ohm/km)(Amp)         3.3SWAPVC3X163 x 167/1.70169029.2321.21.15753.3SWAPVC3X253 x 257/2.14217032.3321.40.727963.3SWAPVC3X353 x 357/2.52255035.0401.40.5241153.3SWAPVC3X503 x 5019/1.78313034.8401.40.3871353.3SWAPVC3X703 x 7019/2.14391038.0401.60.2681673.3SWAPVC3X953 x 9519/2.52484541.450s1.80.1931973.3SWAPVC3X1203 x 12037/2.03618545.6450s1.80.1532233.3SWAPVC3X1503 x 15037/2.25719548.4502.00.1242513.3SWAPVC3X1853 x 18537/2.52845551.7550TC90.09912813.3SWAPVC3X2403 x 24061/2.251048556.763sTC90.07543243.3SWAPVC3X3003 x 30061/2.521248560.9563TC100.06013653.3SWAPVC3X4003 x 40061/2.851537066.275sTC110.0470-

4. Conditions of installation:

Ambient air temperature:                    30 °C

Ground temperature:                           20 °C

Maximum conductor temperature:      90 °C

Where a conductor operates at a temperature exceeding 70 °C it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature (see Regulation 512.1.2).

Where cables in the above table are connected to the equipment or accessories designed to operate at a temperature not exceeding 70 °C, the current rating given in the equivalent table for 70 °C thermoplastic insulated cables (Table 4D4A) must be used (also see Regulation 523.1).

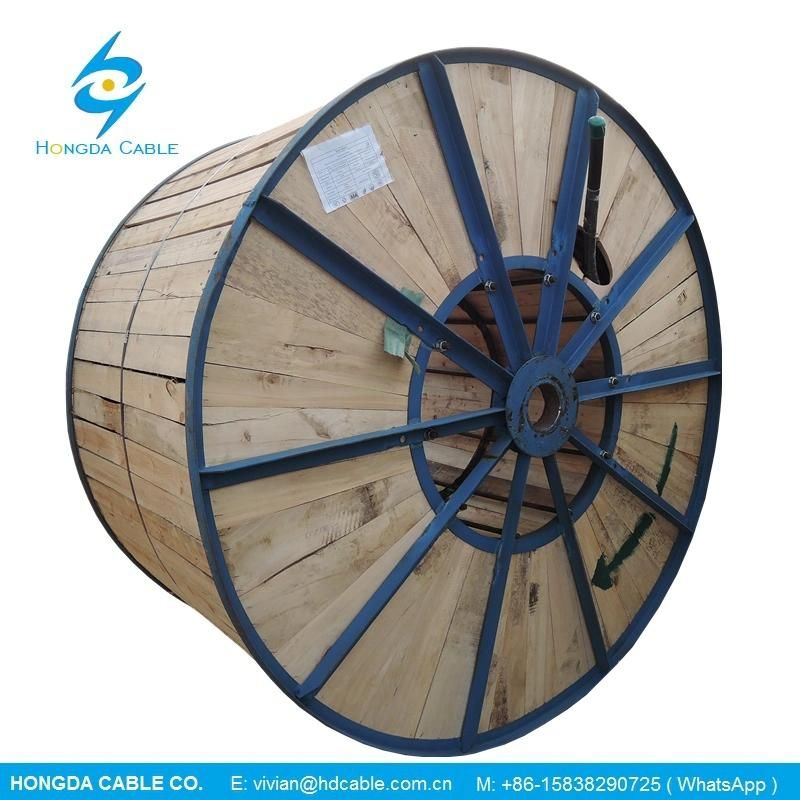

5. Packing & Shipping:




6. Why Choose Us ?

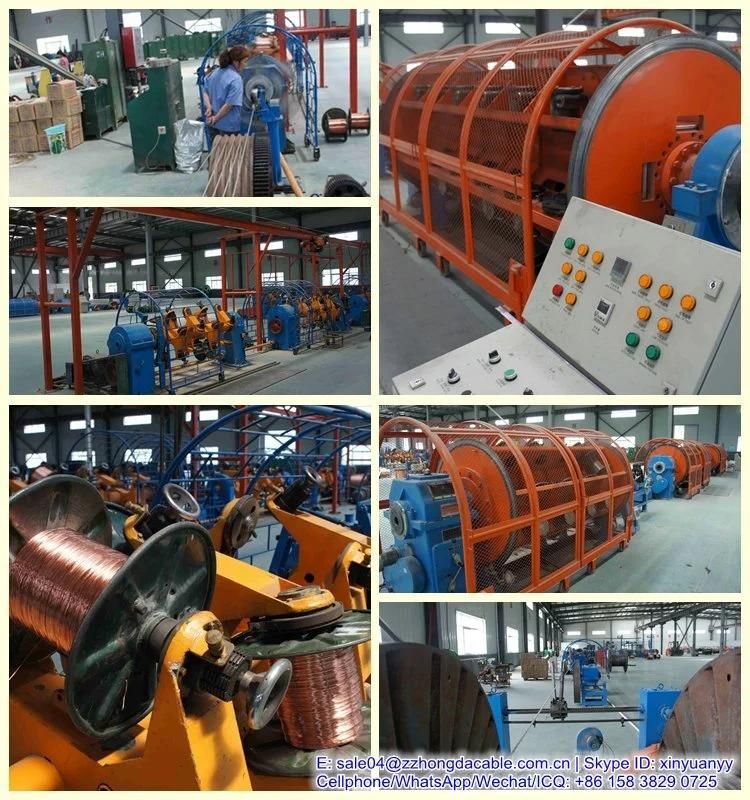

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas.


7. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
