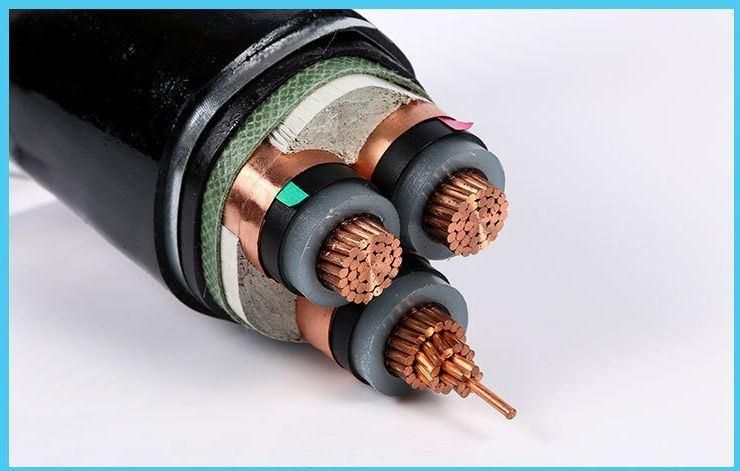

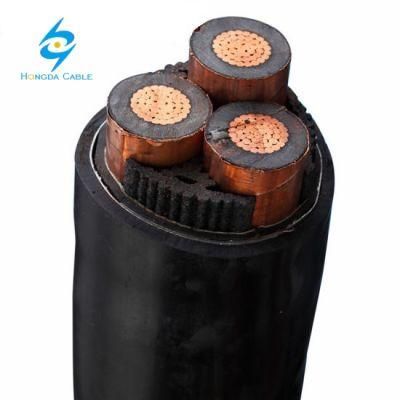

Cu 24kv Cyaby-F 3X240 mm2 Steel Reinforced Electrical Power Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：CYABY-F
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Yjv22
- Brand：Hongda
- Inner Semi-Conductive Layer：Semi-Conductive Material
- Insulation：XLPE (Cross-Linked Polyethylene)
- Outer Semi-Conductive Layer：Semi-Conductive Material
- Screen：Copper Tape
- Sheath：PVC (Polyvinyl Chloride)
- Transport Package：500m Per Drum
- Specification：25 - 630 sq. mm
- Trademark：Hongda
- Origin：China
- HS Code：8544601200
- Production Capacity：10 Kilometers Per Day
Description
No. of CoresNominal Cross Sectional Area mm² NOMINAL OVERALL
DIAMETER Nominal Weight Conductor
mm² Copper Wire Screen
mm² mm kg/km 3 35 RM/16 49 2600 3 50 RM/16 51 2900 3 70 RM/16 55 3350 3 95 RM/16 58 4200 3 120 RM/16 62 5050 3 150 RM/25 66 6000 3 185 RM/25 69 7200 3 240 RM/25 75 9000
3. Current Carrying CapacityNO. OF
CORESNominal Cross Sectional Area Current Carrying Capacity Conductor
mm² Copper Wire Screen
mm In Ground
Amps In Air
Amps 3 35 RM/16 213 213 3 50 RM/16 220 236 3 70 RM/16 261 265 3 95 RM/16 312 322 3 120 RM/16 355 370 3 150 RM/25 399 420 3 185 RM/25 451 481 3 240 RM/25 523 566
