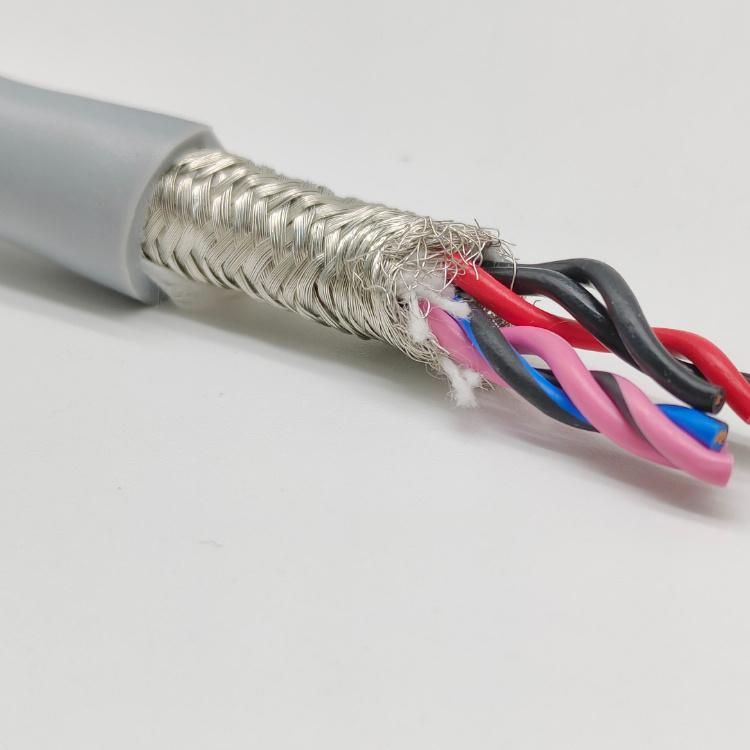

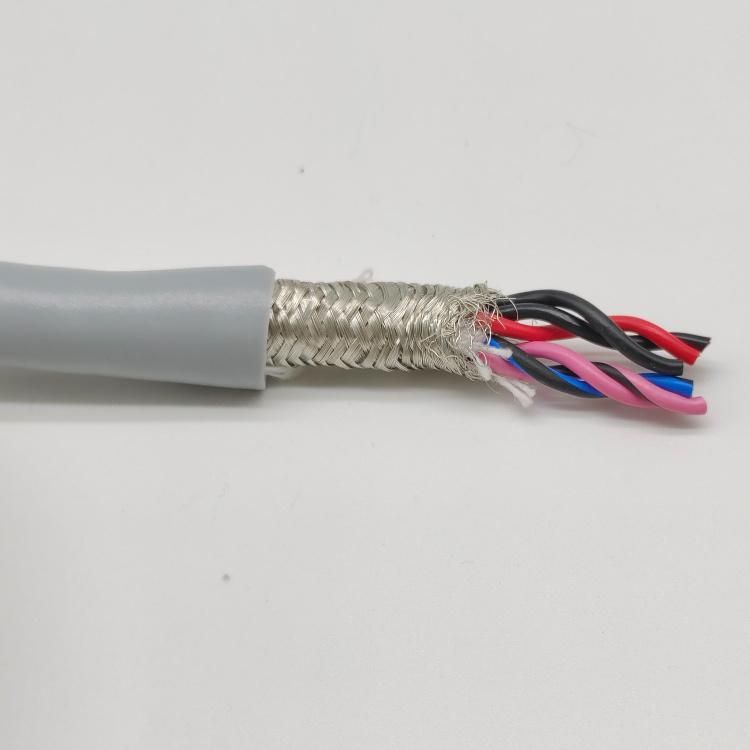

Flexible Paired PUR Data Cable with Overall Copper Screen SD 90 C Tp Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：SD 90 C TP Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFlexible Paired PUR Data Cable with Overall Copper Screen SD 90 C TP Cable ConductorBare copper stranded condutorInsulationPVCStrandingSpecially adjusted layering with non-woven tape over each layerInner sheathPVCScreenTinned copper braidingWrappingNon-woven tapeOuter sheathPURCore numberMulticores (As client's requirement)Peak operating voltagemax. 350 V acc. to VDE 0812Testing voltage

Core/core 1500 V

Core/screen 1200 V

Min. bending radius fixed Continuously flexible: 7,5 x dTemperature range

Fixed laying: -30/+70°C

Flexible application: +5/+70°C

ApplicationThe twisted pair cable is a continuously flexible PUR data cable with overall copper screen and good chemical resistance. This cable with increased efficiency due to the permanent use with millions of bending cycles is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.
