2yslcyk-J Cable 4X10mm2 4X16mm2 4X25mm2 Electric Copper Wire

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：2YSLCYK-J Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

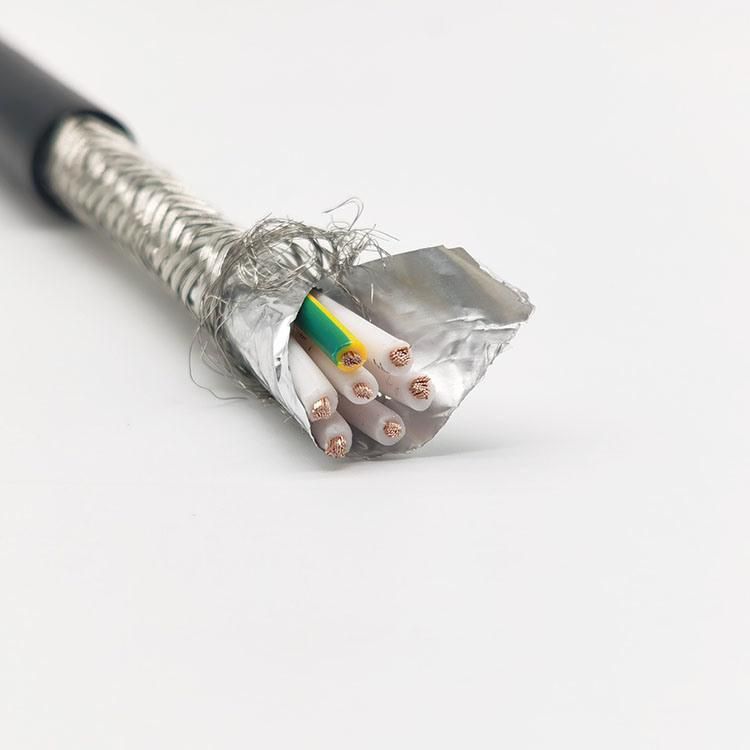

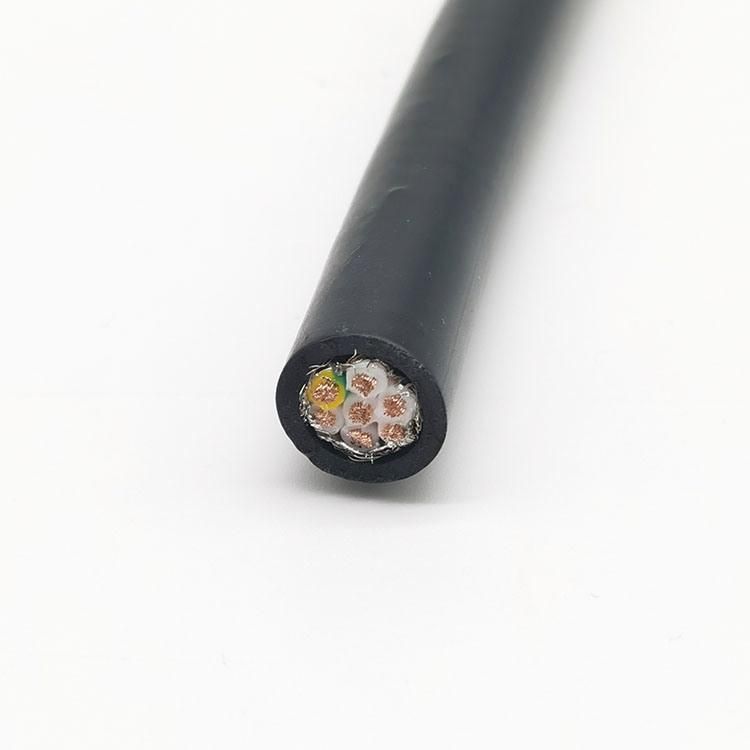

Item2YSLCYK-J Cable ConductorAnnealed copper wiresInsulationPEScreeningFirst screening with special aluminum foil
Second screening with tinned copper braiding, coverage approx. 80%Outer SheathPVCCore NumberMulti-coresNominal Voltage600 / 1000 VMax.conductor temp.in service90 °CTemperature rangeFlexing from -5°C to +70°C
Fixed from -40°C to +70°CColorOptionalApplicationThis motor power supply cable for frequency converters ensures electromagnetic compatibility in industrial buildings, facilities with operating equipment where electromagnetic interference might negatively influence surroundings. The cable is also suitable as supply and connecting cable for medium mechanical stress in fixed installation and forced movements in dry, moist and wet environments. The cable is suitable for open-air use. The cable is used in automotive industry, food industry, packaging, tool making machinery, handling technics, as a connecting cable to industrial pumps, ventilators, conveyor belts and air-conditioning installation. The optimal screening of those cables ensures an interference-free operation of frequency converters.
