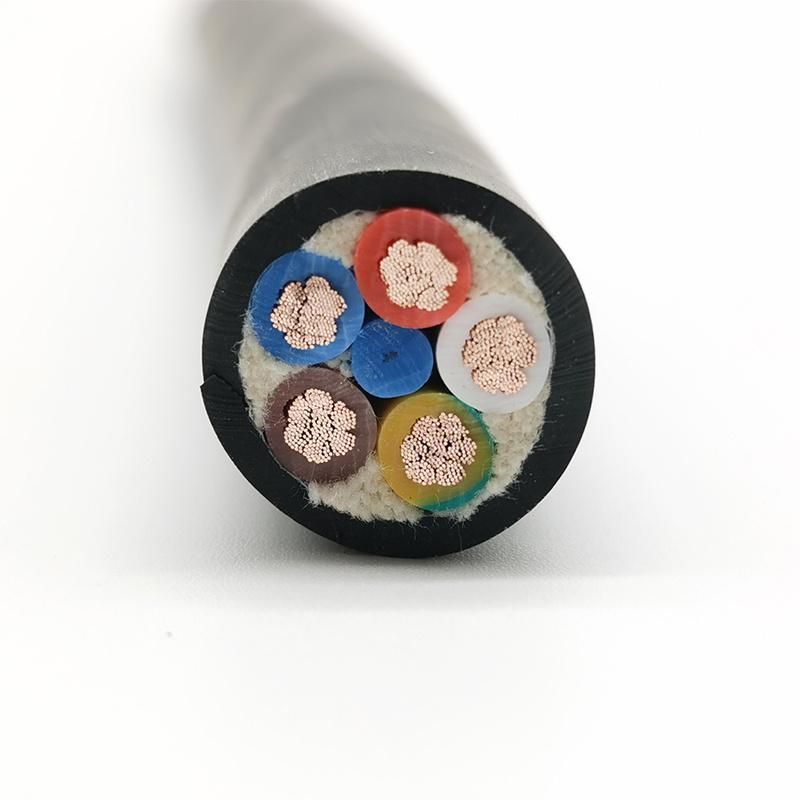

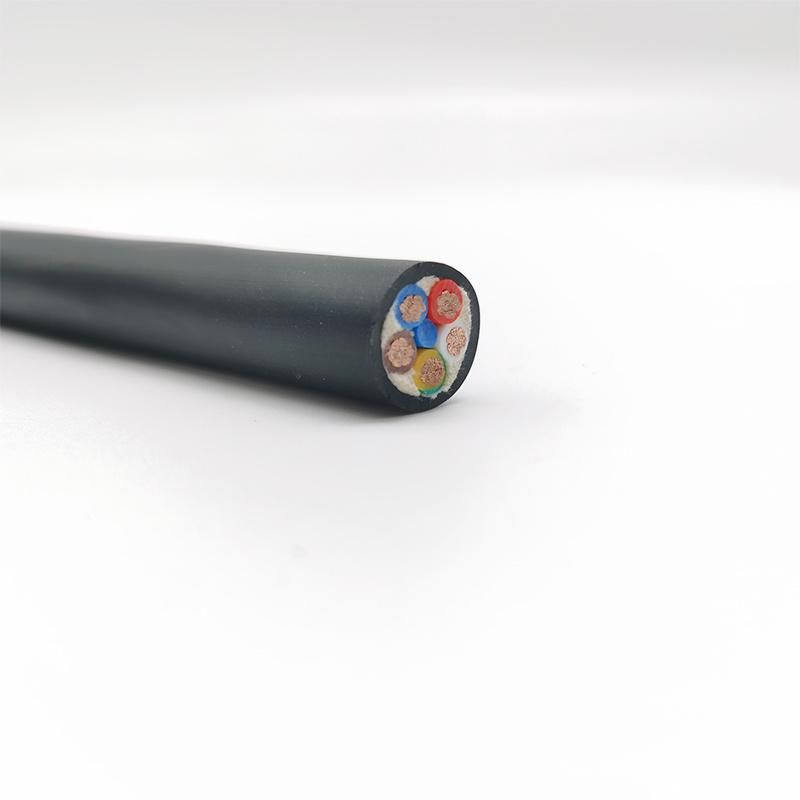

Sihf Heat and Coldness Resistant Power and Control Cable Halogen-Free

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Silicone
  • Insulation Material：Silicone

Base Info

  • Model NO.：SIHF
  • Material Shape：Round Wire
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHalogen-free SIHF Heat and Coldness Resistant Power and Control Cable Conductorcopper strand tinnedInsulationSiliconeOuter SheathSiliconeFillerOptionalNominal VoltageUo/U: 300/500 VOperat. temp. fixed min/max -60 °C / +180 °C; short-time: +200 °CTemp. at conductor+180 °CTemperature RangeFixed: -20°C to +90°C
Flexed: -5°C to +50°CHalogen freeHalogen-free acc. to IEC 60754-1ColorOptionalCertificationCESpecial Features• Largely resistant to acids, basis and special types of oil
• Approved for conductor temperature class "H" up to +180 °C
• No flame conduction in case of fire, insulation integrity and low smoke density
• Silicone is resistant to ozone, oxygen, sea water and weather-proofed
• Above +100 °C and with exclusion of air, the mechanical properties of silicone cables will be reduced early, adequate ventilation should be ensuredApplicationHeat and coldness resistant power, control and connecting cable in electrical facilities, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.
