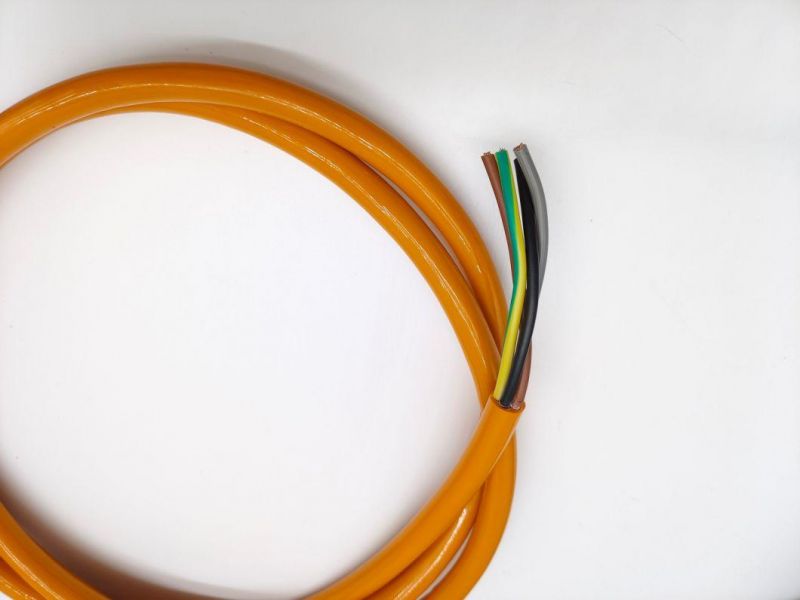

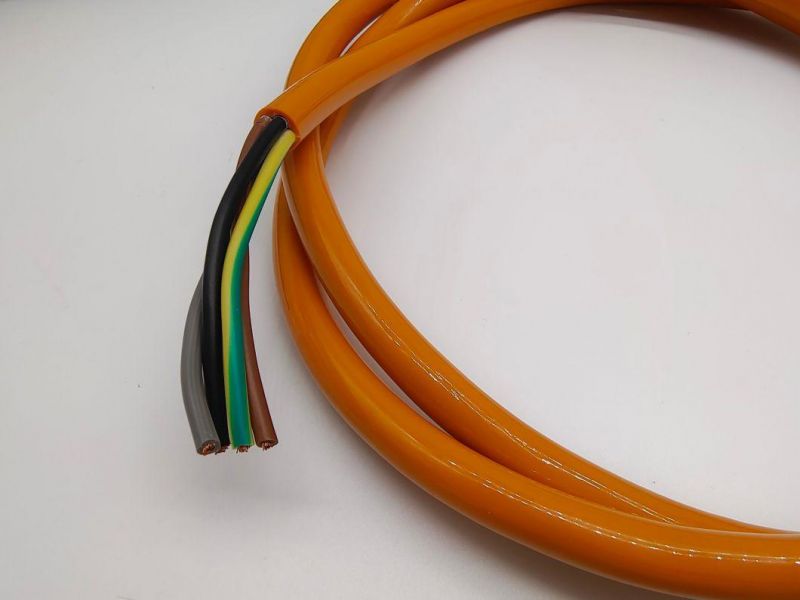

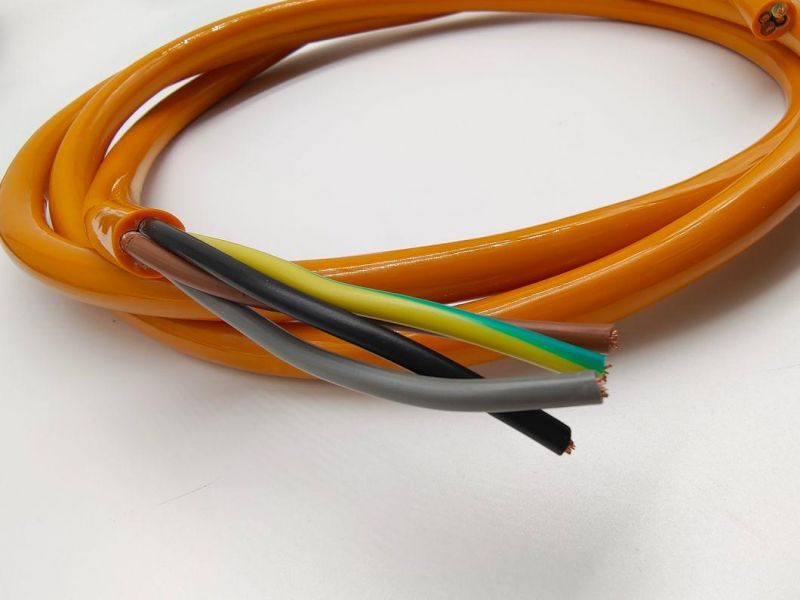

Oil-Resistant Jz-500-Orange Control Cable PVC 3G 1mm2 /1.5 mm2 / 2.5mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：JZ-500-ORANGE
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemOil-resistant JZ-500-ORANGE Control Cable PVC 3G 1mm2 /1.5 mm2 / 2.5mm2ConductorCopper wire bareInsulationPVC, compound type Z 7225Outer SheathPVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)Nominal voltageAC U0/U 300/500 VTest voltage core/core4000 VBreakdown voltage8000 VTemperature RangeFlexible -15°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCE

Properties

Largely resistant to: oil,For details, see "Technical Information"The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersApplicationUsed for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a control cable acc. to EN 60204-1 or VDE 0113-1. According to this standard, it is recommended that insulated conductors of interlocking power circuits supplied by an external power supply that remain live when the main switch is turned off, are marked in orange.
